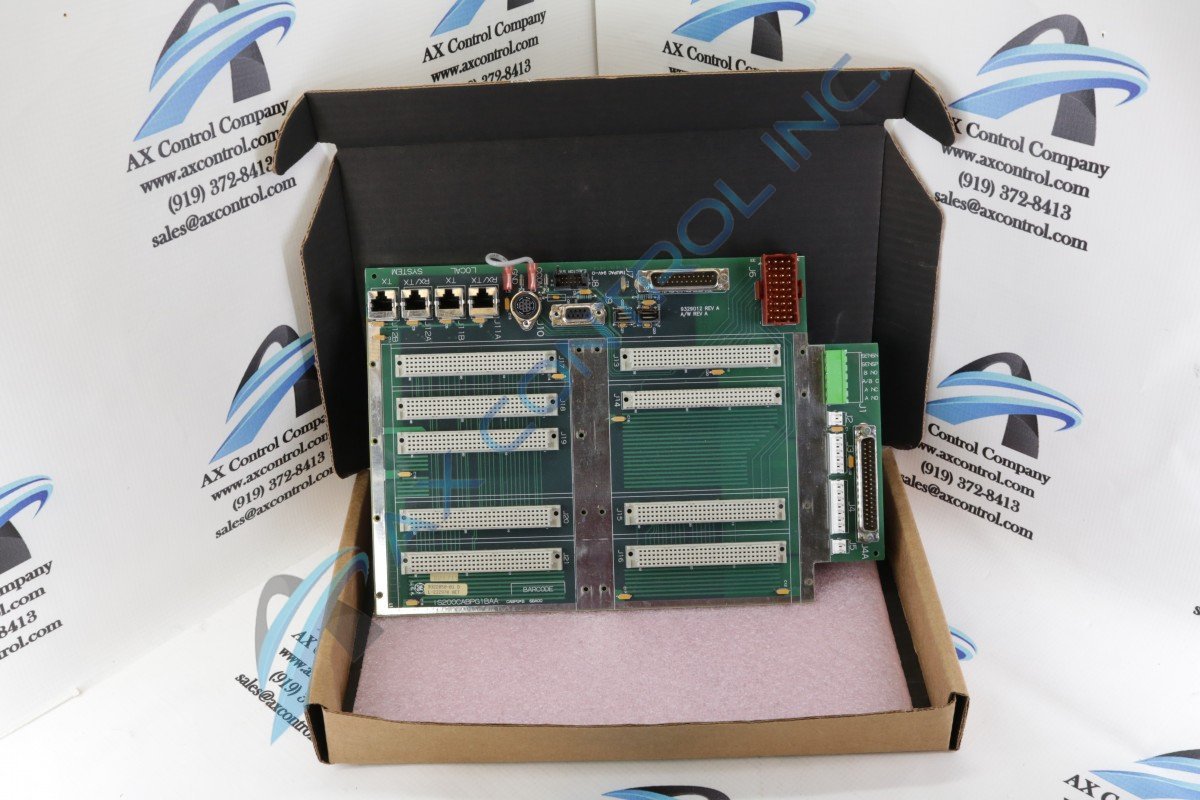

GE IS200CABPG1BAA is a Control Assembly Backplane (CABP) for Innovation Series.

AVAILABILITY:

IN STOCK
SHIPS TODAY

3 Year Warranty: Learn More
Sell Surplus: Have a IS200CABPG1BAA to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: IS200CABPG1BAA
  • SKU: IS200CABPG1BAAGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark VI IS200

IS200CABPG1BAA

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.50 (2)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.50 (2)
  • Click a star to rate this product
GE IS200CABPG1BAA is a Control Assembly Backplane (CABP) for Innovation Series.

AVAILABILITY:

IN STOCK
SHIPS TODAY

3 Year Warranty: Learn More
Sell Surplus: Have a IS200CABPG1BAA to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: IS200CABPG1BAA
  • SKU: IS200CABPG1BAAGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark VI IS200

Product Description



The IS200CABPG1BAA is a Control Assembly Backplane (CABP) made by General Electric for its Innovation Series.

The IS200CABPG1BAA is typically a replacement board for the backplane on an Innovation series rack assembly. The rack is not provided with this board and is sold separately. The rack provides additional installation points for the boards that are being installed. Other PCBs are plugged into the 5 slots on the IS200CABPG1BAA and are allowed to interact and interface with external signals. Connections to these external interfacing components are provided with this board. These connections include ISBus ports, power supply inputs, diagnostic tools, a front panel keypad, and front panel meters.

The IS200CABPG1BAA has plugs that are designed to not allow non-board connections to accidentally be plugged into the wrong jack. The PCBs being plugged into the backplane should be installed carefully because while they do use different connections that are individually keyed, it is easy to damage the board by sliding it into the wrong slot. Slot 1 on the backplane is assigned to the BAIA board. Slot 2 is assigned to the DSPX board. Slot 3 is designated for the ACL_ board to the GBIA/PBIA modules. Slot 4 is for the BIC_ board. Slot 5 is meant to be for a BPI_ or FOSA board. There are two stab-on connectors that are labeled E1 and E2 that go to GND. There are two other stab-on connectors labeled E3 and E4 that go to CCOM. There are 21 jumpers on this board. J1-J12 jumpers are external interfaces. J13-J21 are the actual card slots on the backplane.

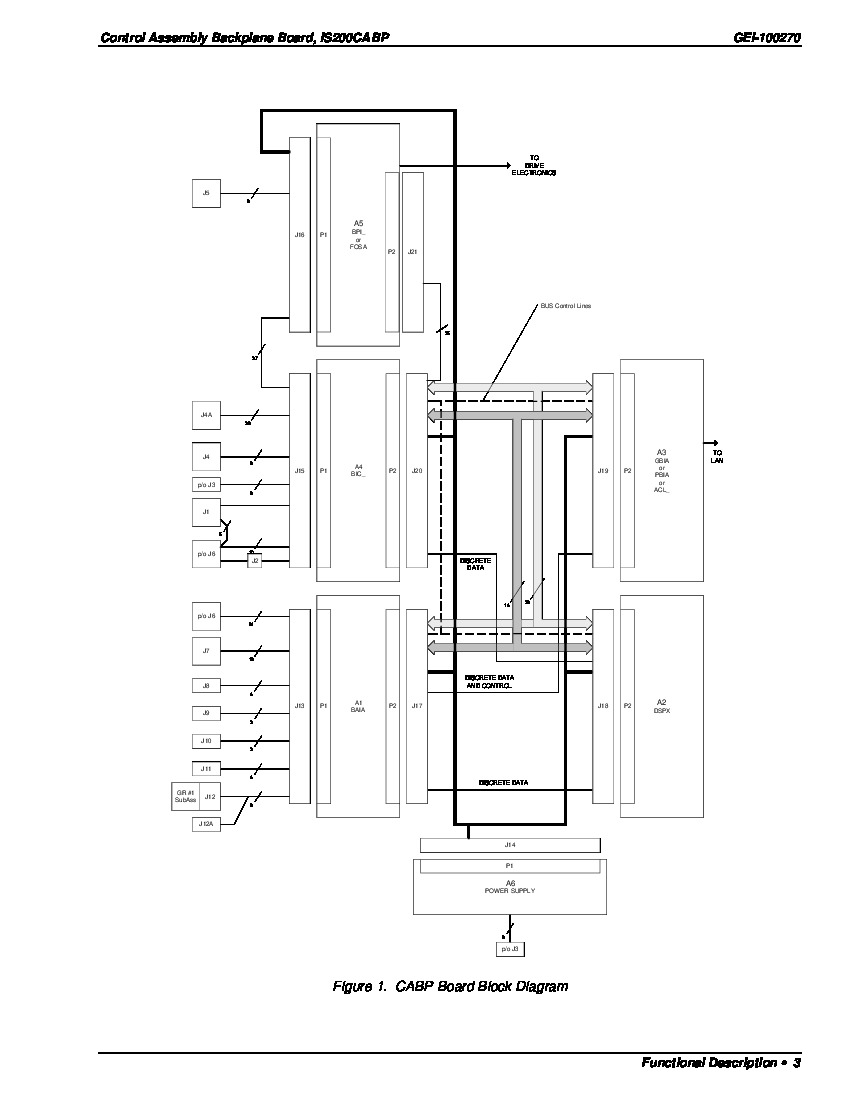

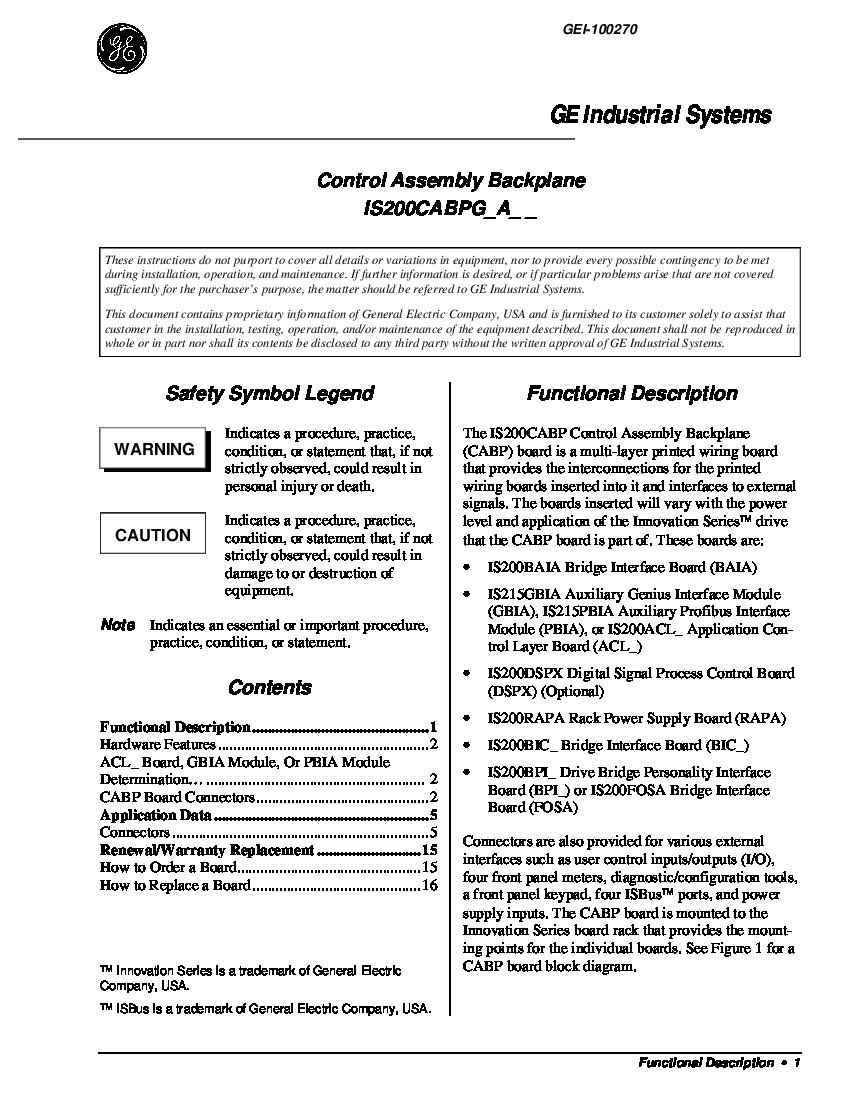

Please refer to GEI-100268A for more information about this board.

Reviews For IS200CABPG1BAA
Internal Review

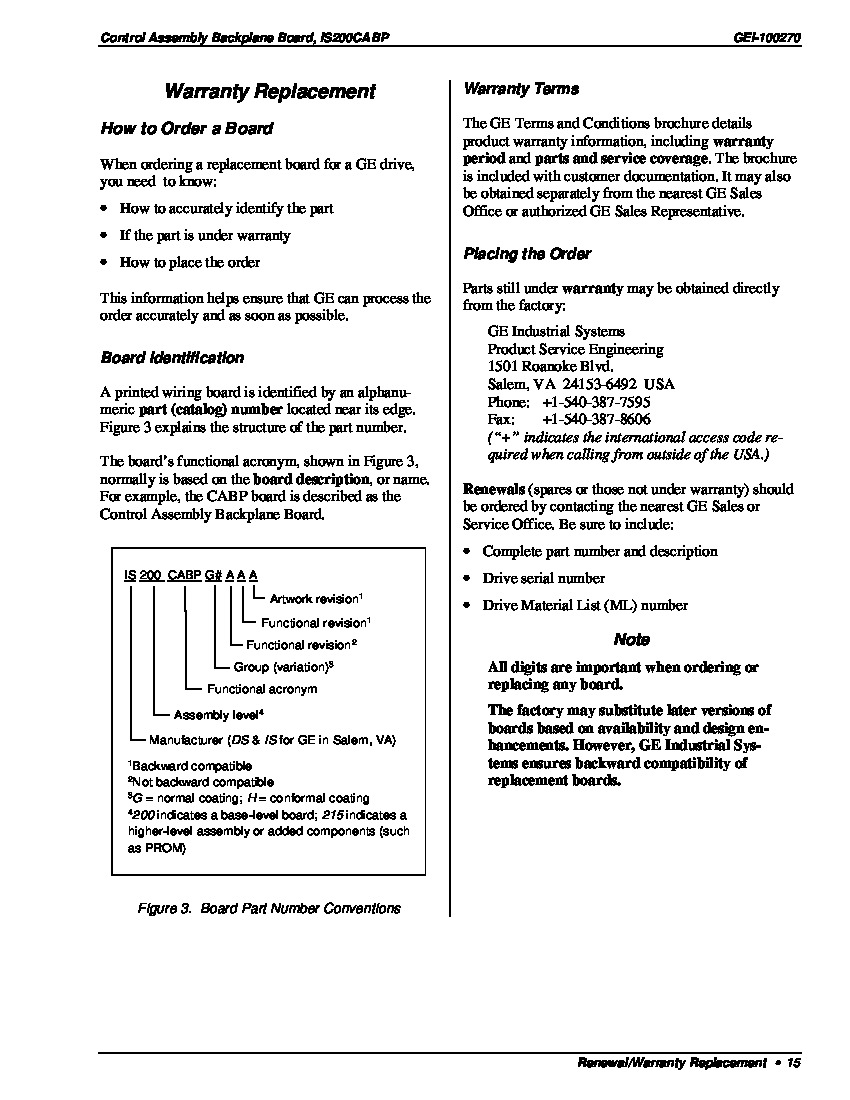

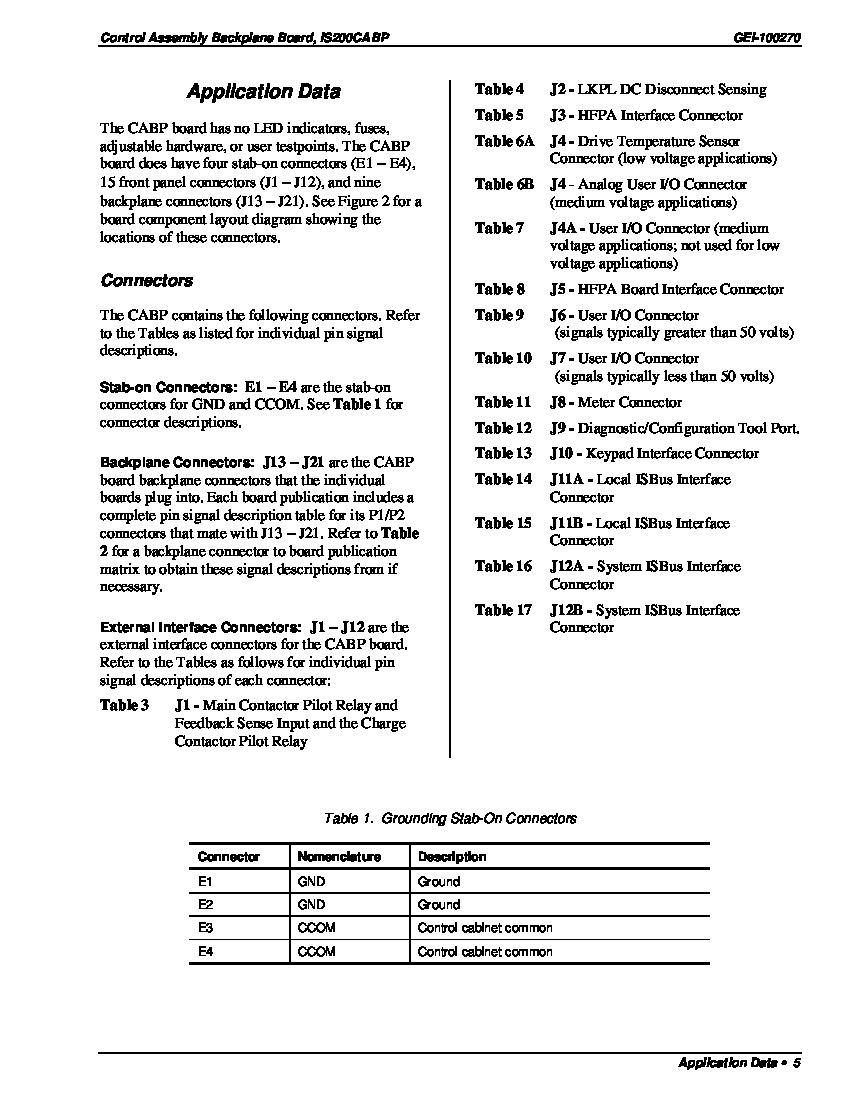

The CABP board offers twelve external interface connectors. These are marked J1 through J12. External connectors are used for user I/O, meter connectors, diagnostic and configuration tools, keypad interfaces, local ISBus interface, and system ISBus interface. For a full description of these interfaces, refer to associated manuals. Each individual connector has a separate description. --AX Control Tech Team.

Repair Services For IS200CABPG1BAA

Type Lead Time Price Action
Repair Service 1-2 weeks $1060

Our highly skilled technicians can repair your IS200CABPG1BAA. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More
