GE Innovation Series Control Assembly Backplane (CABP)

AVAILABILITY:

IN STOCK
SHIPS TODAY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a IS200CABPG1A to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

IS200CABPG1A

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (2)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (2)
  • Click a star to rate this product
GE Innovation Series Control Assembly Backplane (CABP)

AVAILABILITY:

IN STOCK
SHIPS TODAY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a IS200CABPG1A to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Product Description

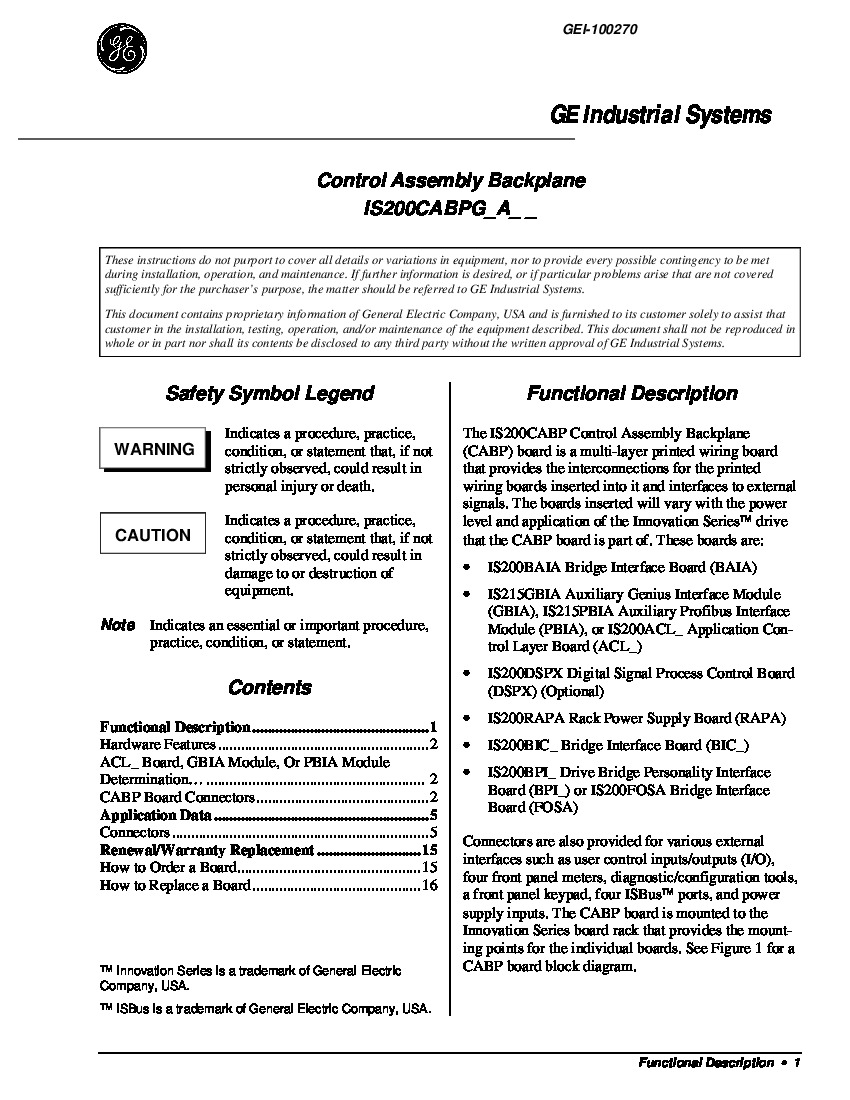

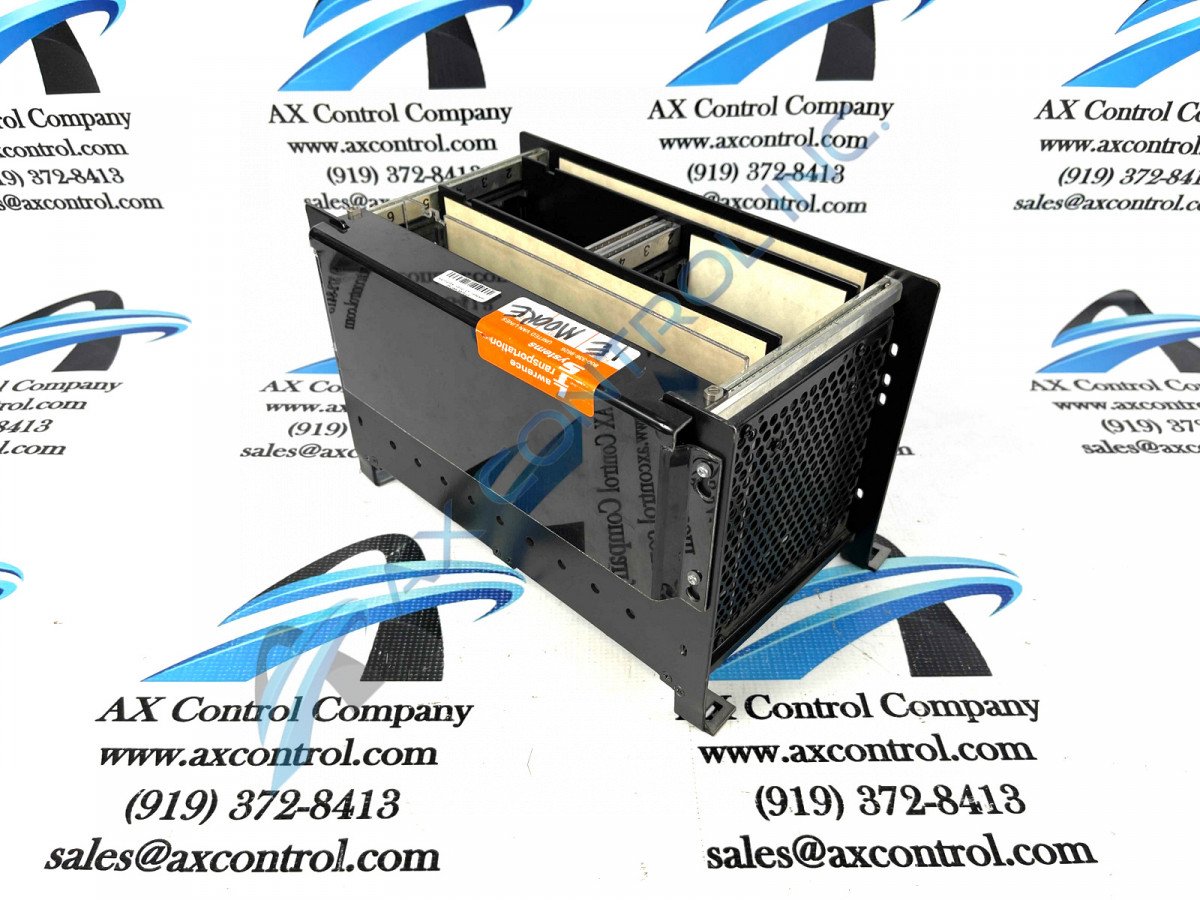

The IS200CABPG1A is a Control Assembly Backplane PCB for a GE Innovation Series drive.

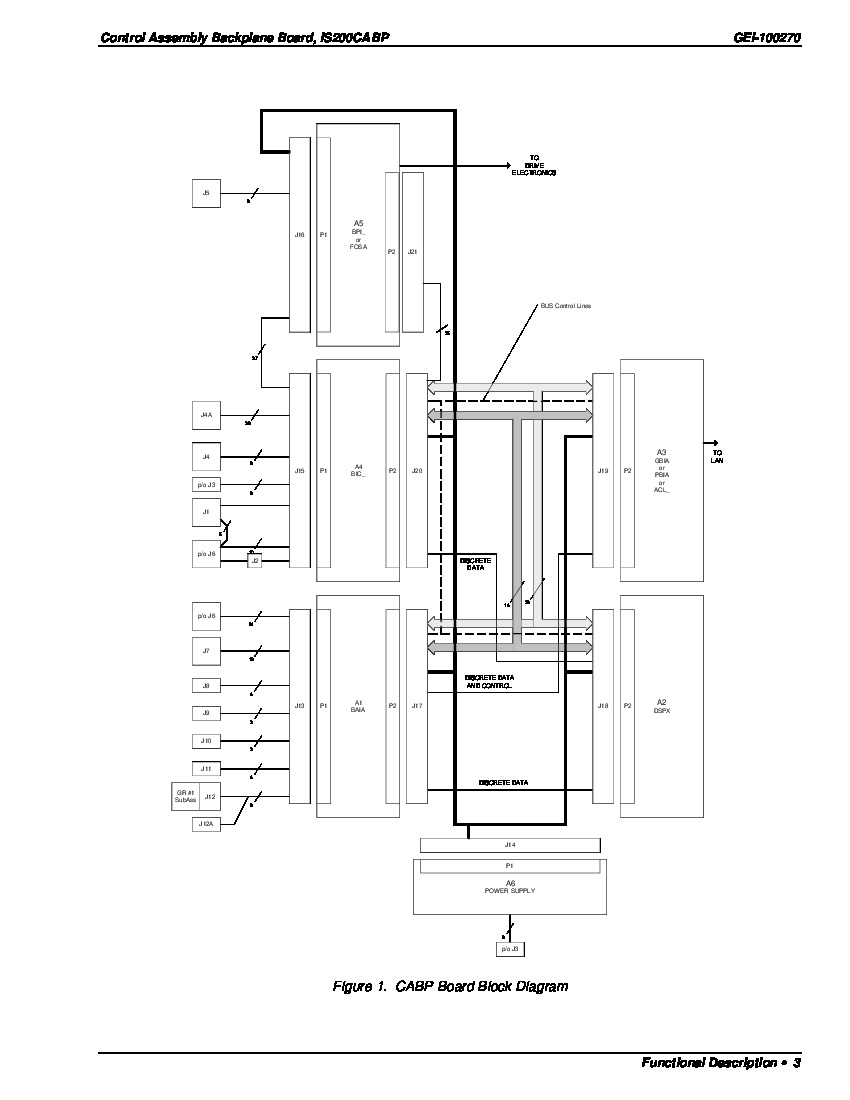

The IS200CABPG1A is also called a CABP board and serves as a replacement for the backplane of an Innovation Series card rack. This card typically is used as an interfacing unit. It features card slots that other boards can be plugged into. These boards can then interact and interface with external signals. Some of these external signals include those coming from diagnostic tools, the user interface keypad, panel meters, ISBus ports, or inputs coming from the power supply. The CABP is normally installed on an Innovation Series card rack assembly. The rack, which is sold separately, has installation points for the other PCBs being plugged into the CABP.

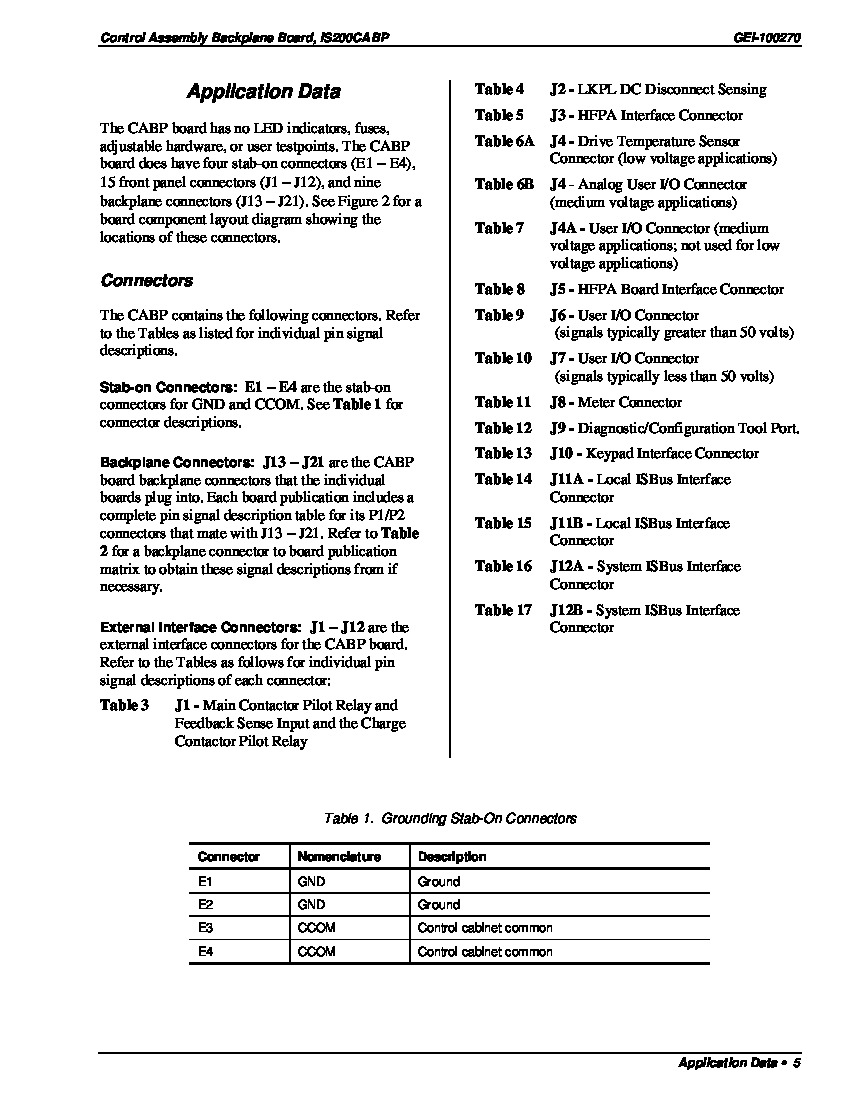

The IS200CABPG1A’s non-board connections are designed so they cannot accidentally be plugged into the wrong connector. The board connections on the CABP are designed similarly so that each card slot is individually keyed for specific boards. Knowing where each board goes on this PCB is vital because attempting to force a card into the wrong slot could end up damaging both the board and the card slot. There are nine connections that equal to five slots on the board. Slot 1 is assigned to a BAIA board. Slot 2 is assigned to a DSPX PCB. Slot 3 is assigned to either an ACL_ board or GBIA/PBIA modules. Slot 4 is assigned to a BIC_ card. Slot 5 is assigned to either a BPI_ or FOSA card. There are two stab-on connections labeled E2 and E1 that go to GND. The E4 and E3 stab-on connections are for CCOM. The J1-12 connections are for external interfaces while the J13-J21 connections are the card slots.

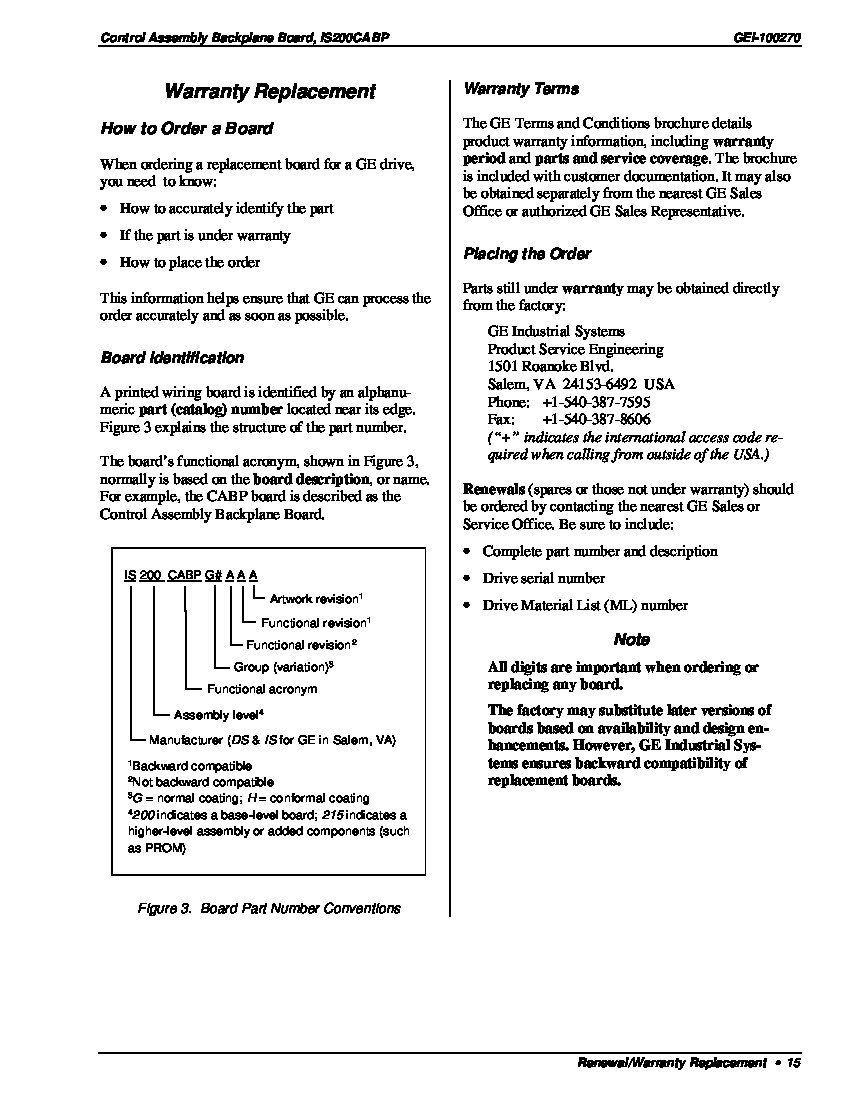

Reviews For IS200CABPG1A
Internal Review

This Mark VI CABP Control Assembly Backplane is used within Innovation Series drives. The board can interface with a variety of different boards depending on the power level and application needs. Because of this, the board has been designed with various board options, as well as for various external interfaces like user control I/O. This board most often interfaces with the IS200BAIA, the IS215GBIA, the IS200DSPX, the IS200RAPA, the IS200BIC_, and the IS200BPI_. Refer to associated GE manuals for more information. --AX Control Tech Team.
