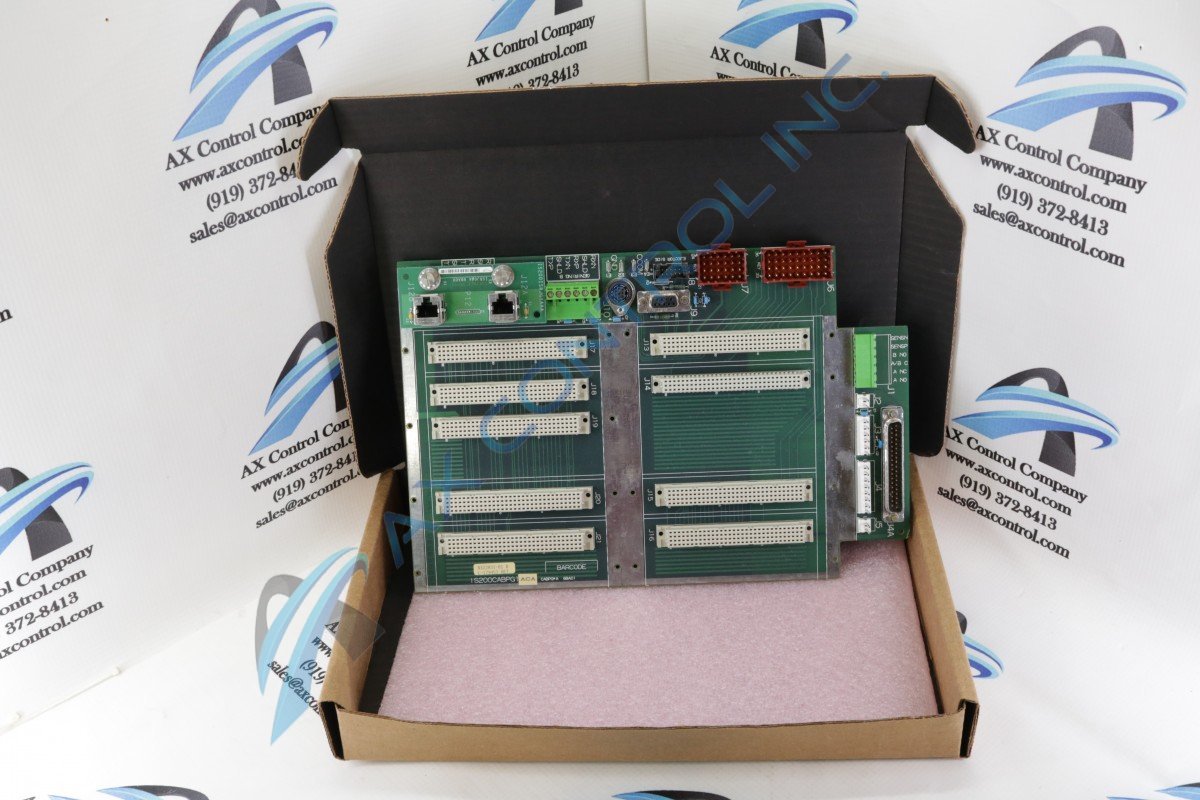

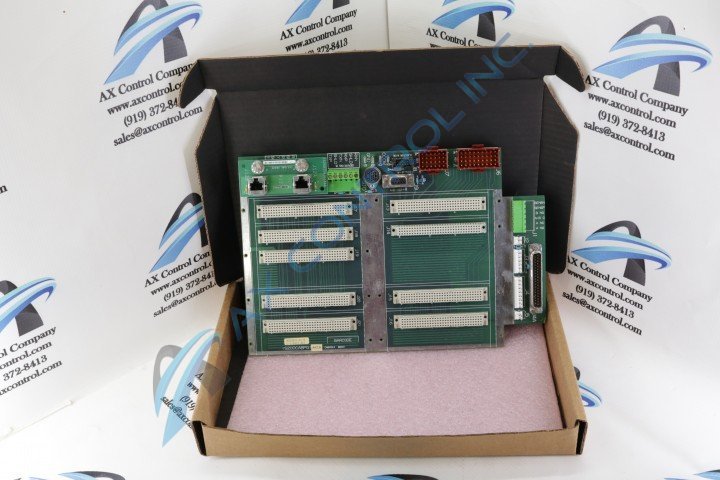

The IS200CABPG1ACA is a GE Control Assembly Backplane for an Innovation Series Drive.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a IS200CABPG1ACA to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

IS200CABPG1ACA

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.5 (4)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.5 (4)
  • Click a star to rate this product
The IS200CABPG1ACA is a GE Control Assembly Backplane for an Innovation Series Drive.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a IS200CABPG1ACA to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

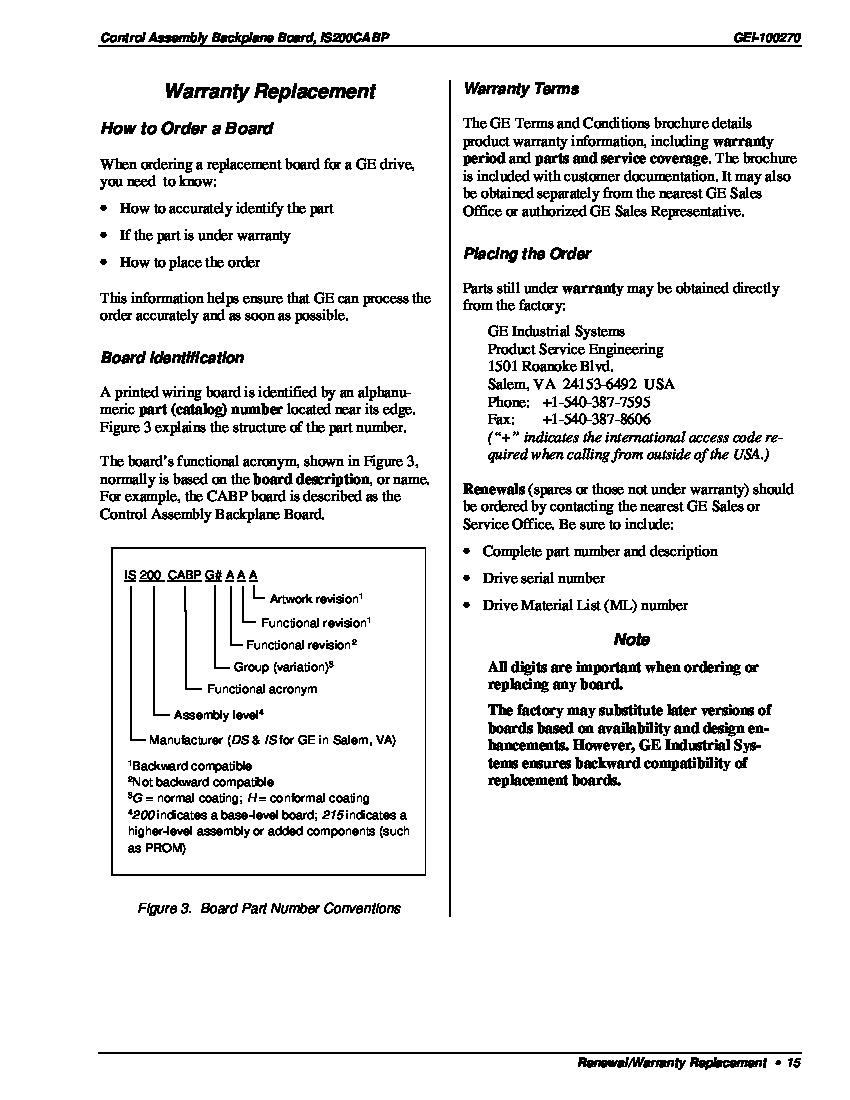

Product Description

The IS200CABPG1ACA is a GE Control Assembly Backplane for an Innovation Series Drive.

The IS200CABPG1ACA is also referred to as a CABP board. This board functions as a way for the boards that are plugged into it to interface and interact with external signals. Connections to other external interfaces are provided with this board. Some of these connections include power supply inputs, ISBus ports, diagnostic tools, front panel meters, and a front panel keypad. This board is typically installed onto the Innovation Series board rack. The rack has the ability to give installation points for the boards being plugged into the IS200CABPG1ACA.

The IS200CABPG1ACA is designed so that all of the non-board connections cannot accidentally be plugged into the wrong jack. The board connections on the board tend to use different types of connections, are individually keyed, or have the same pin assignments for that they can be interchanged without actually causing any damage to the boards. There are only certain boards that can be plugged into the CABP board. A BAIA board is assigned to slot 1. The DSPX board is assigned to slot 2. Slot 3 is taken up by ACL_ board or GBIA/PBIA mods. Slot 4 is assigned to a BIC_ board. A BPI_ or FOSA board is assigned to slot 5. The E1 and E2 stab-on connectors on this board go to GND. The E3 and E4 stab-on connectors go to CCOM. The J1-J12 connectors on this board are the external interface connections. The J13-J21 connectors are the actual card slots.

Our blog has a helpful FAQ for circuit board components identification if you need help on this or any other board.

Reviews For IS200CABPG1ACA
Internal Review

The IS200CABP is a multi-layer Control Assembly Backplane most often used in GE Innovation Series drives. This board is designed to interface with a number of different boards depending on system needs, and also wires to external control I/O and power supply inputs. The board is powered from the HFPA High-Frequency Ac/Fan Power Supply Board. --AX Control Tech Team.

Repair Services For IS200CABPG1ACA

Type Lead Time Price Action
Repair Service 1-2 weeks $1040

Our highly skilled technicians can repair your IS200CABPG1ACA. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More
