The IS200TRPAS1AFD Primary Trip Board

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Sell Surplus: Have a IS200TRPAS1AFD to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: IS200TRPAS1AFD
  • SKU: GBTC-53509
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark VI IS200

IS200TRPAS1AFD Technical Specifications

Manufacturer General Electric
Series Mark VI Speedtronic
Functional Part Number IS200TRPAS1AFD
Revision Total 3 Revisions
Backwards-Compatibility 1st two revisions
Assembly Type Normal Assembly
Functional Abbreviation TRPA

About the IS200TRPAS1AFD

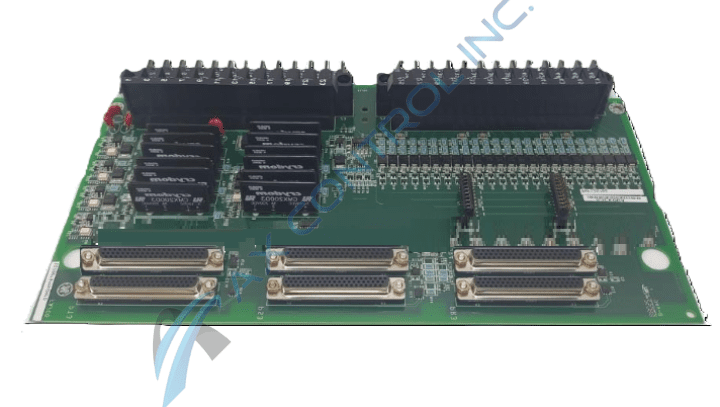

The IS200TRPAS1AFD functions within the MKVI as a primary trip board. It sits within the Turbine Specific Primary Input/Output pack (PTUR/1A or PTUR/1B). The IS200TRPAS1AFD is a t-type board with two black terminal blocks connected to its surface. Each of these has 24 connection points (screw connections). Each connection on the terminal block can connect up to 2 (3 mm) wires using 300 V insulation. Terminal blocks are rated 10A 300V.  The IS200TRPAS1AFD is factory drilled at multiple points. This includes two reinforced holes on two corners and a single small hole located near two larger factory drilled holes. The board is populated by six RS-232 connectors along with various capacitors, resistors, metal oxide varistors, and integrated circuits; all highlights of a voltage suppression and regulation strategy that has been standardized to the rest of this IS200TRPAS1AFD Primary Trip Board's Mark VI Turbine Control System Series, as it is known in full series title. It is also marked with the GE logo, with a barcode, and with several different codes to guide the user. Mounted components are also marked with reference designators for simple identification.


IS200TRPAS1AFD Catalog Number Explanation

This IS200TRPAS1AFD Primary Trip Board device's IS200TRPAS1AFD Primary Trip Board functional product number is started off through an inclusion of the dual-functional IS200 series tag that is indirectly responsible for delegating both this IS200TRPAS1AFD Primary Trip Board circuit board's normal Mark VI Series assembly on top of its domestic original location of General Electric manufacture. Some of the other IS200TRPAS1AFD Primary Trip Board qualities indicated through this medium are its:

  • TRPA functional product acronym
  • Group one Mark VI Series grouping
  • Special PCB protection strategy
  • Three-fold revision table

Frequently Asked Questions about IS200TRPAS1AFD

What Mark VI Series revisions does this IS200TRPAS1AFD Primary Trip Board have?

This IS200TRPAS1AFD Primary Trip Board PCB has two functional revisions and one artwork configuration revision.

What does this IS200TRPAS1AFD Primary Trip Board product's S1-rated PCB protection exist as?

Most other specially-protected S1-identified Mark VI Series products come with a plastic exterior protective chassis, which sadly cannot be confirmed given this IS200TRPAS1AFD Primary Trip Board device's general rarity.

Reviews For IS200TRPAS1AFD

Internal Review
(5.0)

This IS200TRPAS1AFD Primary Trip Board device is definable as such despite something of an apparent mismatch with its TRPA functional product acronym. This IS200TRPAS1AFD Primary Trip Board device's IS200TRPAS1AFD Primary Trip Board product number contains three revisions although only the first two are backwards-compatible functional Mark VI Series revisions. This IS200TRPAS1AFD Primary Trip Board device's F-rated secondary functional revision is quite uncommon, but the IS200TRPAS1AFD Primary Trip Board can still be repaired or replaced. - AX Control Lead Technician
