Product Description

The IS200TRPAS1A  is a PCB board component produced and marketed by General Electric as part of the Mark VI turbine control system.  One of several Speedtronic systems, the MKVI is used for the management of industrial gas/steam turbines and offers central control. This central control can be designed as a triple modular redundant or as a simplex system.

The IS200TRPAS1A is used within the Mark VI as a Primary Trip board.  It is part of the I/O pack used for Turbine Specific Primary Trips.  This is the IS200PTURH/1A or 1B.

The IS200TRPAS1A is built with a voltage detection input of 16-140 VDC.  It has an E-stop input rating of 18-140 VDC.  Its speed input rating is -15-140 VDC.  The contact out voltage is 24 VDC nominal and 28 VDC maximum.

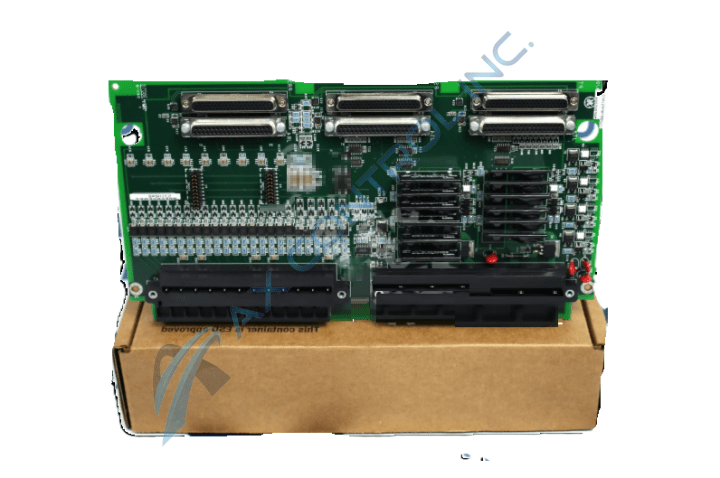

The IS200TRPAS1A board has multiple components.  This includes six multi-pin cable connectors  (37 pins per connector)  located in two lines of three.  It also has two vertical pin backplane connectors (P1 and P2.)   There are two terminal blocks located on the board, each with 24 screw connections.   Additionally, the IS200TRPAS1A has test points, transistors, capacitors, resistors, and diodes.
