Home GE Boards & Turbine Control Mark VI IS200 IS200BICIH1AEC

IS200BICIH1AEC

Q: How does this IS200BICIH1AEC device mount in its greater GE-made assembly?

This IS200BICIH1AEC device&#39;s two retention screws or clips as pictured above are central to its standard mounting strategy.

4.50 (2)
Click a star to rate this product

4.50 (2)
Click a star to rate this product

The IS200BICIH1AEC Bridge Interface Controller

Request a Quote Request Repair

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a IS200BICIH1AEC to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: IS200BICIH1AEC
SKU: GBTC-53587

Manufacturer: GE Boards & Turbine Control
Series: Mark VI IS200

Description
Repairs
Warranty
Manuals

IS200BICIH1AEC Technical Specifications

Part Number	IS200BICIH1AEC
Series	Mark VI IS200 Turbine Control System
Manufacturer	GE Industrial Systems, General Electric Company US
Functional Acronym/Abbreviation	BICI
Functional Description	Bridge Interface Controller Board
Used With	Analog Comparator and Dual Voltage Controlled Oscillator Modules
Number of Dual Voltage Oscillator Daughterboards	Eight
Number of Analog Comparator Daughterboards	Eleven
Number of IMOK LEDs	1
Backwards-Compatibility	A and E Revs
Connector Components	3 Connectors

About the IS200BICIH1AEC

Manufactured by General Electric to be used in the Mark VI series, the IS200BICIH1AEC board is a Bridge Interface Controller, which is what the BICI acronym comes from. The primary purpose of the board is to control bridges using an associated Integrated Gate Commutated Thyristor (IGCT) switching device. The board will mount with the Mark VI system and interface with a Control Assembly Backplane Board (CABP) through the P1 and P2 backplane connectors. The power needed to properly operate the BICI board will be provided by the rack power supply board and will come through the attached CABP. Located on the front panel of the IS200BICIH1AEC board are three connectors:

PSRC
PFBK2
PFBK1

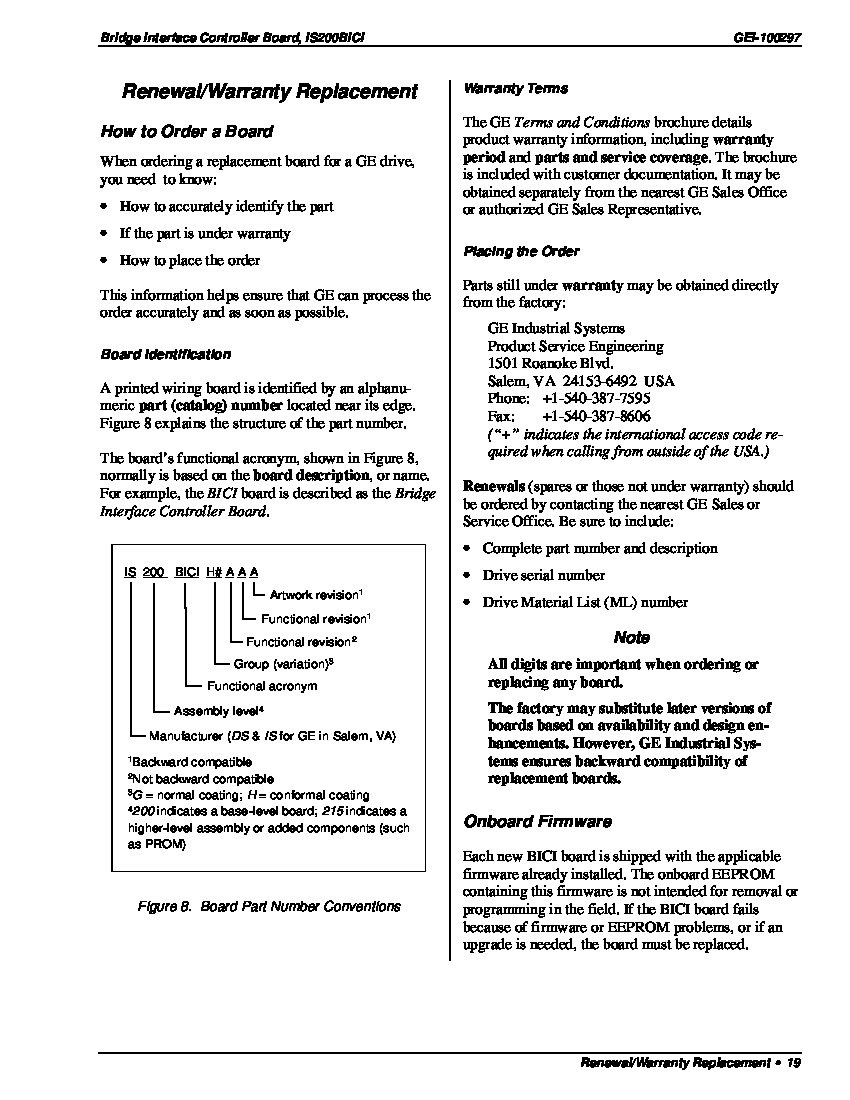

all of the connectors have their own function. The function of the PSRC connector is to connect feedback signals from the expander diode source board and will produce gate control signals for the DB IGCT switches, which will then be brought back to the BICI board from the PSRC connector. For more information on the IS200BICIH1AEC board refer to the attached GE documentation.

Frequently Asked Questions about IS200BICIH1AEC

How does this IS200BICIH1AEC device mount in its greater GE-made assembly?

This IS200BICIH1AEC device's two retention screws or clips as pictured above are central to its standard mounting strategy.

Is this IS200BICIH1AEC a voltage-sensitive GE Mark Series offering?

Yes. Given a number of fragile or circuit-intensive components in its assembly, this IS200BICIH1AEC device would be shipped from our Raleigh, NC warehouse protected by a high-voltage static-resistant bag in addition to standard shipping materials.

Reviews For IS200BICIH1AEC

Internal Review

(5.0)

This BICI board from General Electric is used within Innovation Series drive racks. It includes a 12-bit data port via the logic to access analog I/O resources. Three 12-bit analog inputs include one for the thermistor on the BICI board for ambient temperature, one for an external thermistor, and one for loop-back self-tests of protective threshold voltages. - AX Control Lead Technician

Repair Services For IS200BICIH1AEC

Type	Lead Time	Price	Action
Repair Service	1-2 weeks	$1265

Our highly skilled technicians can repair your IS200BICIH1AEC. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:
