The IS200VGENH1B Mark VI VME Monitor Board

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a IS200VGENH1B to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: IS200VGENH1B
  • SKU: GBTC-14760
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark VI IS200

IS200VGENH1B Technical Specifications

Assembly Type Normal Assembly
Manufacturer GE Industrial Systems
Product Series Mark VI Speedtronic
Part Number IS200VGENH1B
Revision Quantity 1 Revision
Functional Revision 1 B
Manufacturer Location Domestic

About the IS200VGENH1B

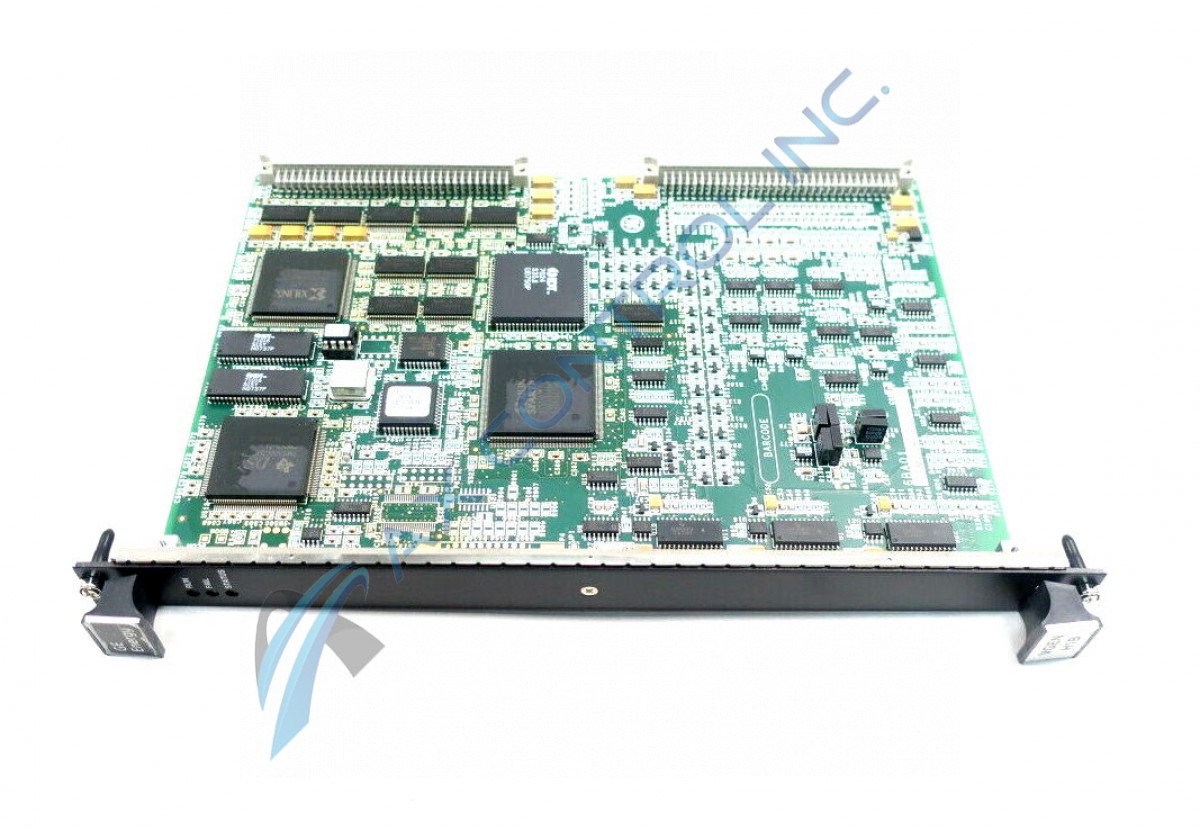

The IS200VGENH1B card acts as an interface for three-phase PT and CT monitoring. On reheat styles of Mark VI Series steam turbines, the IS200VGENH1B may also function as a specialized control board.  The board has a front faceplate with a few components inserted into its surface. The board connects to the PCB using screw connections. The front faceplate is marked with the board number and the GE logo. The IS200VGENH1B has multiple connectors, including two backplane connectors and connectors made of parallel conductive trace dots. This board is built with:

  • integrated circuits
  • oscillating chips
  • field programmable gate arrays (XILINX XCS30)
  • programmable logic devices (XILINX XC95216.)
  • many capacitors, diodes, and resistors of various size and type
  • the manufacturer’s logo and with the code “6BA01”

 IS200VGENH1B Card Functional Role

In terms of functionality, the IS200VGENH1B card offers dual capabilities. One role that the VGEN card plays is the role of an interface for 3 phase PTs and 1 phase Cts. Outside of this functionality, the Mark VI VGEN card is considered a capable option for specialized control of large reheat steam turbines. This card would handle both Power-Load Unbalance and Early-Valve Actuation processes for these aforementioned steam turbines. The only instance in which the VGEN card's PT and CT data communication is challenged is when an EX2000 Generator Excitation System is installed in the drive assembly. AX Control will be able to meet your shipping needs, regardless of whether you need your product overnight or if you want to save money with economical ground service

Your sales representative will be happy to discuss our various shipping options with you. This IS200VGENH1B VME Monitor Board device is actually not the originally-developed product of its specific Mark VI Series functionality; that would be the IS200VGENH1 parent PCB of the same functionality missing this IS200VGENH1B VME Monitor Board's B-rated functional product revision.


Frequently Asked Questions about IS200VGENH1B

Does this IS200VGENH1B VME Monitor Board mount in a VME Rack Mounting Assembly?

Yes. This IS200VGENH1B VME Monitor Board mounts in General Electric's standard VME Rack Assembly, as evidenced through its functional description as well as its attachement of a VME Rack metal installation faceplate.

How is this IS200VGENH1B VME Monitor Board product voltage-regulated?

This IS200VGENH1B VME Monitor Board PCB's voltage regulation strategy involves the incorporation of a set of Mark VI Series-standardized voltage-limiting hardware components such as resistors, capacitors, diodes, and even specialized integrated circuits into its normal Mark VI Series assembly version.
