IS200VAICH1A

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (4)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (4)
  • Click a star to rate this product
CIRCUIT BOARD GE PCB MARK VI

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a IS200VAICH1A to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

IS200VAICH1A Technical Specifications

Instruction Manual GEH-6421
Manufacturer GE General Electric
Part Number IS200VAICH1A
Product Type Analog I/O Board
Series Mark VI

Product Description

The IS200VAICH1A is a circuit board from General Electric.  This board functions within the Mark VI turbine control system as a VME Analog Input board.  This system was one of the last Speedtronic management systems, and one of the most complex.  The system could be set up as either a TMR (triple modular redundant) system or as a Simplex system.    It is important to note this and other Mark VI components are no longer made or supposed by General Electric and are now in legacy status.  However, AX Control maintains on-hand stock of many of these boards so we can more quickly fulfill your orders.  We suggest purchasing an exact copy of your current board to ensure compatibility.

The IS200VAICH1A works in conjunction with a number of other control boards.  This includes the VVIB, VTUR, VTCC, and VGEN boards.  Most of these boards are single-width VME boards that each use a single digital signal processor.    The boards communicate with each other through backplane connectors located on the rear board edge.  These usually connect via a 37-pin cable.  Each board in the system has a separate identity which makes communication between boards and with the central processing unit possible.

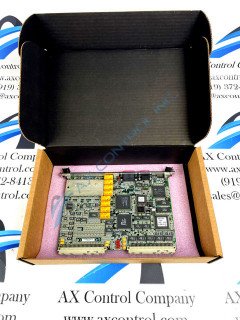

The IS200VAICH1A includes a front faceplate with three embedded LEDs.  The board has multiple ICs including processor chips.  Other components include mounted transistors, capacitors, and diodes.  These components will have reference designations and may also carry original part numbers from their individual manufacturers.

 For specifics on how to install or maintain the board, please refer to General Electric manuals and user guides for more information.


Frequently Asked Questions about IS200VAICH1A

What type of applications does IS200VAICH1A support?
IS200VAICH1A supports both simplex and triple modular redundant applications. When IS200VAICH1A is used in TMR configuration, input signals on IS200VAICH1A's terminal board are fanned out to three VME boards racks R, S, T, each containing IS200VAICH1A or another VAIC.
How many inputs and outputs does IS200VAICH1A accept?
IS200VAICH1A's terminal board accepts 10 inputs and 2 outputs. The IS200VAICH1A board accepts 20 analog inputs and controls 4 analog outputs.
How do you install IS200VAICH1A?
To install IS200VAICH1A, first power down the VME processor rack. Then slide IS200VAICH1A in and push the top and bottom levers inward so seat its edge connectors. To secure IS200VAICH1A, tighten the captive screws at the top and bottom of the front panel.
Which manual can I use with IS200VAICH1A?
The manual to use with IS200VAICH1A is Manual GEH-6421. This manual, a manual that describes IS200VAICH1A, is the Mark VI Turbine Control System Guide Manual. This manual is a GE manual and the manual addresses IS200VAICH1A on page 35 and beyond in the manual.
