TERMINATION BOARD VIBRATION GENERAL ELECTRIC MARK VI CARD

AVAILABILITY:

CALL FOR AVAILABILITY

Sell Surplus: Have a IS200TVIBH2A to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: IS200TVIBH2A
  • SKU: IS200TVIBH2AGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark VI IS200

Product Description

The IS200TVIBH2A printed circuit board functions as a termination vibration board.  This is one of several termination boards available within our inventory, including several TVIB boards; please be sure to pick the correct unit for your application.

The IS200TVIBH2A works within the Mark VI turbine control system.  This is one of General Electric’s Speedtronic control systems, specifically designed to control industrial gas and steam turbine systems.  TVIB boards typically work in conjunction with VVIB boards.  Two TVIB termination boards are used to divide keyphasor inputs from the VVIB board in 3,000 rpm to 3,600 rpm applications.   When shaft speeds run over 3,600 rpm, faster sampling may be needed.

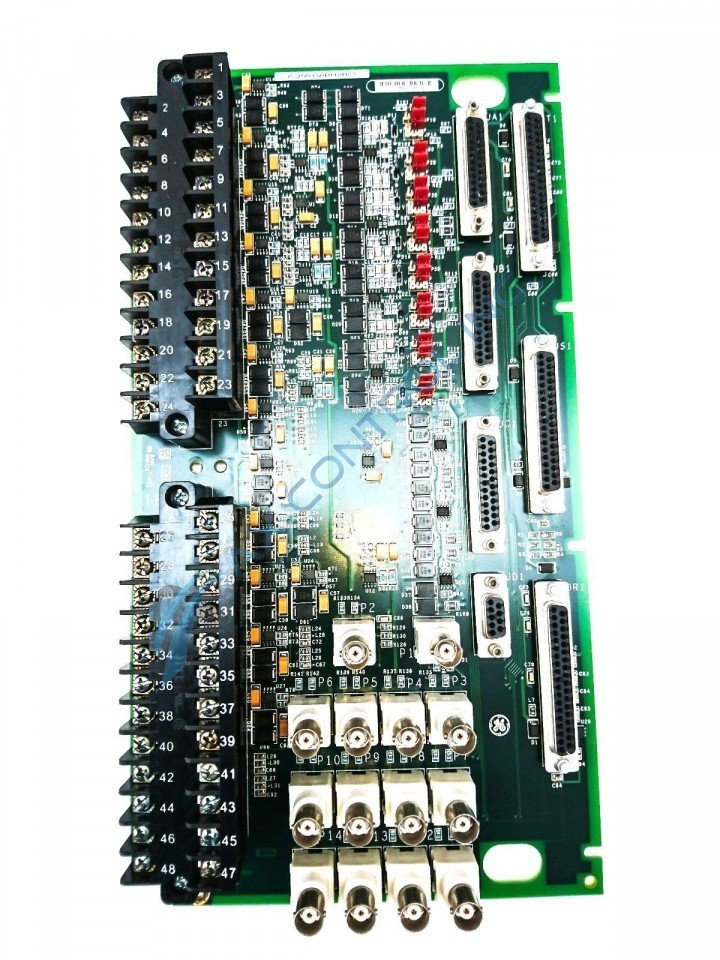

Unlike many IS200 boards, the IS200TVIBH2A does not include an attached faceplate.  The board has two terminal blocks located side-by-side on one long board edge.  Each of these blocks has two lines of screw terminals.  Each terminal is numbered.   The other side of the board includes seven female connectors.   The board also has 14 plug connectors.  These are located in three lines of four and a single line of two.

Other board components include capacitors, integrated circuits, resistors, diodes, and inductor coils.  Additionally, the board has sixteen jumper switches placed in a single line.  These are placed in pairs (eight pairs of two) and will determine how circuits within the board operate.

Refer to GE manuals and user guides for additional information.  All handling information should be read and understood before unboxing your part from AX Control.  This is to ensure your safety as well as to ensure the longevity of your new purchase.
