IS200RCSBG1B

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
The IS200RCSBG1B is a GE Mark VI printed circuit board

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a IS200RCSBG1B to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

IS200RCSBG1B

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
The IS200RCSBG1B is a GE Mark VI printed circuit board

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a IS200RCSBG1B to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Product Description

The IS200RCSBG1B is a printed circuit board component for the Mark VI system.  This system is part of the Speedtronic series that has been created by GE and used for the management of gas or steam turbine systems in various iterations since the late 1960s.  The Mark VI is one of the last Speedtronic systems to be developed and released. It includes advances like Ethernet communication capabilities, along with a PC-based operator interface that allows the end user to easily access system data from a single location.

The IS200RCSBG1B  functions as a 620 Frame RC Snubber board, which provides capacitors for SCRs and diodes on one phase of a 620 frame SCR/diode source bridge.  A single card is all that is necessary for a single bridge.

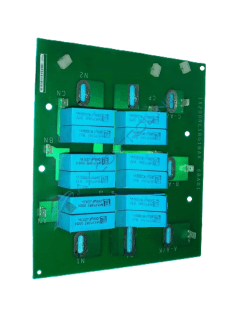

The IS200RCSBG1B is built with twelve capacitors that are placed in six pairs. These pairs are placed in two lines of three pairs. The capacitors each have a clamping current of 8.5 Apk, 0.5 A rms and a capacitance of  0.095 to .150 µF. The board is also built with four terminal connections (two negative and two positive,) as well as six stab-on connectors. The stab-on connectors are placed on the board as two lines of three.  The board is drilled in multiple locations. It is marked with the GE logo, with the code 6BA01, and with the board number.

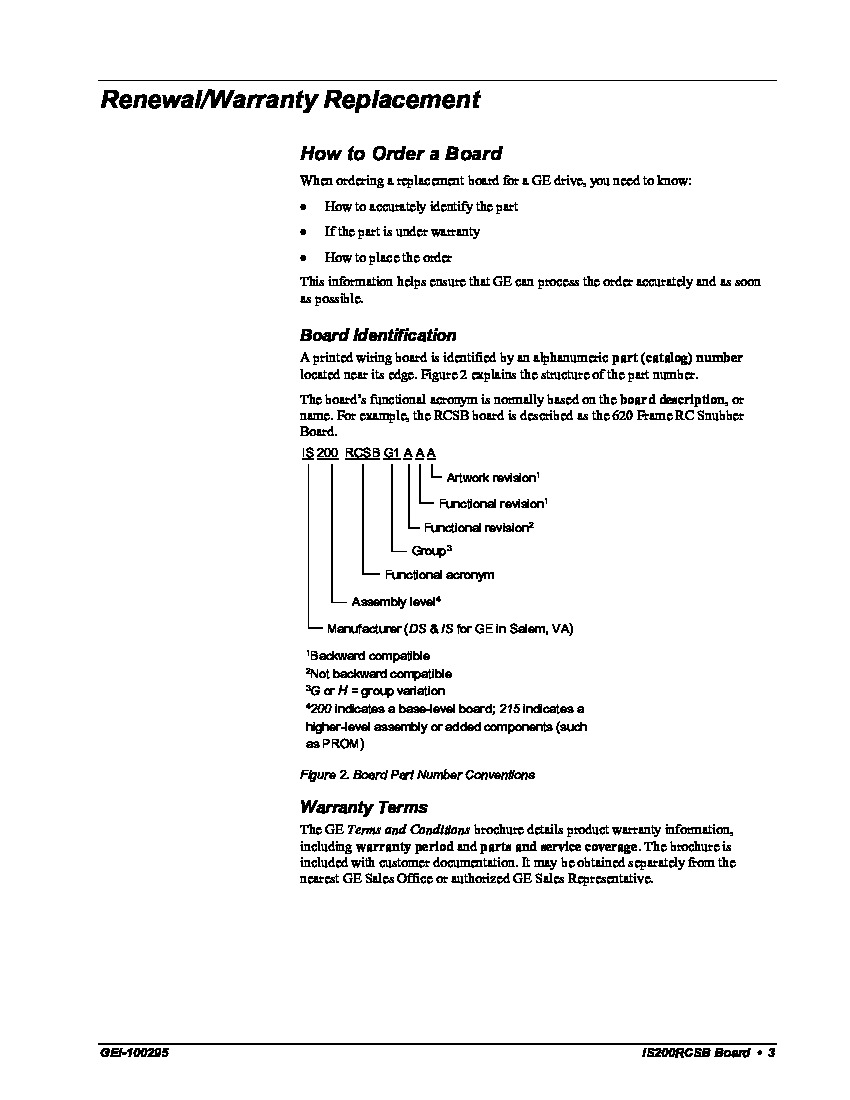

More information on the IS200RCSBG1B board including application data, snubber circuit requirements, and mechanical requirements, can be found within GE publication GEI-100295.  A shipping quote can be provided before shipment upon request.

Reviews For IS200RCSBG1B
Internal Review

This 620 Frame RC Snubber board works within 620 frame source bridges. It provides the snubber capacitors that work in conjunction with SCRs and diodes to make up one phase of the 620 frame SCR-diode source bridge. The capacitors protect SCRs and diodes from great-than-device-rating voltage overshoots during commutation. Read associated manuals for more details. --AX Control Tech Team.

Repair Services For IS200RCSBG1B

Type Lead Time Price Action
Repair Service 1-2 weeks $659

Our highly skilled technicians can repair your IS200RCSBG1B. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More
