IS200RCSAG1A

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
The IS200RCSAG1A is a GE Mark VI printed circuit board

AVAILABILITY:

IN STOCK
SHIPS TODAY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a IS200RCSAG1A to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

IS200RCSAG1A

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
The IS200RCSAG1A is a GE Mark VI printed circuit board

AVAILABILITY:

IN STOCK
SHIPS TODAY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a IS200RCSAG1A to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Product Description

The IS200RCSAG1A is a component for the Mark VI system.  The Mark VI is designed around the central Control Module, which takes care of the majority of procedures and processes like protection, monitoring, and control of the system. This Control Module connects to a non-essential HMI (human machine interface) that allows users to then access system data from one location.

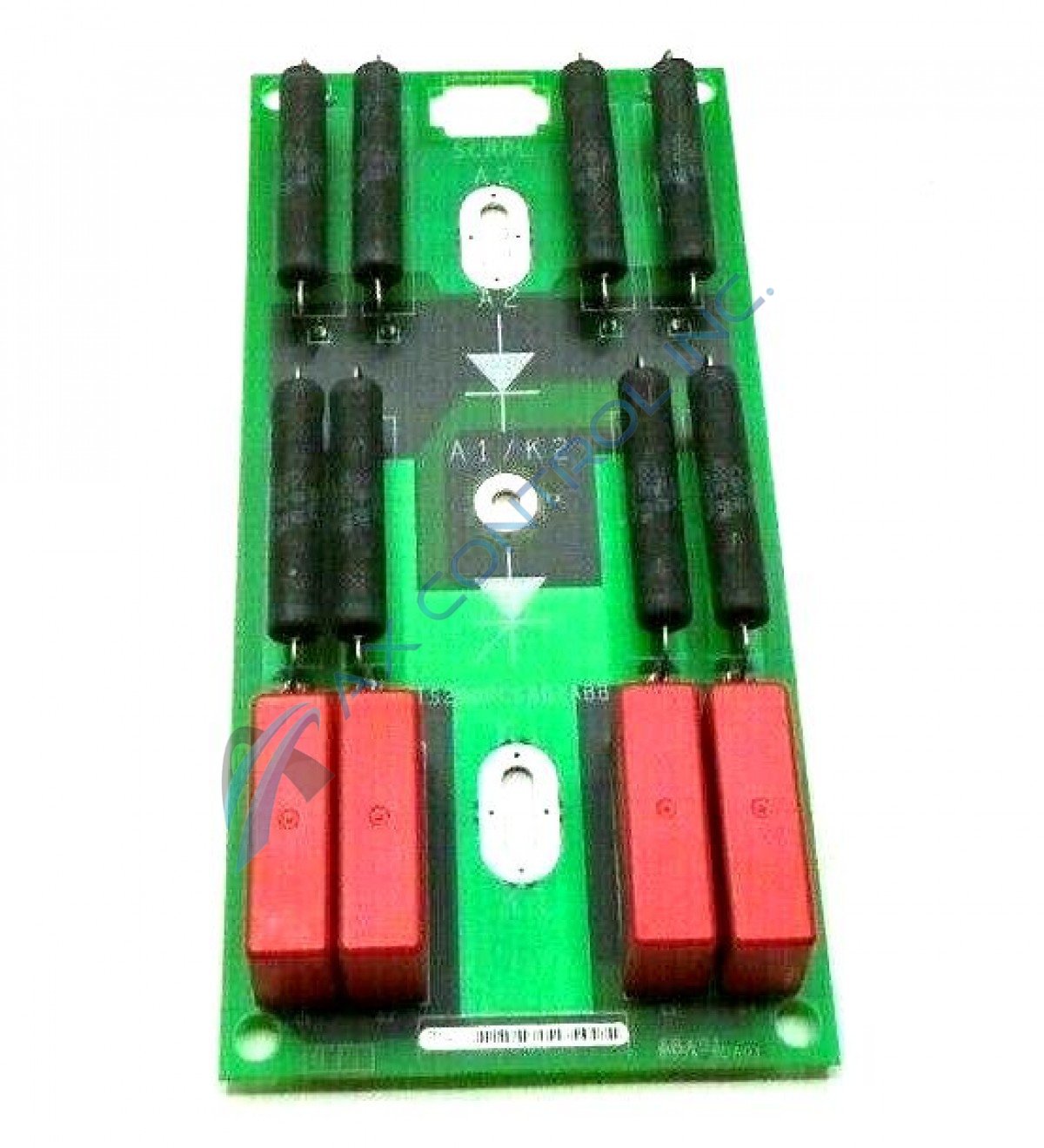

The  IS200RCSAG1A is a 1800/1000 Frame RC Snubber Board.  This circuit board is used in 1800/1000 Innovation Series non-regenerative sources to provide snubber circuitry for the SCR/diode module.  These boards have no fuses, LEDs, TP test points, or adjustable hardware. The board is designed to mount directly to the diode module/SCR for each phase.

The  IS200RCSAG1A insulates gate drive circuits from unwanted noise.  During commutation, the IS200RCSAG1A board protects the diode module/SCR from voltage overshoots between devices.  The IS200RCSAG1A uses a separate AC line filter, which is mounted outside the bridge cabinet.

More information about the  IS200RCSAG1A and its components and wiring may be found in GE publication GEI-100303.   This publication also includes a functional description of the board, warnings, installation guidelines, and safety and handling precautions.   GE recommends turning off the power going to the board and testing to be sure no power exists in the circuit board before touching any connected circuits or the board itself.  This procedure will help prevent electric shock.

AX Control will treat the  IS200RCSAG1A as a static-sensitive board at all times. This will include the use of an antistatic covering during shipment and special handling techniques during the boxing of the part.  Please refer to the abovementioned publication for more information on proper handling techniques.

Reviews For IS200RCSAG1A
Internal Review

This 1800/1000 Frame RC Snubber Board is designed for use within 1800 or 1000 Innovation Series non-regenerative sources. This board provides snubber circuitry for associated SCR/diode modules and is mounted directly to power devices. One RCSA board is needed per phase, three per regenerative source. Read more in associated manuals and user guides. --AX Control Tech Team.

Repair Services For IS200RCSAG1A

Type Lead Time Price Action
Repair Service 1-2 weeks $470

Our highly skilled technicians can repair your IS200RCSAG1A. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More
