The IS200ICBDH1BAA model is one of the many printed circuit boards produced by General Electric as part of the Mark VI IS200 series. It mounts in a VME rack. One feature of the ICBD model is that it its reset switch.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a IS200ICBDH1BAA to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: IS200ICBDH1BAA
  • SKU: IS200ICBDH1BAAGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark VI IS200

IS200ICBDH1BAA Technical Specifications

Part Number IS200ICBDH1BAA
Series Mark VI IS200
Manufacturer General Electric Company USA, GE Industrial Systems
Functional Acronym/Abbreviation ICBD
Product Type Printed Circuit Board
Number of Connectors 15

Frequently Asked Questions about IS200ICBDH1BAA

What type of model is the IS200ICBDH1BAA?

Unfortunately, it is difficult to understand what type of model the IS200ICBDH1BAA is. Manuals provided by General Electric for the Mark VI series do not provide any substantial information on what type of printed circuit board is or how it is used in conjunction with the series or other boards. For more information, it would be best to contact General Electric directly.

Are there any functional differences between the IS200ICBDH1BAA and other ICBD models?

Since there is no documentation on any of the ICBD models, it is unsure whether or not there are any functional differences between the different types of ICBD models. Doing a visual inspection of the board, it can be observed that there are no physical differences between the models, and can thus be assumed that all of the models function the same and there are no revisions between each of the different boards.

Product Description

The IS200ICBDH1BAA is a component designed to be part of the Mark VI system from General Electric. The MK VI was one of the last turbine management systems released by GE under the Speedtronic name. This series, which has been used to manage heavy-duty steam or gas turbine systems, has had over three decades of research and development invested in the improvement of the systems that use the Speedtronic name. The Mark VI includes a Central Control Module that can be ordered with a 13- or 21-slot VME card rack to accept I/O boards that connect the Control Module to the rest of the MKVI system. The cards that plug directly into the rack systems are built with backplane connectors along the rear board edge. This allows for easy “plug-in/plug-out” capability, making maintenance and replacement of components simpler.

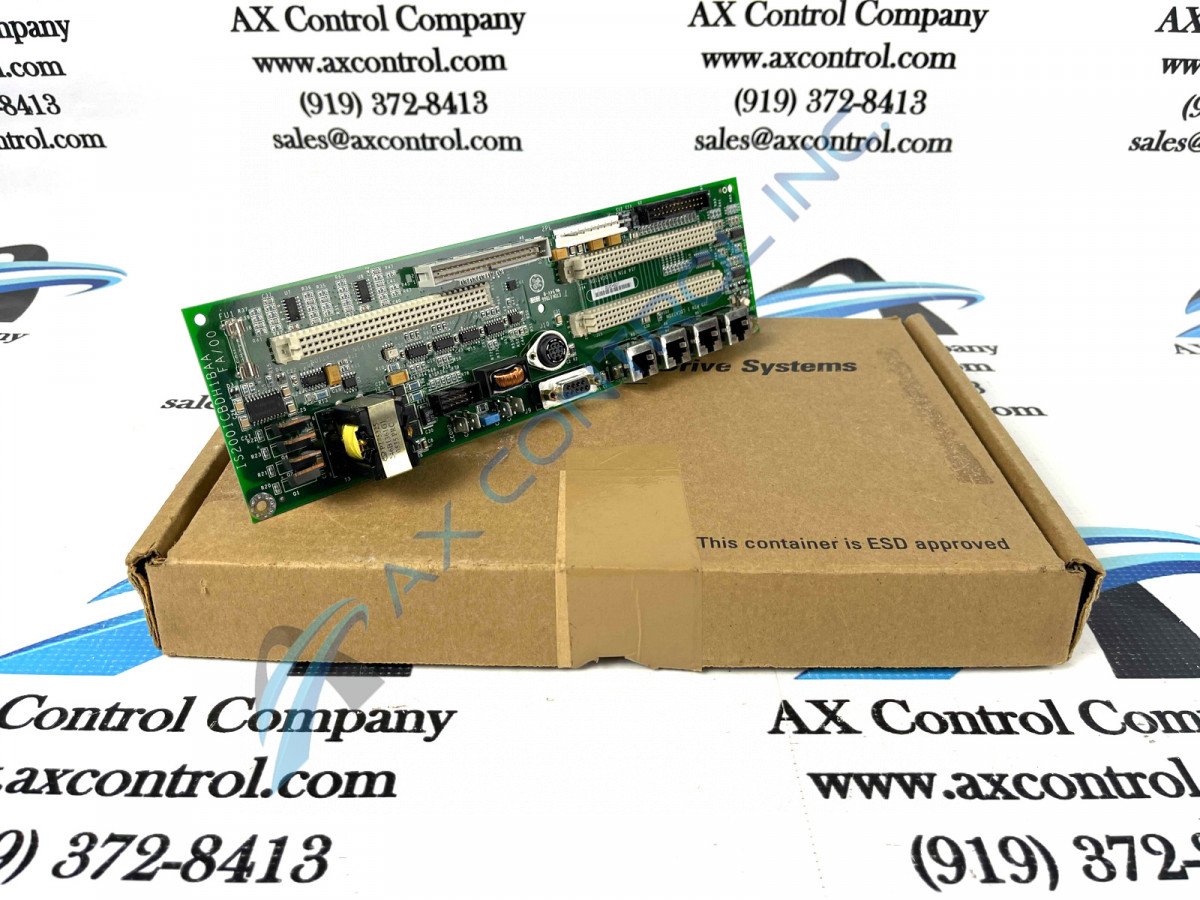

The  IS200ICBDH1BAA is an auxiliary board component and does not plug directly into a rack system. It is a rectangular board built with many inputs and outputs. These include:

  • Four vertical pin connectors (male) varying from 9-pins to 40-pins

  • Three backplane connectors (female.) The “Pin 1” location is marked on each backplane.

  • Four jack connectors (female.)

  • One 8-pin mini-DIN connector (female.)

  • One 9-pin D-Sub connector (female.)

  • Two conduction sensors.

The  IS200ICBDH1BAA includes a reset switch. It has a fuse, three transformers, four transistors, and over a dozen integrated circuits. The board has resistors, capacitors, and diodes. Reference designators are used to identify components. The board is marked with several codes (6BA03/ET866/94V-0) and with the manufacturer’s logo.

Please refer to General Electric publications like manuals or user guides for installation guidelines. All publications and tech support were provided to the end-user by GE.
