IS200ICBDH1ABB Mark VI Printed Circuit Board

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a IS200ICBDH1ABB to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: IS200ICBDH1ABB
  • SKU: GBTC-53448
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark VI IS200

IS200ICBDH1ABB Technical Specifications

Manufacturer General Electric
Series Mark VI Speedtronic
Functional Part Number IS200ICBDH1ABB
Functional Description Printed Circuit Board
Revision Total 3 Revisions
Assembly Type Normal Assembly
Functional Abbreviation ICBD

About the IS200ICBDH1ABB

IS200ICBDH1ABB Hardware Specilizations

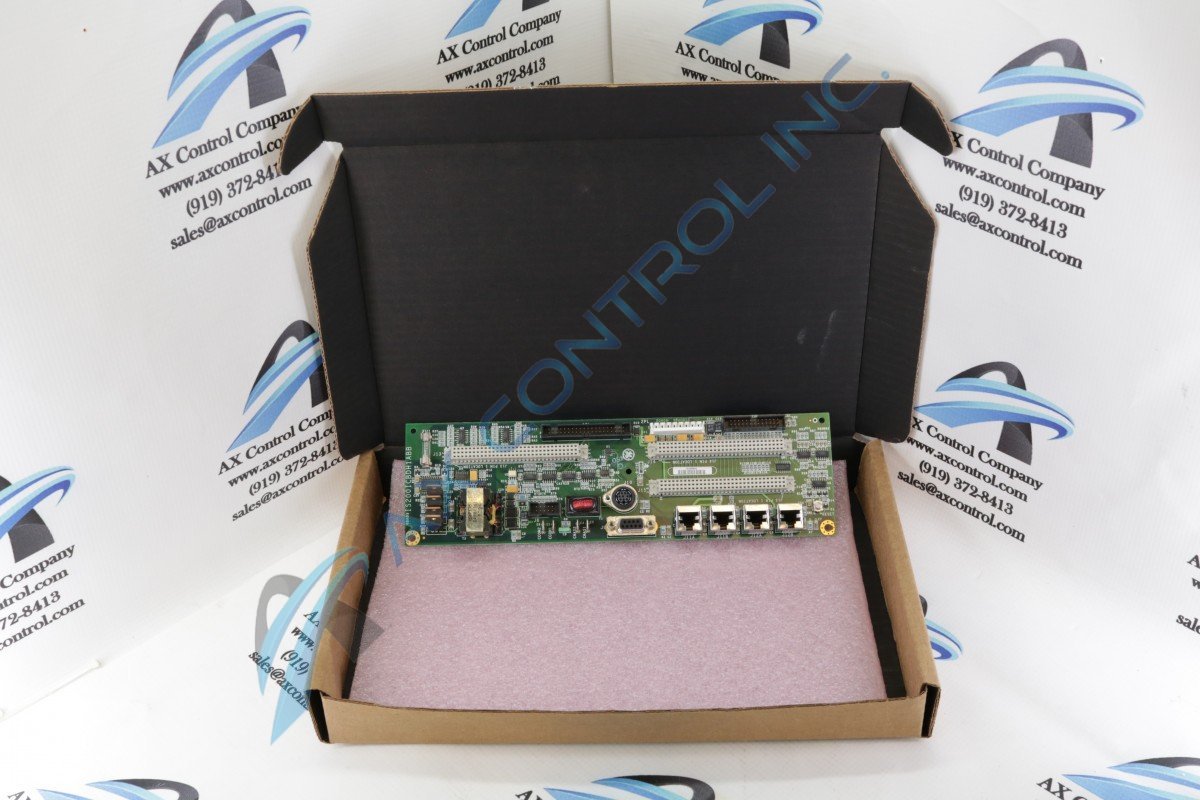

There are many different parts that make up the IS200ICBDH1ABB. There are 61 capacitors, 10 diodes, 3 transformers, 4 transistors, 95 resistors, a fuse, 15 total integrated circuits, and an inductor coil. There is also an 8-pin female circular port, an RS-232 female 9-pin port, and four ethernet jacks that are labeled J12A, J12B, J11A, and J11B. There are three black pin connectors that have 40 pins, 10 pins, or 26 pins. In the center of the 40 and 26-pin connectors is a white 9-pin male connector. There are factory-drilled holes on the four corners of the ICBD that are used for mounting the board into place. There are two terminal screws on two of the corners that wires can be connected to. The part number label for this board is located on the left side of the board and is close to the fuse. The IS200ICBDH1ABB can connect to a metallic chassis (sold separately) that can then be mounted to other PCBs within a rack. There are three white 96-pin female ports and 4 stab-on connectors that are labeled:

  • CHAS 1
  • CHAS2
  • CCOM 2
  • CCOM1

IS200ICBDH1ABB Board Product Number Insights

This IS200ICBDH1ABB product number in specific is started off by an instance of the dual-functional IS200 series tag that was originally designed by GE to state this IS200ICBDH1ABB product's normal Mark VI Series assembly version on top of its standard domestic location of original GE manufacture. Some of the other relevant IS200ICBDH1ABB Board hardware qualities indicated in this manner include its:

  • ICDB functional product abbreviation
  • Group one Mark VI Series grouping
  • Conformal PCB coating style
  • Three-fold significant revision history

Frequently Asked Questions about IS200ICBDH1ABB

What types of Mark VI Series revisions does this IS200ICBDH1ABB product use?

This IS200ICBDH1ABB PCB is edited through two functional revisions and an artwork configuration revision rated at unique grades of A, B, and B, respectively.

Which of this IS200ICBDH1ABB device's three revisions are backwards-compatible?

This IS200ICBDH1ABB PCB's first two functional revisions are considered backwards-compatible.

Reviews For IS200ICBDH1ABB

Internal Review
(4.0)

This IS200ICBDH1ABB printed circuit board product offering can unfortunately only receive a rating of 4 on this IS200ICBDH1ABB personalized product page here as it is solely definable as just the basic printed circuit board product. With this being the case, this IS200ICBDH1ABB PCB does benefit from its General Electric manufacture in some obvious ways, as it is afforded a full total of three significant product revisions and is protected by an industry-standard conformal PCB coating. This IS200ICBDH1ABB Board is available here to repair or replace. - AX Control Lead Technician
