IS200FOSBH1A

4.92 (13)
Click a star to rate this product

4.92 (13)
Click a star to rate this product

The IS200FOSBH1A Fiber Optic Interface Board was manufactured for General Electric's Mark VI Turbine Control System Series.

Request a Quote Request Repair

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a IS200FOSBH1A to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: IS200FOSBH1A
SKU: GBTC-14591

Manufacturer: GE Boards & Turbine Control
Series: Mark VI IS200

Description
Repairs
Warranty
Manuals

IS200FOSBH1A Technical Specifications

Manufacturer	General Electric
Series	Mark VI Speedtronic
Part Number	IS200FOSBH1A
Product Type	Fiber Optic Input/Output Board
Assembly Type	Normal Assembly
Functional Acronym	FOSB
Revision Quantity	1 Revision

About the IS200FOSBH1A

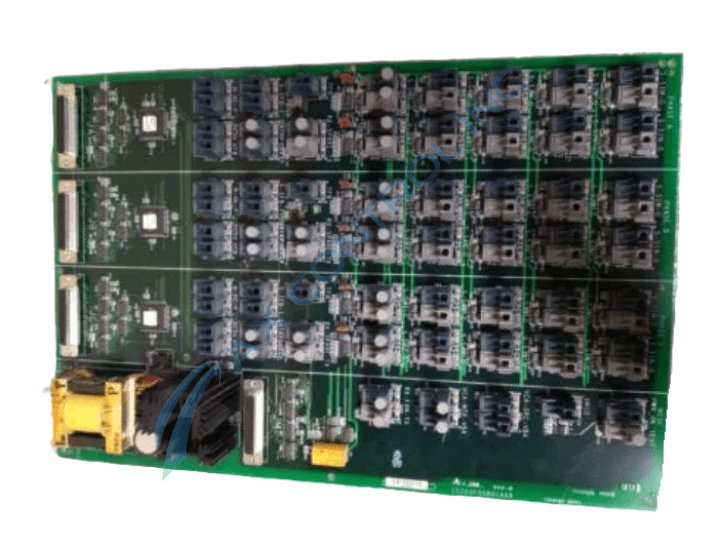

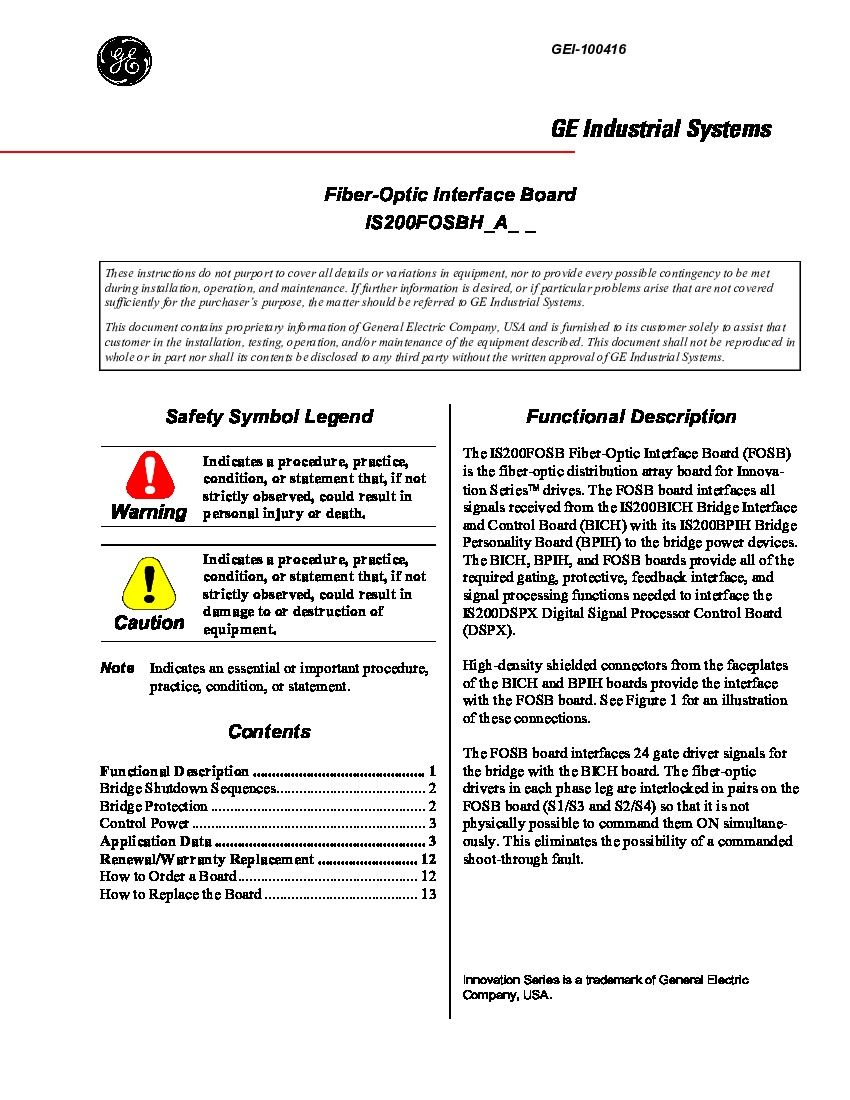

The IS200FOSBH1A is a Fiber-Optic Interface board. The board is used within the Innovation series drive as a distribution array board. The IS200FOSBH1A is designed to interface signals from the BICH and BPIH boards to bridge power devices. The IS200FOSBH1A takes gate driver status signals from the BICH/BPIH boards and multiplexes them on a per phase basis. Between these three boards (FOSB/BPIH/BICH) most signal processing, protective, gating, and feedback interface functions are provided for the DSPX Digital Signal Processor Control Board.

The IS200FOSBH1A is able to indicate bridge faults and can initiate soft-shutdown fault sequences when necessary. It has the ability to detect and signal missing or improperly connected cables. The IS200FOSBH1A receives input power from the GDPA High-frequency Power Supply board. The IS200FOSBH1A has a transformer and a 5V power supply. Tech support for the IS200FOSBH1A was provided by GE. Handling precautions as recommended by the manufacturer should be followed when replacing or removing the board. This IS200FOSBH1A device is not the originally-produced device of its specific Mark VI Series functionality; that would be considered the IS200FOSBH1 parent PCB not making use of this IS200FOSBH1A product's sole A-rated functional product revision. The IS200FOSBH1A is built with:

102 fiber-optic connectors
- each pair with a light emitting diode
no fuses or any other kind of adjustable hardware
two stab-on connectors
two TP test points
six board (plug) connectors

Frequently Asked Questions about IS200FOSBH1A

What does this IS200FOSBH1A device's conformal PCB coating entail?

This IS200FOSBH1A device's conformal style of PCB coating is a thin layer of exhaustively-applied PCB coating covering the entire base PCB of this IS200FOSBH1A product.

What is the purpose of the FOSB functional product acronym?

The FOSB functional product acronym was created to exist as a convenient shorthand promotional alternative to the lengthy IS200FOSBH1A product number itself.

Reviews For IS200FOSBH1A

Internal Review

(5.0)

This Fiber-Optic Interface board from General Electric is typically used in Innovation series drives. It interfaces with 24 gate driver signals and multiplexes gate driver status from the BICH/BPIH boards on a per-phase basis. It also provides an interruptible power source for gating fiber-optic connections. Additional details are provided in associated GE manuals. This IS200FOSBH1A device's conformal PCB coating is much thinner yet more exhaustive in its total coverage than the normal style of coating. This IS200FOSBH1A device is available for repair or replacement. - AX Control Lead Technician

Repair Services For IS200FOSBH1A

Type	Lead Time	Price	Action
Repair Service	1-2 weeks	$1285

Our highly skilled technicians can repair your IS200FOSBH1A. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:
