The GE Mark VI IS200DSPXH1AAA is a printed circuit board created by GE for the Mark VI series. This board is part of GE's speedtronic series.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a IS200DSPXH1AAA to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: IS200DSPXH1AAA
  • SKU: IS200DSPXH1AAAGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark VI IS200

Product Description

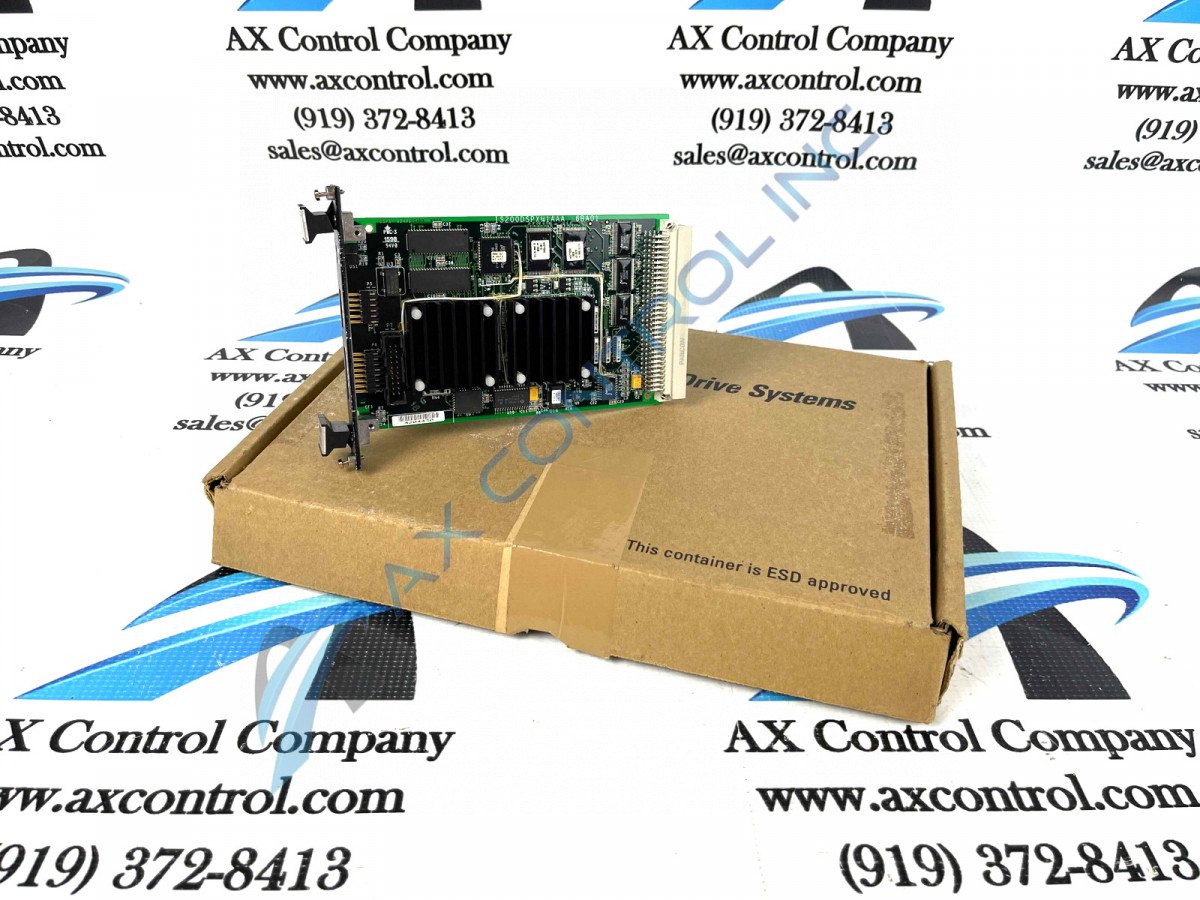

The IS200DSPXH1AAA is a Digital Signal Processor Control Board.  This circuit board acts as a controller for gating functions and as a motor regulator and bridge regulator for Mark VI Speedtronic systems.

The IS200DSPXH1AAA is designed with application-specific integrated circuits that perform custom logic functions.  There are sixteen integrated circuits on the surface of the board, including two that are protected by covering shields mounted to the surface of the board.   These maintain RAM, NVRAM, Flash, and add-only memory.

The IS200DSPXH1AAA is designed with a front faceplate attached to the short front edge.  This faceplate is marked with the GE logo and with the board’s part number.  It also includes openings for two LEDs (Status and Fault) and two right-angled male port connectors.  These are labeled on the board surface as P5 and P6.  Other connectors on the board include a backplane connector (P1) and a vertical male pin connector (P7.)

Other board components on the IS200DSPXH1AAA include resistors, capacitors, and transistors.  Most components are marked with reference designators for easy identification.  The board is marked with codes like 6BA00 and 6DA00.

For more information about the IS200DSPXH1AAA Digital Signal Processor Board, please refer to original documentation that was provided with your OEM purchase, like datasheets, user guides, and product manuals.  We may have replacements for this documentation if your copies have been misplaced.

AX Control ships every day from our warehouse in North Carolina, Monday through Friday.  Most in-stock products ordered before 3 pm will be shipped out the same day.  If you need expedited shipping, please let us know.  Shipping options can be found on our website.  We are also happy to work with your private courier if you prefer.

Reviews For IS200DSPXH1AAA

Internal Review
(5.0)

The two LEDs on this DSPX board offer Fault and Status information. The DS1 LED, which is red, will let you know when faults have occurred on the board. The DS2 LED, which is green, will flash when the board is running properly, will be solidly on when the DSP has stopped, and will be off when a fault occurred during reset. --AX Control Tech Team.
