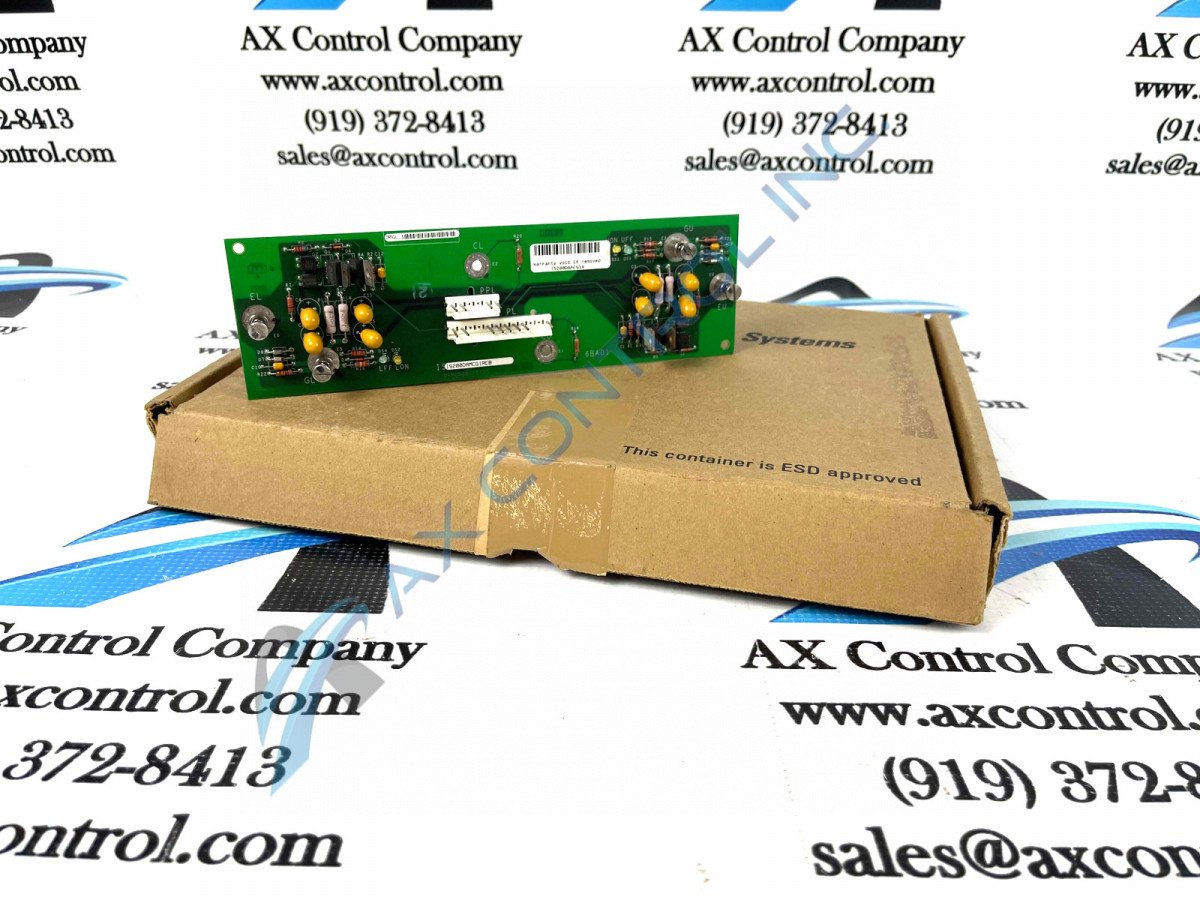

IS200DAMCG1ACB 250A Gate Drive Amplifier Board

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a IS200DAMCG1ACB to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: IS200DAMCG1ACB
  • SKU: GBTC-16889
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark VI IS200

IS200DAMCG1ACB Technical Specifications

Manufacturer General Electric
Series Mark VI Speedtronic
Part Number IS200DAMCG1ACB
Product Type IS200DAMCG1ACB 250A Gate Drive Amplifier Board

About the IS200DAMCG1ACB

The IS200DAMCG1ACB is a device which is known as a gate drive amplifier and interface board. This is a part of the Innovation Series. The IS200DAMCG1ACB and other DAM boards operates as an interface between the control rack and the power switching devices (also called IGBTs) in a low voltage drive in the Innovation Series. These boards:

  • contain LEDs or light-emitting diodes that indicate if the device is on or off
  • have a drive power rating of 250 frames
  • were used to automate and manage the processes of gas and steam turbines in specific

IS200DAMCG1ACB Terminal Board Connections

The IS200DAMCG1ACB and other DAMC boards, as well as DAMA boards and DAMB boards, are used to amplify current. These are used to provide final stages of gate drive for the drive’s power bridge’s phase leg. These boards have a +15/-7.5 input of power supply input. These circuit boards do not have any fuses, testpoints, or items that are configurable. The IS200DAMCG1ACB features a group of four light-emitting diodes. Two (2) of these LEDs are green and the other two (2) are yellow. They are labeled as UON, UFF, LON, and LFF. Twelve (12) connector pins have also been positioned on the IS200DAMCG1ACB which are IGBT connections. There are also six (6) gate drive power supply pins on the IS200DAMCG1ACB.  DAMC boards directly connect the:

  • IGBT gate terminal
  • emitter terminal
  • collector terminal
  • control rack’s IS200BPIA Bridge Personality Interface or BPIA board

Reviews For IS200DAMCG1ACB

Internal Review
(5.0)

This IS200DAMCG1ACB GE Mark Series offering has a unique three-fold revision table containing A, C, and B-rated revisions, as the IS200DAMCG1ACB part number's ending hints at. This IS200DAMCG1ACB device offers a series of LED or Light-Emitting Diode components that play important roles in fault condition diagnosis. This IS200DAMCG1ACB Gate Drive Amplifier Board has a 250A rating and a repair option. - AX Control Lead Technician
