The IS200TRLYH2FAA Relay Terminal Board was first put together for General Electric's Mark VI Turbine Control System Series.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a IS200TRLYH2FAA to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: IS200TRLYH2FAA
  • SKU: GBTC-53461
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark VI IS200

IS200TRLYH2FAA Technical Specifications

Original GE Manufacturer General Electric
Series Mark VIe & VIeS
Product Description IS200TRLYH2FAA Relay Terminal Board
Functional Part Number IS200TRLYH2FAA

Frequently Asked Questions about IS200TRLYH2FAA

Is this IS200TRLYH2FAA Relay Terminal Board device a large GE Mark Series product?

Yes. If this IS200TRLYH2FAA Relay Terminal Board device were smaller, it would have been referred to as a printed circuit card or PCC.

Exactly how long of a warranty would this IS200TRLYH2FAA Relay Terminal Board qualify for it I did decide to buy it here?

This IS200TRLYH2FAA Relay Terminal Board, as a PCB product, would qualify for the unmatched AX three-year guaranteed comprehensive warranty.

About the IS200TRLYH2FAA

Hardware Tips and Specifications

The IS200TRLYH2FAA is a GE Relay Output Terminal Board (TRLY) that was created to be part of the Mark VI Control System. The IS200TRLYH2FAA interfaces with a Discrete I/O PCB (VCCC or VCRC). This board can accept 28/125 VDC or 120 VAC operating voltages. It is normally used with a WPDF daughterboard. It has:

  • a total of 12 fused solenoid driver relays (with WDPF)
  • 12 dry circuit relays (without WDPF)
  • TMR control type relays that are mechanical Form B
  • Form B (NC) outputs instead of a Form A (NO) contact
  • Two terminal strips with 24 terminals on them
    • terminals are barrier-type

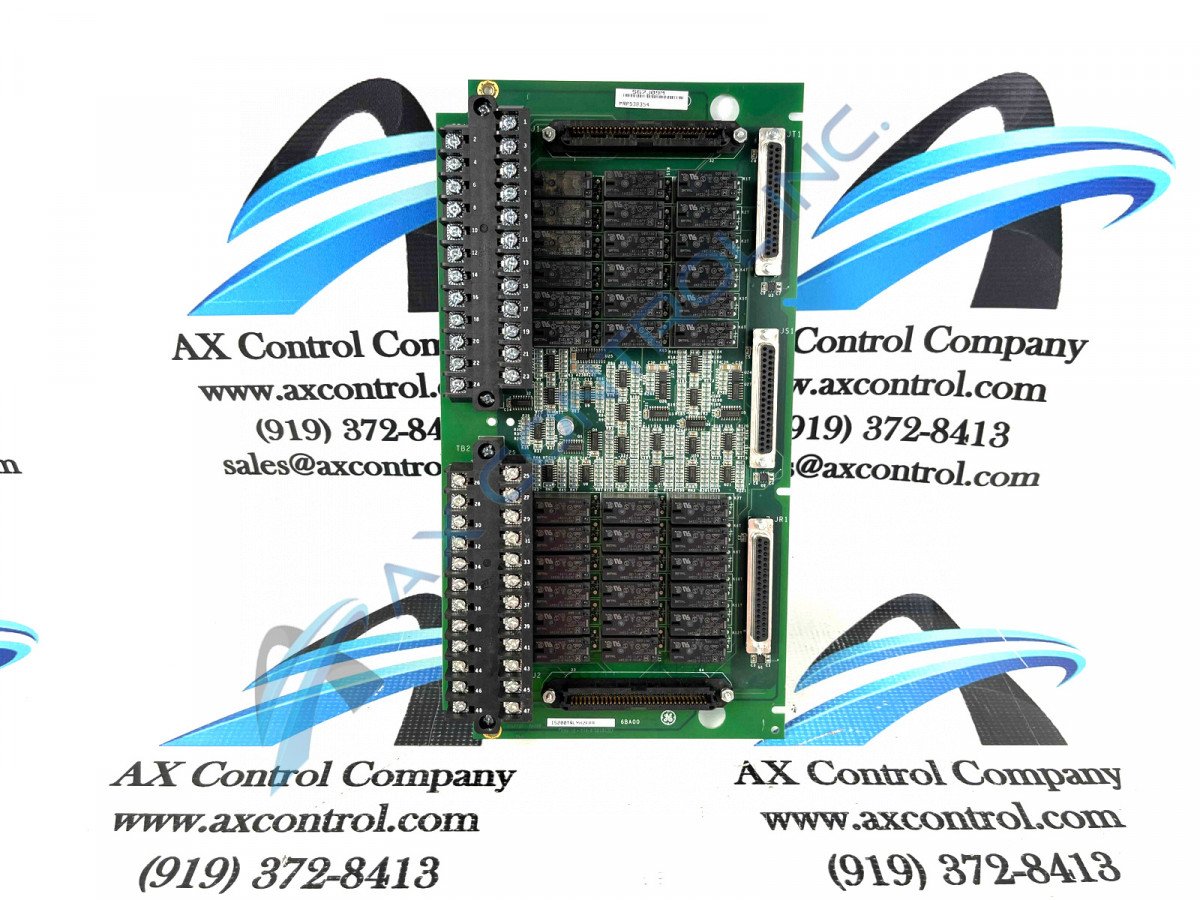

There are two male ribbon pin connectors that are on the left and right side of the card. On the topmost edge of the card, there are three female RS-232 ports. On the bottom two corners, there are two reinforced terminal holes that are factory drilled. There are two factory drilled holes in the top two corners as well. There are numerous capacitors and resistors on this board. There are a total of 36 relays on this card.

For more info about the IS200TRLYH2FAA, please see GE System Guide VOL. II: GEH-6421M. Because of its nature, antistatic procedures should be used when installing or handling this PCB.
