The IS200TRLYH1B is a Relay Terminal Board used in the GE General Electric Mark VI Turbine Control System.

Request a Quote Request Repair

AVAILABILITY:

IN STOCK
SHIPS TODAY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a IS200TRLYH1B to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: IS200TRLYH1B
SKU: IS200TRLYH1BGBTC

Manufacturer: GE Boards & Turbine Control
Series: Mark VI IS200

Description
Repairs
Warranty
Manuals

IS200TRLYH1B Technical Specifications

Feedback	Voted Coil Drive
Manufacturer	GE Energy
Power Distribution	6 Fused Branches, 1 Special Unfused
Relays	12 Form C Relays, 24 DC 3A, 125 DC .6A, 120/240 AC 3A
Part Number	IS200TRLYH1B
Product Type	Relay Terminal Board

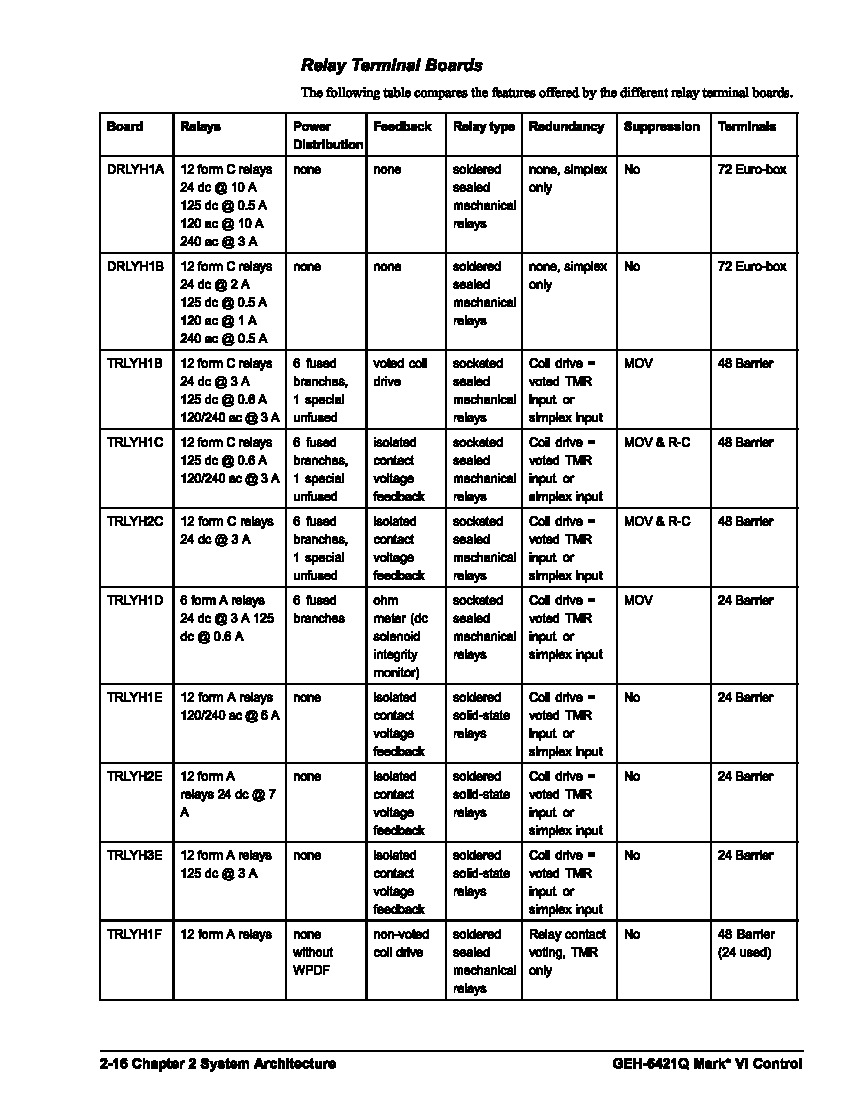

Instruction Manual	GEH-6421Q

About the IS200TRLYH1B

Basic Functional Components

The IS200TRLYH1B is a termination relay card for the Mark VI turbine control system manufactured by GE. This board is the "B" revision of the TRLY terminal relay board and features the following characteristics:

Voted Coil Drive Feedback
Socketed Sealed Mechanical Relay
MOV Suppression
48 Barrier Terminals

Hardware Tips and Specifications

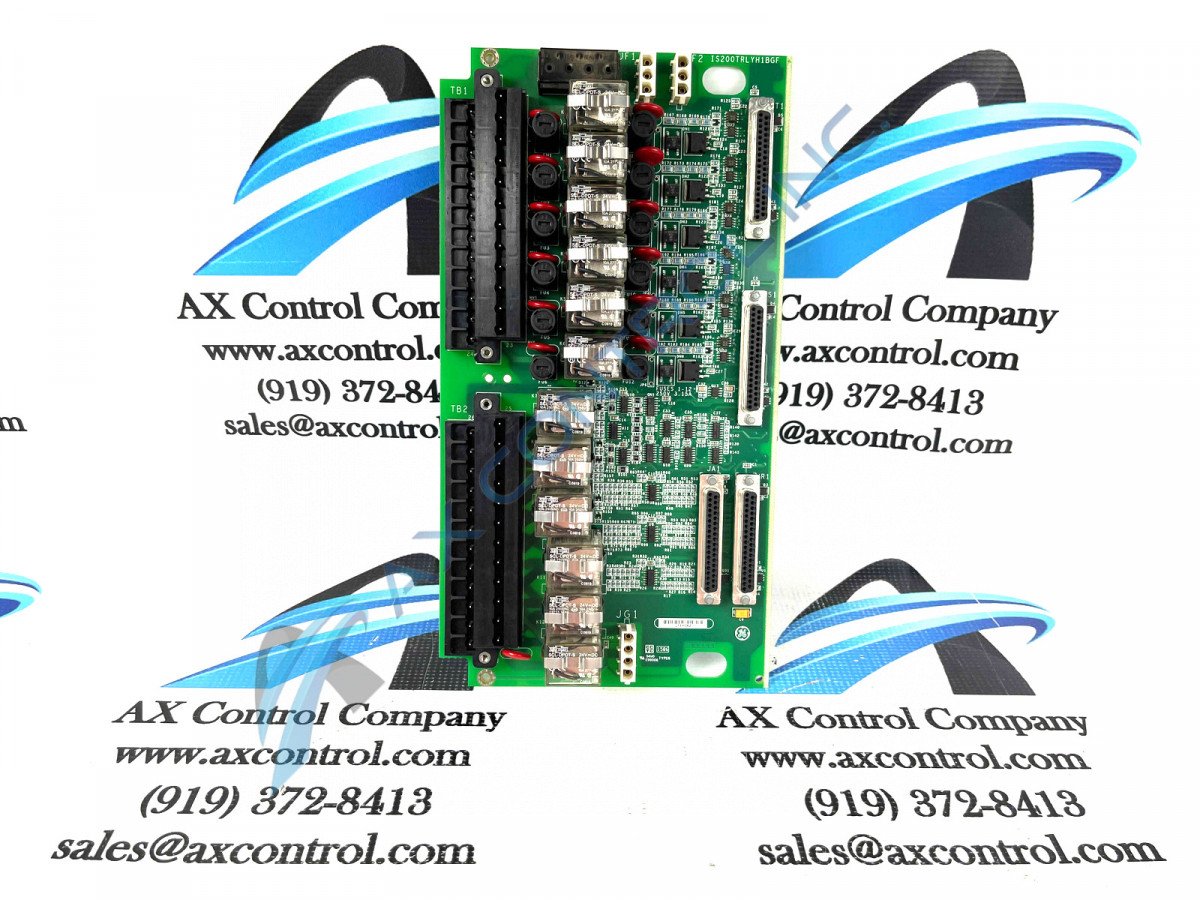

The IS200TRLYH1B contains:

two (2) large black terminal block on its left edge
- each with twenty-four (24) metal terminals which are silver
four (4) connector ports placed on the right border of the IS200TRLYH1B
a long line of relays which are white and black with transparent covers shaped like cubes
- on both sides of each relay is a black transistor which is circular
- paired together with every transistor is a round red MOV or metal oxide varistor

Five (5) of these relays are lined up vertically on the top half of the IS200TRLYH1B. Five (5) additional relays have been aligned on the PCB’s lower half.

Reviews For IS200TRLYH1B

Internal Review

(5.0)

The IS200TRLYH1B is a widely used terminal relay board in the Mark VI and Mark VIe control systems and has a low failure rate and high reliability. While the TRLYH1C does have both MOV and R-C suppression, the IS200TRLYH1B's MOV suppression is suitable for most applications. The price for this board is generally reasonable and less expensive than other revisions. 5 star board for sure. - AX Control Lead Technician

Repair Services For IS200TRLYH1B

Type	Lead Time	Price	Action
Repair Service	1-2 weeks	$645

Our highly skilled technicians can repair your IS200TRLYH1B. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:
