IS200TRLYH1F

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures 4.88 (17) Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.88 (17)
  • Click a star to rate this product

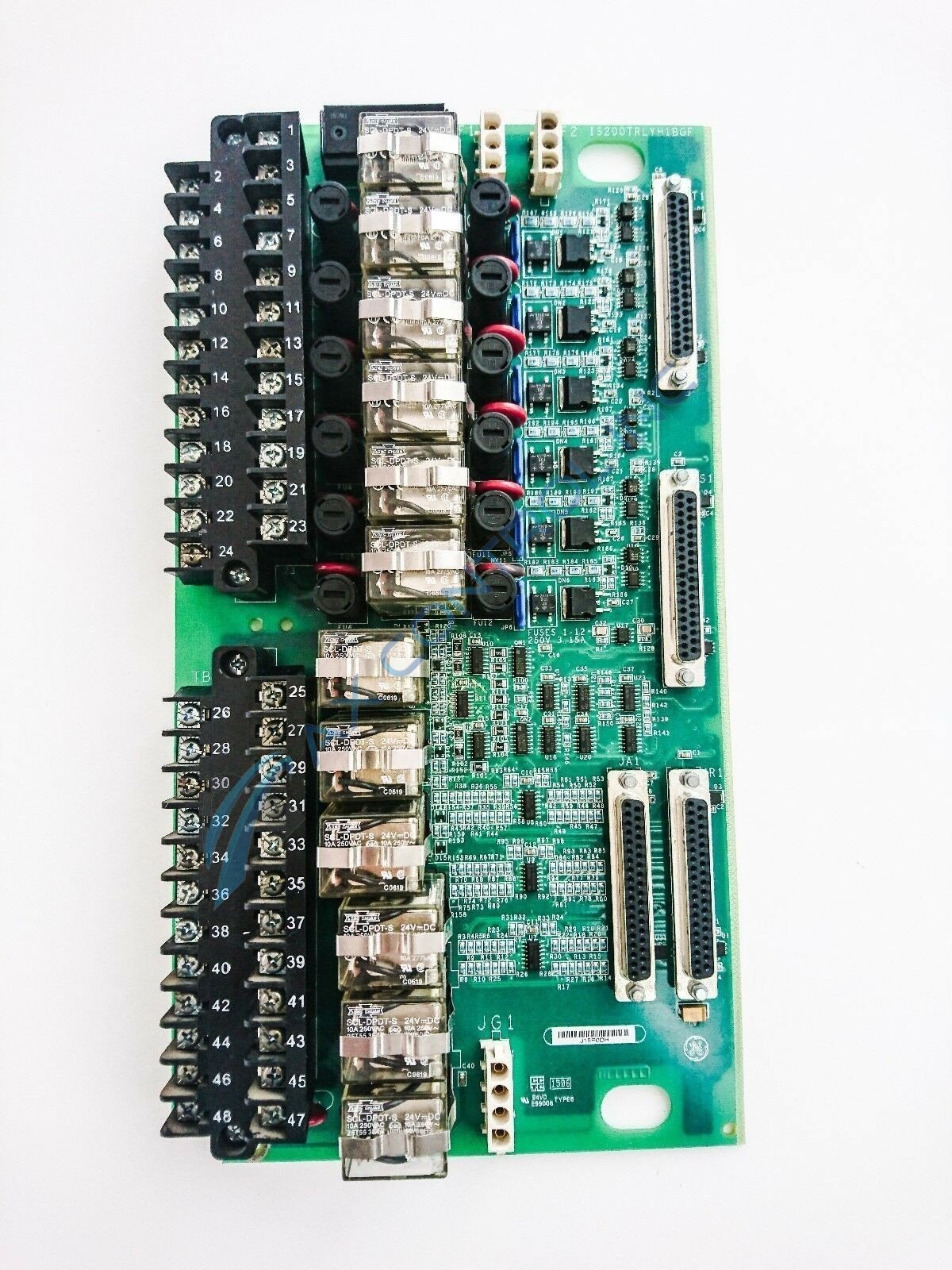

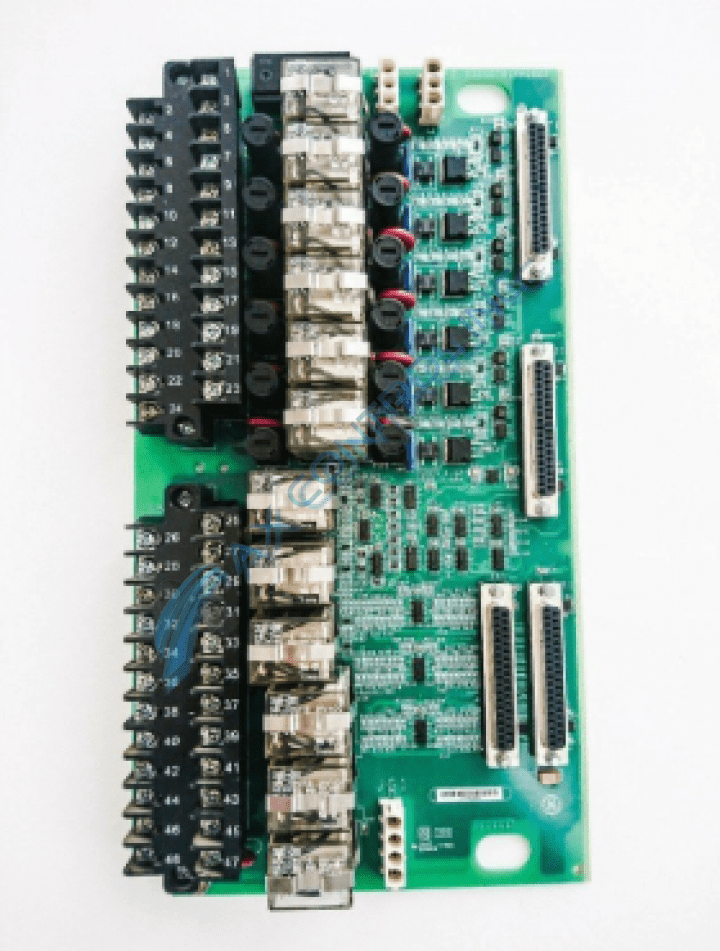

The IS200TRLYH1F Relay Output Terminal Board was manufactured for General Electric's Mark VI Turbine Control System Series.

Repair
$865
SKU: 427MVI1
3 Year Warranty:

* Learn More About Product Conditions
* Posted pricing available for website purchases only.

Product Conditions

New Surplus Factory Package: A completely unused product that is in the original factory package. The package may have been opened for the purpose of pictures, but the product has never been used or installed.

New Surplus AX Control Package: A completely unused product that has been removed from the original factory package. Often due to shelf wear or previous shipping, the factory package is not adequate and must be replaced with an ideal AX Control product package.

Reconditioned: All products that qualify as reconditioned have completed AX Control's thorough and detailed QA process and meet the requirements of excellent working condition and excellent cosmetic condition.

About the IS200TRLYH1F

Hardware Tips and Specifications

The IS200TRLYH1F is a Relay Output terminal board with TMR contact voting. The board has:

  • twelve sealed relays in each TMR section, with a total of thirty-six relays on the board
  • a voted Form-A (NO) contact
  • 24/125 V dc or 115 V ac power
  • thirty-six sealed relays (previously mentioned,)
  • two terminal boards (TB1 and TB2,)
  • three DC-37 pin connectors (JR1/JS1/JT1,)
  • two DC-64 pin connectors (J1 and J2,) that both connect to optional power distribution daughterboards

 This specific IS200TRLYH1F Relay Output Terminal Board product is actually not the originally-developed device of its specific GE Mark VI Series functional role, as that would have to be deemed the IS200TRLYH1 parent Relay Output Terminal Board not utilizing this IS200TRLYH1F Relay Output Terminal Board product's sole F-rated functional product revision.


IS200TRLYH1F Product Number Analysis

The IS200TRLYH1F has no jumpers or hardware settings. Several diagnostics are run on the board, including voltage to each relay coil, voltage across each solenoid power supply, and reading of the board’s ID chip for mis-match.

The IS200TRLYH1F Relay Output Terminal Board functional product number serves to describe both this IS200TRLYH1F Relay Output Terminal Board device's normal Mark VI Series assembly type as well as its domestic original GE manufacture. Some of the other TRLY Board qualities indicated through this typical medium are its:

  • TRLY functional product acronym
  • Conformal PCB coating style
  • Group one Mark VI Series product grouping
  • Sole product revision

IS200TRLYH1F Technical Specifications

Manufacturer General Electric
Series Mark VI Speedtronic
Part Number IS200TRLYH1F
Product Type IS200TRLYH1F Relay Output Terminal Board
Functional Abbreviation TRLY
Revision Total 1 Revision
Assembly Type Normal Assembly

Frequently Asked Questions about IS200TRLYH1F

Where was this IS200TRLYH1F Relay Output Terminal Board first manufactured?

This IS200TRLYH1F Relay Output Terminal Board PCB was domestically-manufactured in General Electric's Salem, Virgnia factory plant location.

What does this IS200TRLYH1F Relay Output Terminal Board product's conformal PCB coating really act like?

This IS200TRLYH1F Relay Output Terminal Board product's conformal PCB coating is a thin layer of chemically-applied PCB protection made available to this IS200TRLYH1F Relay Output Terminal Board device's whole base printed circuit board.

Reviews For IS200TRLYH1F

Internal Review
(5.0)

A primary, obvious benefit to a purchase of the IS200TRLYH1F is its complete collection of component board relays; this model features thirty-six in total. Beyond this initial staggering relay option, the IS200TRLYH1F PCB comes upgraded by a specialized "F" functional revision, altering the performance of this printed circuit board greatly. This part should be quite recognizable through its industry-indexed functional acronym; TRLY. This IS200TRLYH1F Relay Output Terminal Board's F-rated revision is quite rare. Repair or replace today. - AX Control Lead Technician

IS200TRLYH1F Technical Specifications

Manufacturer General Electric
Series Mark VI Speedtronic
Part Number IS200TRLYH1F
Product Type IS200TRLYH1F Relay Output Terminal Board
Functional Abbreviation TRLY
Revision Total 1 Revision
Assembly Type Normal Assembly

About the IS200TRLYH1F

Hardware Tips and Specifications

The IS200TRLYH1F is a Relay Output terminal board with TMR contact voting. The board has:

  • twelve sealed relays in each TMR section, with a total of thirty-six relays on the board
  • a voted Form-A (NO) contact
  • 24/125 V dc or 115 V ac power
  • thirty-six sealed relays (previously mentioned,)
  • two terminal boards (TB1 and TB2,)
  • three DC-37 pin connectors (JR1/JS1/JT1,)
  • two DC-64 pin connectors (J1 and J2,) that both connect to optional power distribution daughterboards

 This specific IS200TRLYH1F Relay Output Terminal Board product is actually not the originally-developed device of its specific GE Mark VI Series functional role, as that would have to be deemed the IS200TRLYH1 parent Relay Output Terminal Board not utilizing this IS200TRLYH1F Relay Output Terminal Board product's sole F-rated functional product revision.


IS200TRLYH1F Product Number Analysis

The IS200TRLYH1F has no jumpers or hardware settings. Several diagnostics are run on the board, including voltage to each relay coil, voltage across each solenoid power supply, and reading of the board’s ID chip for mis-match.

The IS200TRLYH1F Relay Output Terminal Board functional product number serves to describe both this IS200TRLYH1F Relay Output Terminal Board device's normal Mark VI Series assembly type as well as its domestic original GE manufacture. Some of the other TRLY Board qualities indicated through this typical medium are its:

  • TRLY functional product acronym
  • Conformal PCB coating style
  • Group one Mark VI Series product grouping
  • Sole product revision

Frequently Asked Questions about IS200TRLYH1F

Where was this IS200TRLYH1F Relay Output Terminal Board first manufactured?

This IS200TRLYH1F Relay Output Terminal Board PCB was domestically-manufactured in General Electric's Salem, Virgnia factory plant location.

What does this IS200TRLYH1F Relay Output Terminal Board product's conformal PCB coating really act like?

This IS200TRLYH1F Relay Output Terminal Board product's conformal PCB coating is a thin layer of chemically-applied PCB protection made available to this IS200TRLYH1F Relay Output Terminal Board device's whole base printed circuit board.

Reviews For IS200TRLYH1F

Internal Review
(5.0)

A primary, obvious benefit to a purchase of the IS200TRLYH1F is its complete collection of component board relays; this model features thirty-six in total. Beyond this initial staggering relay option, the IS200TRLYH1F PCB comes upgraded by a specialized "F" functional revision, altering the performance of this printed circuit board greatly. This part should be quite recognizable through its industry-indexed functional acronym; TRLY. This IS200TRLYH1F Relay Output Terminal Board's F-rated revision is quite rare. Repair or replace today. - AX Control Lead Technician
