The IS200TBDGH2AAA is a board component designed for the Mark VI Speedtronic turbine control system.

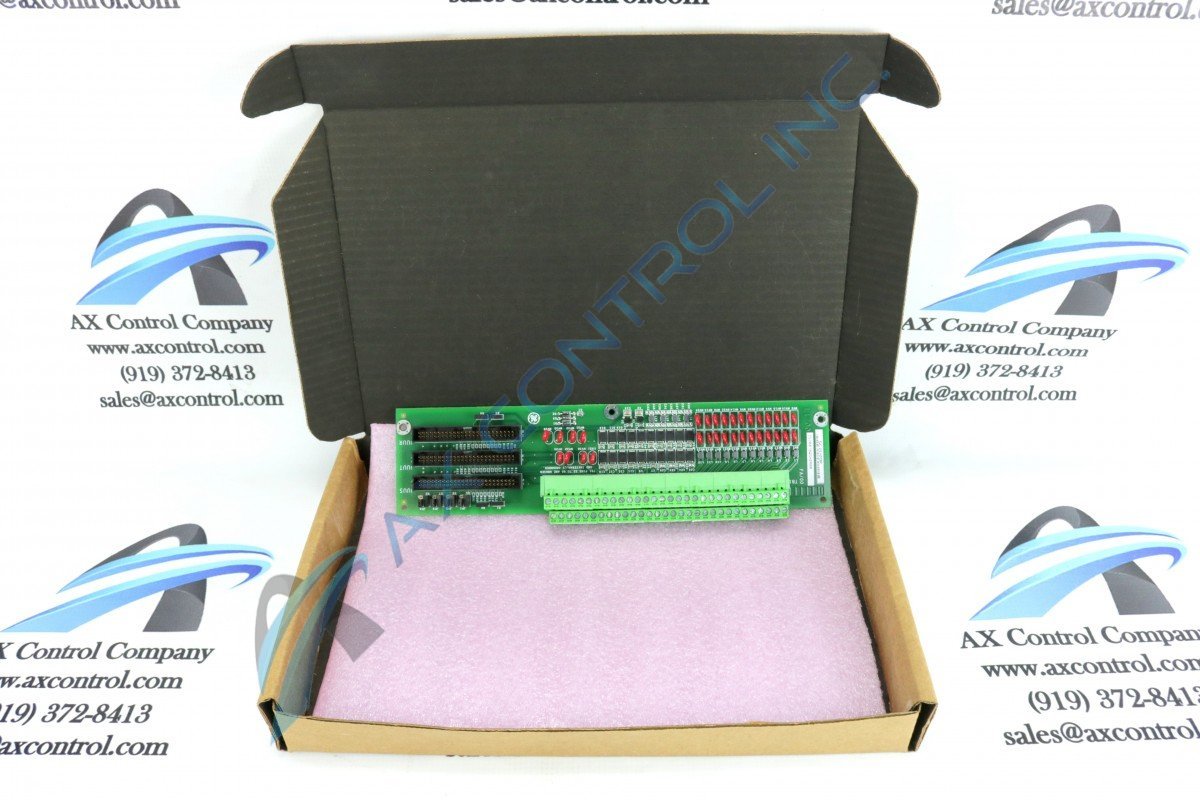

The IS200TBDGH2AAA is designed as a long and narrow board. The board is primarily designed as a terminal board that allows for multiple connection points and for electrical signals to be passed through from point to point within the system. Components include a double-level terminal strip with multiple screw mounts, four lines of metal oxide varistors (MOVs), two lines of fuses, as well as other components like capacitors, diodes, and resistors. The board is marked with the board ID number and with the General Electric logo to ensure authenticity. Most of the board components carry a printed reference designator. They may also carry an original manufacturer code that will allow you to pull up an additional data sheet for more information.
The IS200TBDGH2AAA circuit board is drilled in each corner and along each long edge at the center of its length. Three of these holes are ringed with a conductive material. The board also carries codes on its surface that will help with board placement and with board wiring.
Additional information regarding this board component’s use or about the Mark VI system, in general, can be sourced from original documentation from the OEM. This includes datasheets, product manuals, and user guides. Please read through these documents before unboxing your new purchase to ensure you understand all handling instructions, including any possible dangers related to the equipment. Some Mark VI components may require special handling for safety reasons.
