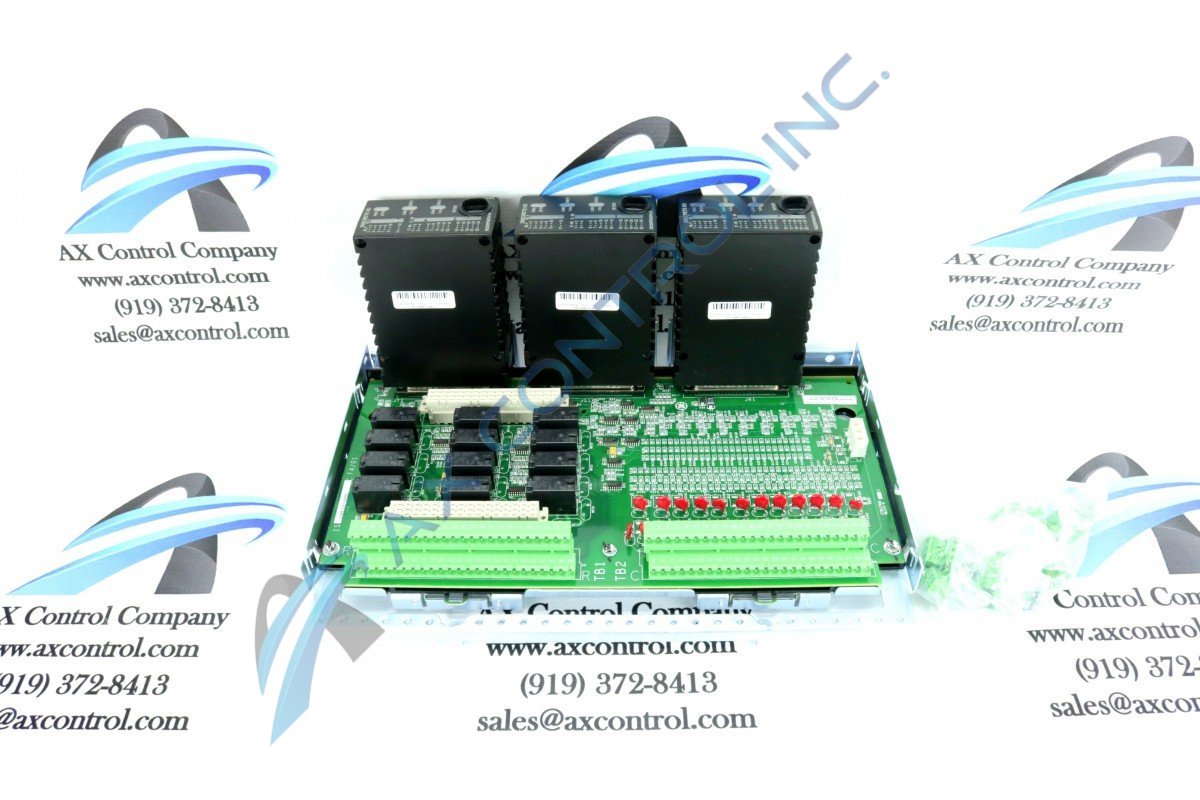

About the IS200TBCIS3CBD
This model is described as a Contact Input with Group Isolation Terminal Board. When operated, the unit will accept twenty-four dry contact inputs while wired to two barrier-type terminal blocks. There are several different control systems that the TBCI model can be used. The associated control systems are Mark VI but also include Mark VIe and Mark VIeS control systems.
When the TBCI model is used in the Mark VIeS control system the TBCIS1C, TBCIS2C, and TBCIS3C models are all safety certified. One feature of the IS200TBCIS3CBD model is that it can be used with several board types, it can be used with the Mark VIe IS220PDIA and Mark VIeS IS200YDIA models and all of the associated models with the PDIA and YDIA units.
IS200TBCIS3CBD Part Number
The IS200TBCIS3CBD functional product number begins with the dual-functional IS200 series tag delegating this IS200TBCIS3CBD product's normal mark VI Series assembly version on top of its even more standard domestic original location of General Electric manufacture. Some of the other relevant details revealed through this product number include the IS200TBCIS3CBD PCB's:
- TBCI functional product acronym
- Group Three Mark VI Series grouping
- Three-fold significant revision history
IS200TBCIS3CBD Connections and Literature
The IS200TBCIS3CBD model can be used in both Simplex and Triple Modular Redundant (TMR) systems; when the TBCI model is used in TMR systems the cable will connect to the I/O processors using JS1, JT1, and JR1 connectors. When the model is used in Simplex systems the I/O processor will only be connected through the JR1 connector. When the model is used in Mark VIe/VIeS systems the associated I/O packs will plug directly into the TBCI model and will then attach to the side-mounting brackets. The firmware on the IS200TBCIS3CBD model may need to be downloaded to properly operate the unit.
More information on the TBCI unit can be found in the attached GEH-6721L manual which gives detailed information on all of the TBCI revisions. This IS200TBCIS3CBD printed circuit board product offering from General Electric or just PCB for short is actually not the originally-developed device of its specific Mark VI Series functional role, as that would have to be considered the IS200TBCIS3 parent Contact Input Terminal Board notably not utilizing this IS200TBCIS3CBD product's full three-fold revision history.
