This IS200RAPAG1BCA Rack Power Supply Board

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a IS200RAPAG1BCA to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: IS200RAPAG1BCA
  • SKU: GBTC-53524
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark VI IS200

IS200RAPAG1BCA Technical Specifications

Part/Model Number IS200RAPAG1BCA
Revision BCA
Product Type Rack Power Supply Board
Type Modular with Faceplate
Original Manufacturer General Electric
Assembly Type Normal Assembly
Manufacturer Location Domestic

About the IS200RAPAG1BCA

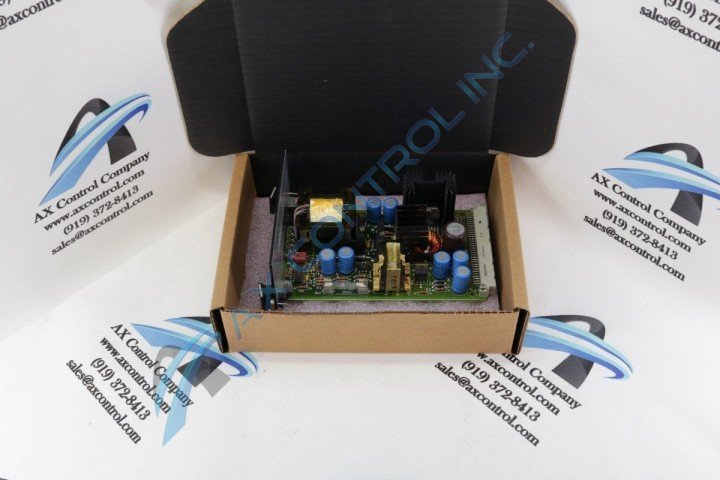

The IS200RAPAG1BCA mounts into an Innovation Series Rack system. The board provides dc control voltages for other boards within the rack via its P1 connector. The IS200RAPAG1BCA has a wide front faceplate attached to its surface using screw connectors. The faceplate is two slots wide and includes several mounted components, including two LEDs and a reset button.  The faceplate has an opening that allows operators to access four test points. It also has two mounting clips, one that carries the GE logo and the other marked with the board number, that help secure the board within the rack system once installed. The board surface of the IS200RAPAG1BCA is populated by heat sinks, capacitors, resistors, an inductor coil, and a 1 amp 250 V fuse. The board has a serial 1024-bit memory device that maintains revision information and board ID.  This can be accessed via the P1 connector through the BRDID data line. Additional information about board function, installation, or specifications may be found through GE user guides and manuals.  These publications have detailed information regarding proper handling and procedures, as well as necessary precautions.


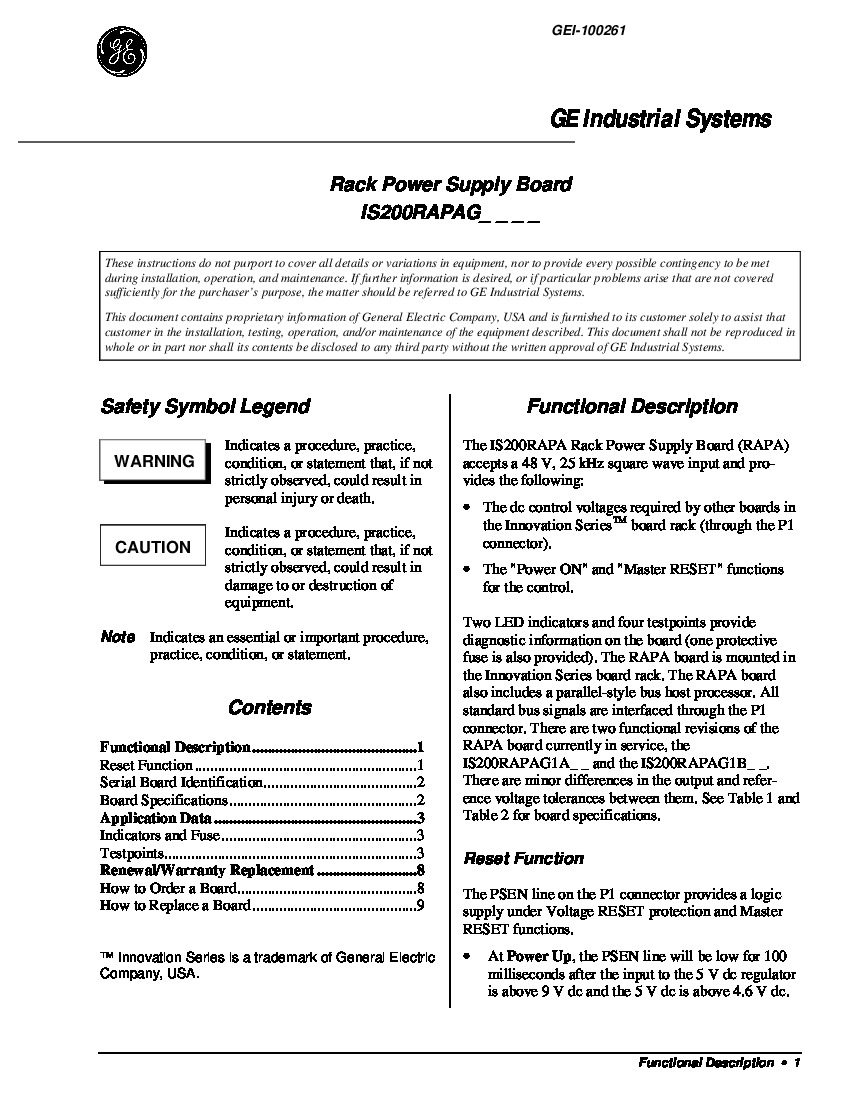

IS200RAPAG1BCA Voltage Specifications

Unlike the majority of General Electric Mark VI Turbine Control System Series products made available to our extended new and reconditioned inventory here, this IS200RAPAG1BCA device is actually well-contextualized online within a series of relevant originally-printed instructional manual materials. With this being true, the actual significance of this IS200RAPAG1BCA product's Group One Mark VI Series product grouping can be explored. Some of this IS200RAPAG1BCA device's Group One Mark VI Series grouping-dependent specifications include its:

  • 48 V dc squarewave, ±10% range
  • 25 kHz, ±10% frequency
  • Output Load-dependent load
  • OC 1K pull-up, Low = Reset PSEN Output with a 100 millisecond maximum

Frequently Asked Questions about IS200RAPAG1BCA

What particular styles of Mark VI Series revisions does this IS200RAPAG1BCA product use?

This IS200RAPAG1BCA PCB is edited through two functional product revisions and a sole artwork configuration revision.

What is the true function of the RAPA functional acronym?

The RAPA functional acronym was created to exist as a convenient functional shorthand alternative to the lengthy IS200RAPAG1BCA product number for use in promotional settings.

Reviews For IS200RAPAG1BCA

Internal Review
(5.0)

This board includes an embedded serial 1024-bit memory device. This has pre-programmed memory that includes the board identification and revision information. This information can be accessed through the P1 connector via a single data line (BRDID.) The IS200RAPAG1BCA printed circuit board device here is edited through a full three-fold revision history, aunque only this IS200RAPAG1BCA device's primary B and C-rated functional revisions can be considered backwards-compatible given their functional style statuses. - AX Control Lead Technician
