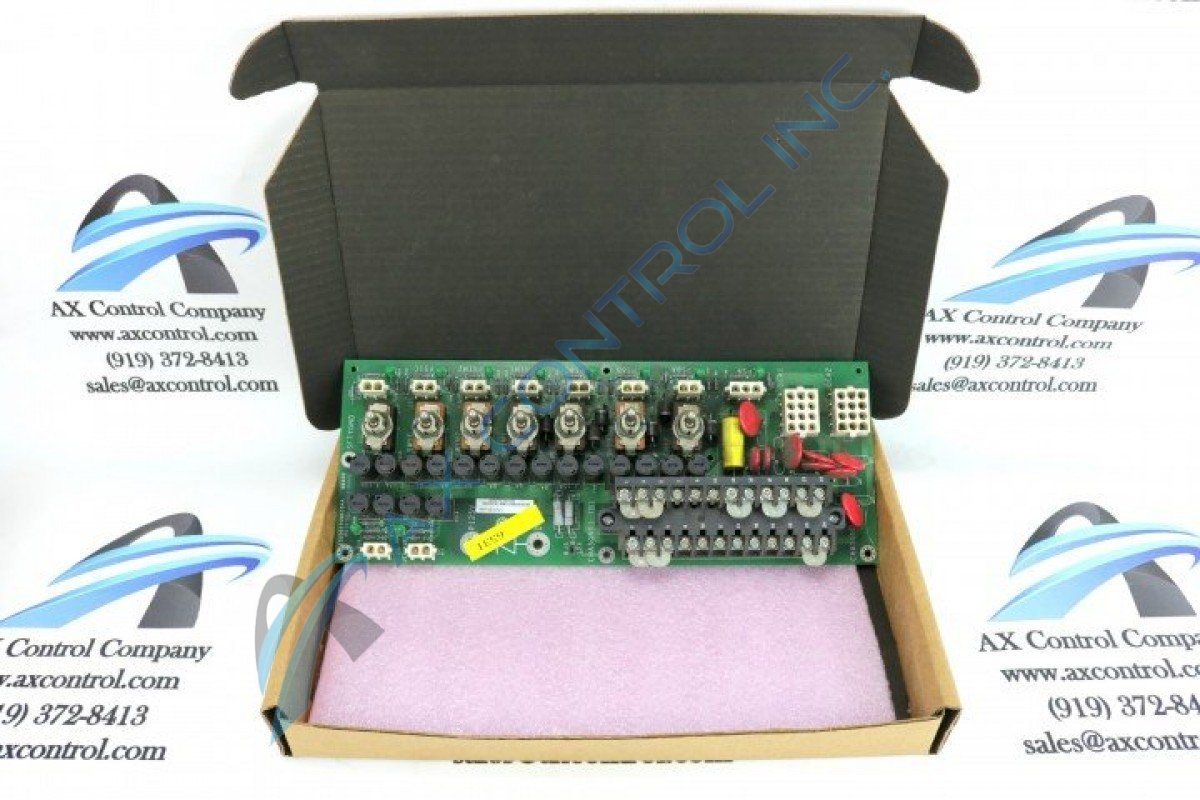

About the IS200EPDMG1AAA
The IS200EPDMG1AAA is an Exciter Power Distribution Module within the greater Mark VI Turbine Control System Series automated drive assembly that it was in fact originally manufactured for specifically. The module is mounted on the side of another board (EPBP) and uses power from both AC supplies (one or two) and the 125 VDC station battery. The EPDM board is used to provide power to other boards within the system, including protection, I/O, and control boards. Any of the power supply modules can be turned off from this board using toggle switches mounted to the surface of the circuit board. There are seven toggles located on the board. Each one of these lines up with a two-position female plug. The board also has:
- additional plugs of varying sizes
- multiple fuses in two lines
- multiple metal oxide varistors
- eight LED indicators
- several codes and indicators on its surface
IS200EPDMG1AAA Exciter Power Distribution Module: By The Number
This IS200EPDMG1AAA Exciter Power Distribution Module product offering's greater Mark VI Series developed the IS200EPDMG1AAA Exciter Power Distribution Module functional product number to illustrate a number of important IS200EPDMG1AAA Exciter Power Distribution Module details through a characteristic set of consecutively-arranged functional naming elements, which is where this IS200EPDMG1AAA Exciter Power Distribution Module device's revision table was derived from. Some of the other important IS200EPDMG1AAA Exciter Power Distribution Module device qualities revealed through this popular medium include its:
- Domestic original GE manufacture location
- Normal Mark VI Series assembly version
- EPDM functional product abbreviation
- Normal PCB coating type
