IS200EPDMG1A

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.00 (2)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.00 (2)
  • Click a star to rate this product
The EPDM IS200EPDMG1A from GEs EX2100 series. This module is a power distribution module that is supplied by one/two 115 VAC and 125 VDC. When being powered the VAC and VDC are powered by a DACA module. This module will typically power an EGPA board.

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a IS200EPDMG1A to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

IS200EPDMG1A

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.00 (2)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.00 (2)
  • Click a star to rate this product
The EPDM IS200EPDMG1A from GEs EX2100 series. This module is a power distribution module that is supplied by one/two 115 VAC and 125 VDC. When being powered the VAC and VDC are powered by a DACA module. This module will typically power an EGPA board.

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a IS200EPDMG1A to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

IS200EPDMG1A Technical Specifications

Board Description Exciter Power Distribution Module (EPDM)
Board Type Power Supply Board
DC Source Supply P125V and N125V
Function Provide Power for Protection, I/O, and Control Boards
Location Mounted on the side of the EPBP
Nominal Voltages to the Ground +62.5 V and -62.5 V
Power Supply from Station Battery 125 VDC

Product Description

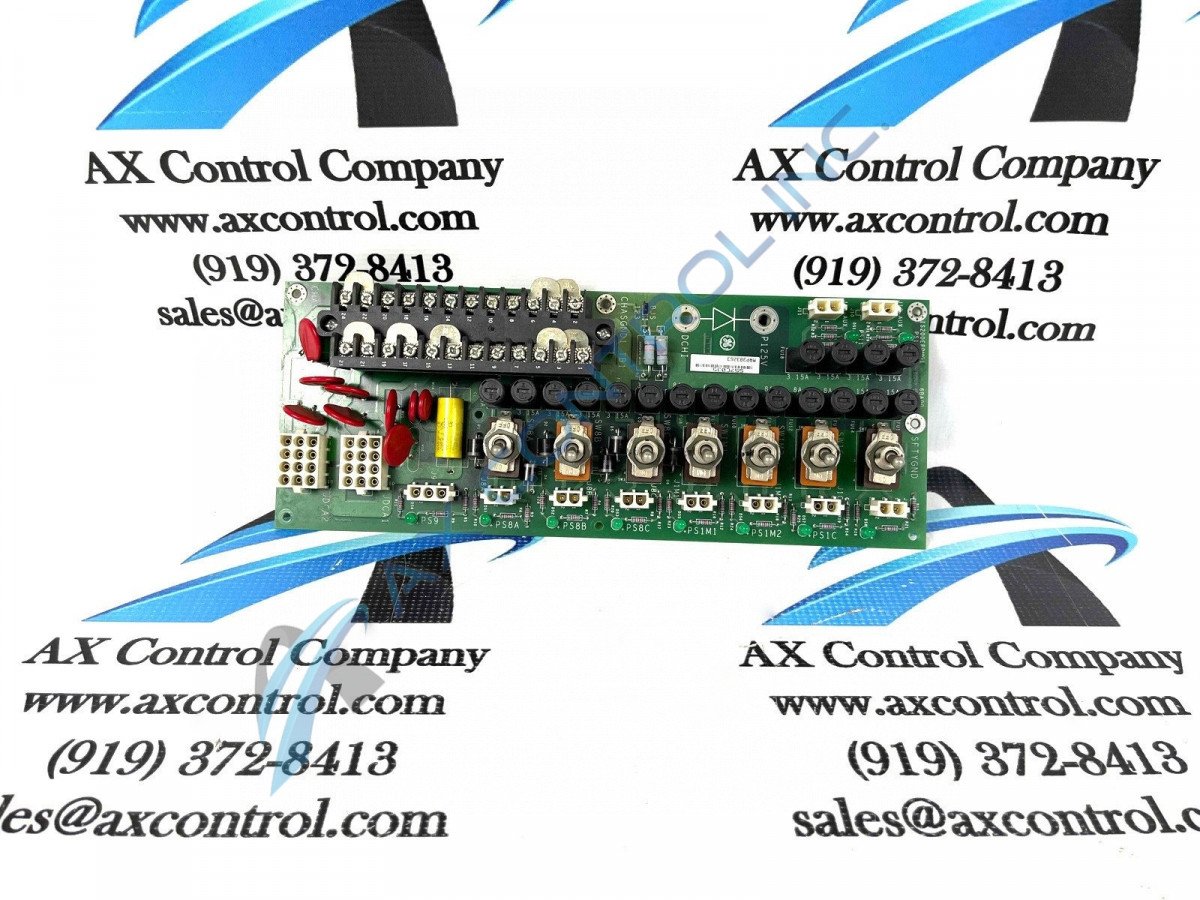

The Exciter Power Distribution Module IS200EPDMG1A is used to distribute power for the input/output terminal, protection, and control boards within the EX2100 series. Typically the module is mounted on the side of the EPBP module.

The power supply that comes through the IS200EPDMG1A must be filtered, and the VAC of 115 on the EPDM needs to filter to a VDC. To do so the IS200EPDMG1A module will be used in conjunction with a DACA module which will take the 115 VAC and filter it to 125 VDC. When the VAC has been converted to a VDC, the two or potentially three VDC will be conjoined to create the DC source supply that will be labeled as P125V and N125V. When the center has been grounded a nominal voltage of -62.5 V and +62.5 V will be apparent.

On one side of the IS200EPDMG1A board, there are seven toggle switches. There are also twelve female plug connectors, two of the connectors are twelve-position connectors. The outputs that occur on the EPDM module can be sent to three EPSM modules, an EXTB board, and up to three EGPA boards.

Reviews For IS200EPDMG1A
Internal Review

The market availability of the IS200EPDMG1A module is low, as such, if your module obtains any damage, it will likely need to be repaired quickly. If your module requires repair, our team of specialists can repair the module for you very quickly. - AX Control Technician

Repair Services For IS200EPDMG1A

Type Lead Time Price Action
Repair Service 1-2 weeks $1480

Our highly skilled technicians can repair your IS200EPDMG1A. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More
