IS200DTRTH1ABA

5.00 (2)
Click a star to rate this product

5.00 (2)
Click a star to rate this product

The IS200DTRTH1ABA model is labeled by General Electric as a Simplex DIN-Rail Mounted Trip Transition Board. The board interfaces with the VTUR and DRLY boards. While other Mark VI models have Simplex or TMR models, this unit is only available in a Simplex unit.

Request a Quote Request Repair

AVAILABILITY:

IN STOCK
SHIPS TODAY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a IS200DTRTH1ABA to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: IS200DTRTH1ABA
SKU: IS200DTRTH1ABAGBTC

Manufacturer: GE Boards & Turbine Control
Series: Mark VI IS200

Description
Repairs
Warranty
Manuals

IS200DTRTH1ABA Technical Specifications

Part Number	IS200DTRTH1ABA
Series	Mark VI IS200
Manufacturer	General Electric Company USA, GE Industrial Systems
Functional Acronym/Abbreviation	DTRT
Model Type	DIN-Rail Mounted Trip Transition Board
Storage Temperature	-40 to 158°F
Humidity	5-95% non-condensing
Weight	Approximately 1 lbs
Number of Sub-D Pin Connectors	Three
Number of Female Plug Connectors	1

Frequently Asked Questions about IS200DTRTH1ABA

What type of module is the IS200DTRTH1ABA?

The IS200DTRTH1ABA model is referred to as a box-type Simplex DIN-Rail Mounted Trip Terminal Transition Board. When used in the Mark VI IS200 series, it will interface with the VTUR Turbine Control board alongside the Simplex Wall Mounted Relay Output Terminal Board (DRLY). Up to six trip functions are allowed by the DTRT board on the VTUR to interface with the DRLY model compared to the normal TRPG board. Please note that only a Simplex version is available in this model.

Is the IS200DTRTH1ABA model always required when using VTUR or DRLY models?

Yes! Whenever the VTUR and DRLY models are used together, the IS200DTRTH1ABA model is always required; even if the chosen application requires a single VTUR model, the DTRT cannot be eliminated, potentially eliminating the DTRT model from a VTUR application can cause potential faults of the drive.

What are the characteristics of the DTRT model?

The main characters of the DTRT model are the Form C contacts and the transition between the DRLY and VTUR boards.

Product Description

The Simplex DIN-railed Mounted Trip Transition Board IS200DTRTH1ABA is used to interface to the VTUR board alongside the DRLY board in the General Electric Mark VI Series. This model also permits up to six trip functions on the VTUR board which will interface with the DRLY model rather than the TRPG module. With some of the connectors on the DTRT board, there is the possibility for up to two VTUR boards to be connected. If two VTUR boards have been connected to the DTRT board, there is the possibility for the VTUR boards to control six relays.

For every application in which a trip system between the DRLY and VTUR model is used, the IS200DTRTH1ABA model must also be used. Note that if only one VTUR model is required, under no circumstances can the DTRT be eliminated.

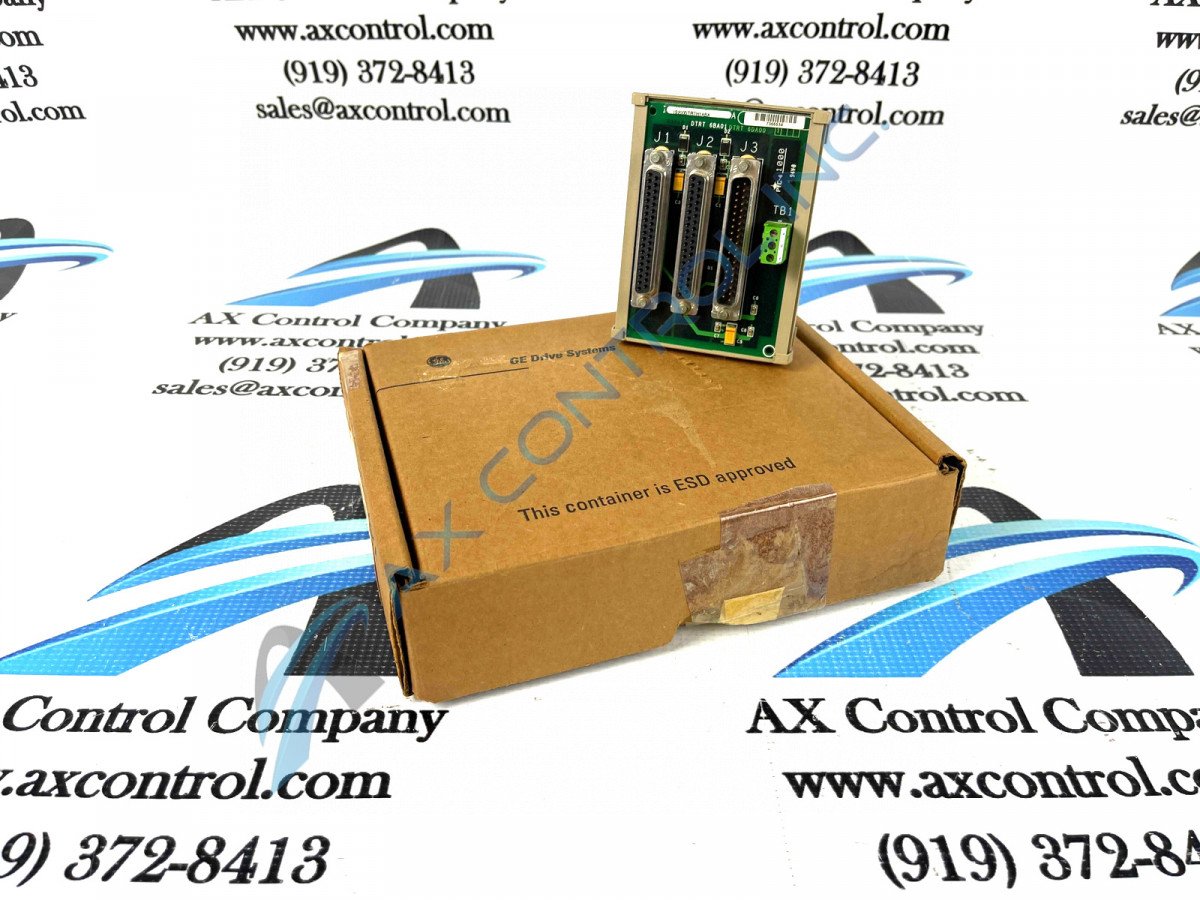

The main components of the DTRT board are three thirty-seven-pin D-type connectors. The two connectors labeled J1 and J2 are used to cable from the two VTUR boards, and the J3 connector is used to connect to the DRLY board, which has six relay circuits. On the right edge of the IS200DTRTH1ABA board, there are three screws labeled TB1. The TB1 screws are used for ground (SCOM) connection.

While there are several other redundancy types that can be used with Mark VI models, the DTRT board can only be used with a simplex redundancy type. Please note that this model is known as a termination box board, with a plastic mounting holder to allow the model to be mounted in a DIN-rail capacity.

For more information on the IS200DTRTH1ABA model, refer to the Mark VI Turbine Control GEH-6421C Instruction Manual for installation procedures.
