The IS200DSFCG1ACA model is part of the Mark VI IS200 series from General Electric. This model was designed as a 1000/1800 Amp Gate Driver/Shunt Feedback Board. This model is a revision of the G1 group, which is used in source applications where the AC input is 600 V LL rms.

Request a Quote Request Repair

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a IS200DSFCG1ACA to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: IS200DSFCG1ACA
SKU: IS200DSFCG1ACAGBTC

Manufacturer: GE Boards & Turbine Control
Series: Mark VI IS200

Description
Repairs
Warranty
Manuals

IS200DSFCG1ACA Technical Specifications

Part Number	IS200DSFCG1ACA
Series	Mark VI IS200 Turbine Control System
Manufacturer	General Electric Company USA, GE Industrial Systems
Instruction Manual	GEI-100263
Functional Acronym/Abbreviation	DSFC
Model Description	1000/1800 Amp IGBT Gate Driver/Shunt Feedback Board
Group Variation	G1
Mounting Location	Directly to Upper and Lower IGBT Modules

Frequently Asked Questions about IS200DSFCG1ACA

What are the faults that can be detected by the driver circuits on the IS200DSFCG1ACA board?

Two fault types can be detected on the IS200DSFCG1ACA model through the driver circuits. The faults are a desaturation fault and an undervoltage fault. The faults will be reported through a multiplexed differential fault for both lower and upper IGBT circuits. The undervoltage fault will be indicated when the voltage between the +15 and -15 V supplies drops below 20 V. The desaturation fault on the IS200DSFCG1ACA model will be indicated when the gate driver is commanded to turn the IGBT on, and the voltage drop between the collector and emitter of the IGBT is monitored; when the voltage exceeds 10 V for longer than four microseconds a desaturation fault will be called. When the desaturation fault has occurred on the DSFC model the BPIB board will operate the DSFC board in burst mode, where a PWM signal of 2 MHz is used to slowly decrease the gate voltage to zero.

Product Description

The IS200DSFCG1ACA is a combination IGBT Gate Driver/Shunt Feedback board from the Mark VI Speedtronic line. This series of circuit boards originally manufactured by General Electric were used in association with gas and steam turbine control systems. The IS200DSFCG1ACA is rated at 1000/1800 amps. It includes a fault detection circuit along with two IGBT gate drive circuits and a current sensing circuit. Both the feedback and driver circuits have been optically and galvanically isolated.

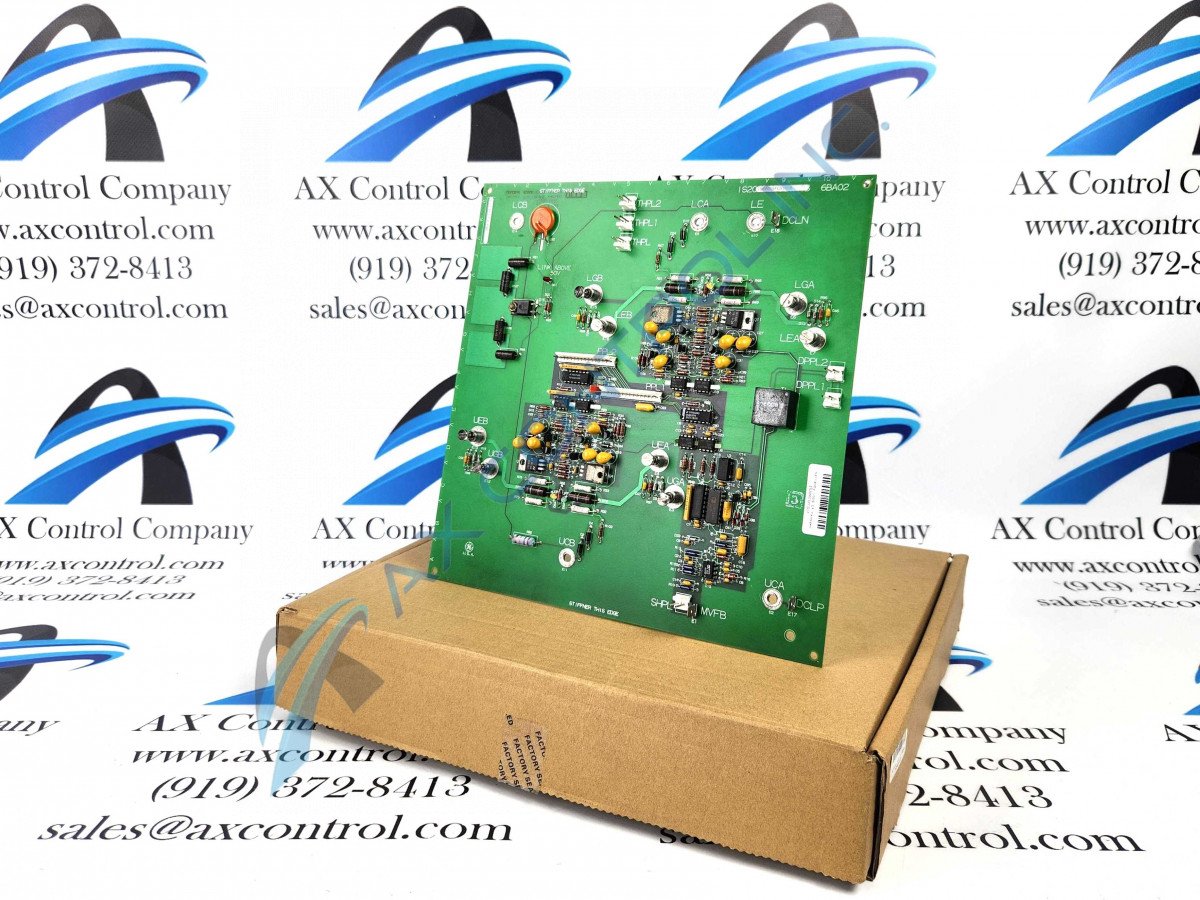

The IS200DSFCG1ACA is a nearly square circuit board with four factory-drilled mounting holes, one per corner. There are additional eyelet connectors throughout the body of the board. The board also features stab-on and plug connectors for output phase voltage sensing and DC link voltages.

Additional components on the IS200DSFCG1ACA include five LED indicators marked DS1 through DS5, which display the DC link and IGBT driver status. The board is also populated with resistors and resistor network arrays, capacitors, a transformer, over twelve integrated circuits, and three transistors. There are two LED colors on the DSFC board. The yellow LED indicates when the IGBTS are on or off; when the LED is on, it indicates that the IGBTS are driven on. The green LED will be on when the IGBTs are driven off.

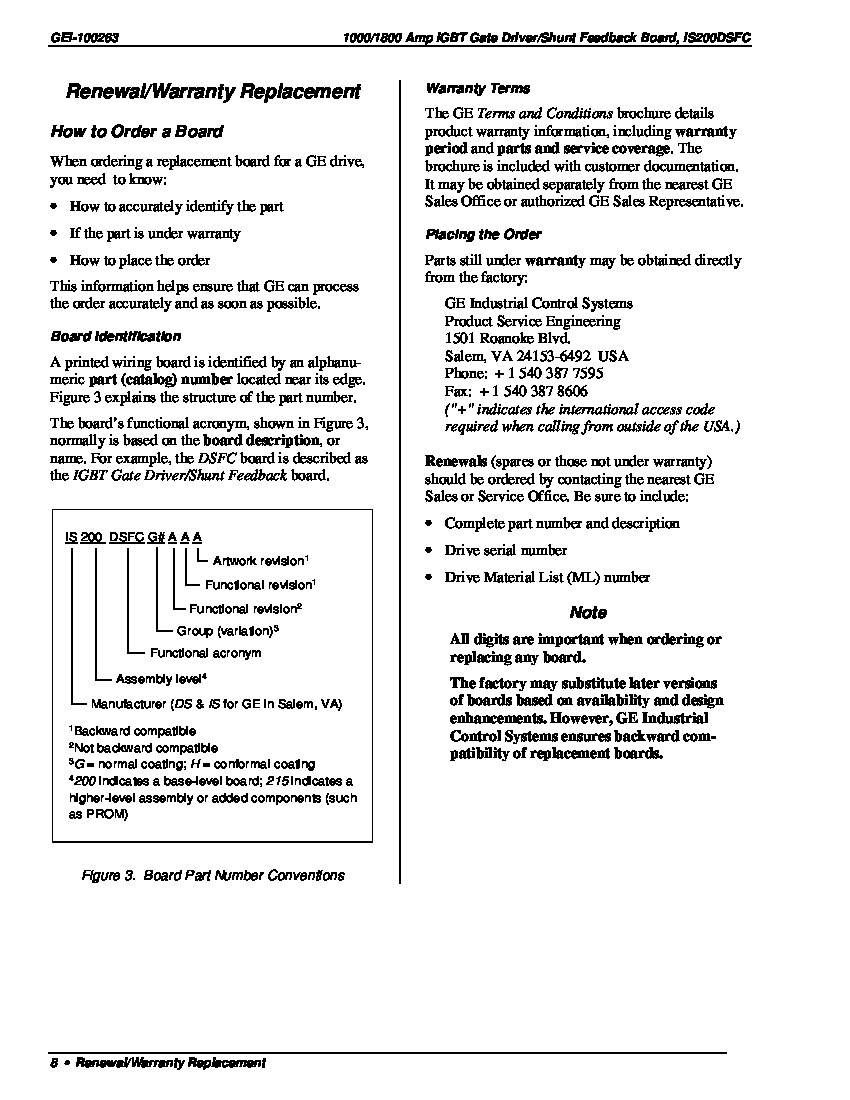

For additional information about the IS200DSFCG1ACA, including detailed information regarding proper installation and handling procedures, please refer to the GEI-100263 instruction manual. The manual also contains a block diagram of the DSFC board, which is located on page three of the manual.

Reviews For IS200DSFCG1ACA

Internal Review

(5.0)

Each of these boards contains both plug and stab-on connectors and LED indicators. The board also has mounting eyelet connectors. The board does not include configurable hardware or fuses. When the DSFC module is being used in applications where an 1800 A source bridge is used, six DSFC boards are required, with two "daisy-chained" DSFC boards per phase. - AX Control Tech
