GENERAL ELECTRIC IGBT Drive/Source Bridge Interface Board BICL

AVAILABILITY:

IN STOCK
SHIPS TODAY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a IS200BICLH1BAA to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

IS200BICLH1BAA

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
GENERAL ELECTRIC IGBT Drive/Source Bridge Interface Board BICL

AVAILABILITY:

IN STOCK
SHIPS TODAY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a IS200BICLH1BAA to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Product Description

The IS200BICLH1BAA is a GE printed circuit board manufactured as a component for the Mark VI series.  The Mark VI is the fifth iteration of GE’s Speedtronic series for gas and steam turbine management. The MKVI is designed with close coordination between hardware and software, starting with a control module with a 13- or 21-slot VME card rack.   Mark VI series is available in Simplex and Triple redundant forms for small applications and for large integrated systems with modules ranging from one to many.

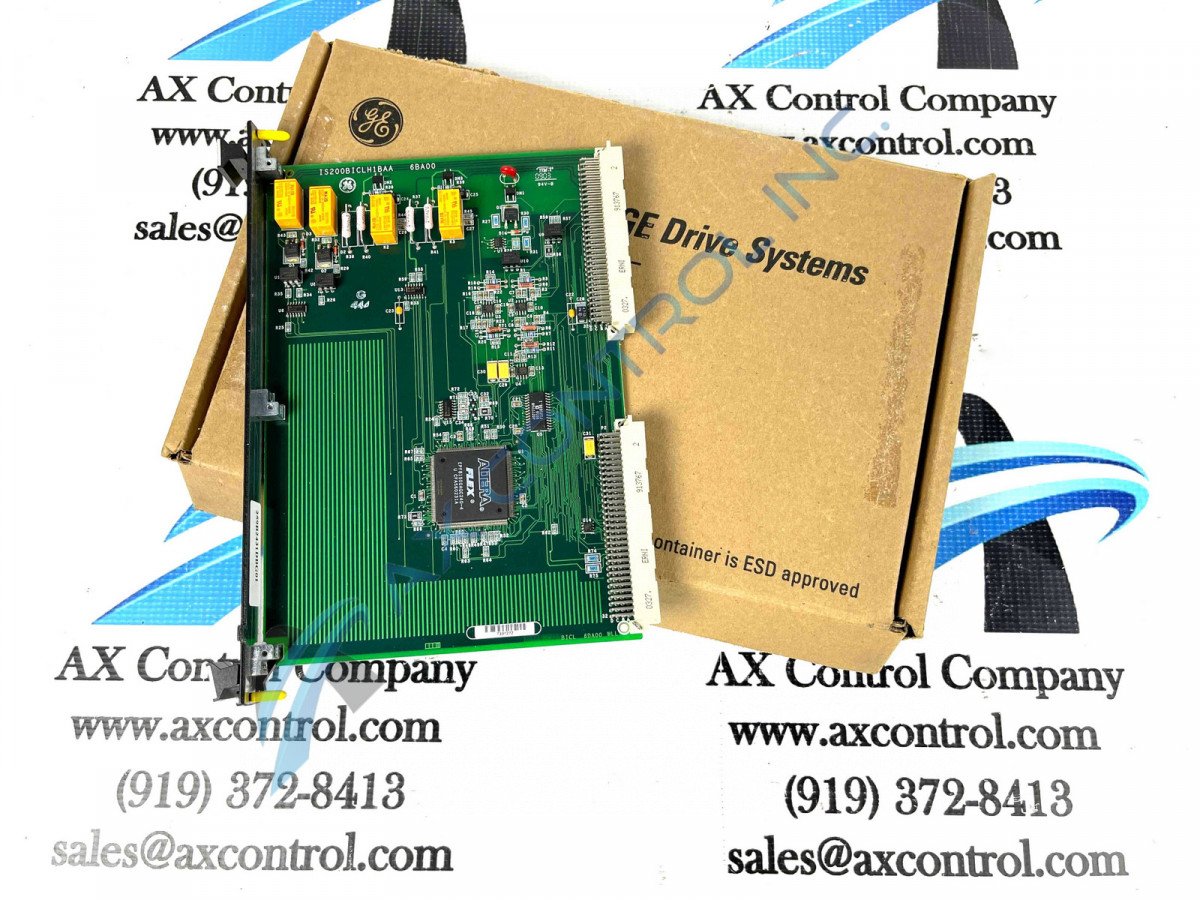

The IS200BICLH1BAA  functions as an IGBT Drive/Source Bridge Interface board.  The board interfaces between the main control board and boards like the BPIA/BPIB or the SCNV board.  The IS200BICLH1BAA also provides bridge and ambient temperature monitoring, as well as a panel and system fault string interface.   Control logic on the IS200BICLH1BAA is configured in the CPU of the main control board using an electronically programmable logic device, or EPLD.

The IS200BICLH1BAA is built with two backplane connectors.  These are marked P1 and P2. These plug into a VME type rack.  No other connectors are located on the board. The board has very few components but does have a serial 1024-bit memory device, as well as four relays.  Each relay has a relay diagram printed on its top surface. The board has no test points, fuses, or adjustable hardware.

Our warehouse team will protect the IS200BICLH1BAA with anti-static material during shipment to your facility.   The board should be treated as static-sensitive at all times. Installation procedures can be found in GE publication GEI-100264.
