About the SF-68193
Hardware Tips and Specifications

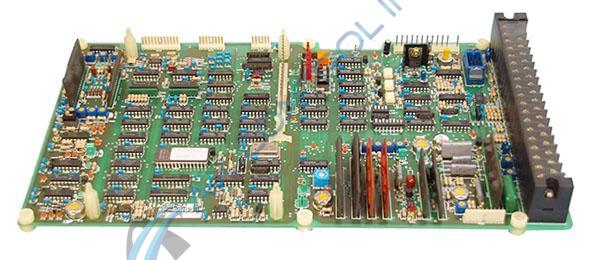

The SF-68193 is a circuit board made by Reliance Electric. The SF-68193 has in its standard Drive Boards series product assembly:
- a screw connector
- with thirty-seven screws on one of the short edges
- screws are labeled -12V, 0V, +12V, MT1, MT2, LMTF, LMTR, SLT, PGZ, PGZ -, PGA, PGA-, PGB, PGB -, -12V, 0V1, +12V1, and +0PE
- five circular potentiometers with yellow adjustable centers
- thirteen small blue variable resistors referred to as trimmers with white or yellow adjustable centers
- four large silver metal oxide resistors
- over one hundred pale blue carbon film style resistors as well
- a variety of capacitors as well from:
- polyester capacitors
- PCB mount electrolytic capacitors
- radial ceramic capacitors
The SF-68193 has about thirty-five orange raise circles with a metal “T” shaped piece coming through the centers. There are six sets of metal pins around the circuit board. Each set is secured in place using a white plastic base. The card has a total of four switches that are white in a black base.
