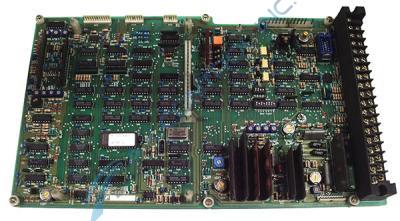

The SE-68193 ACSR-2 Board

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Sell Surplus: Have a SE-68193 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: SE-68193
  • SKU: RE-9054
  • Manufacturer: Reliance Electric
  • Series: Drive Boards

SE-68193 Technical Specifications

Manufacturer Reliance Electric
Series Drive Boards
Functional Part Number SE-68193
Functional Description SE-68193 ACSR-2 Board

About the SE-68193

The SE-68193  is a circuit board from Reliance Electric. This board is designed:

  • as a replacement part for many of the company’s drives
  • under this part number or may be listed as an ACSR-2 board
  • as a large rectangular circuit board, weighing approximately 1.50 pounds before the addition of exterior packing or shipping materials
  • to work in conjunction with optional daughterboard SB-68176 (IMS-001)
    • connects to one side of the board and mounts via four standoffs
  • to include a five-digit LED display and multiple LED indicator'

SE-68193 Hardware Tips and Specifications

The SE-68193 is heavily populated by many different kinds of board components including:

  • a two-level terminal strip
    • designed for wire attachment points to let the board communicate with other boards or devices
  • screw mounts which are labeled to indicate their proper usage
  • vertical pin connectors
  • inductors
  • multiple potentiometers
  • DIP switch components
  • jumper switches
  • a toggle switch
  • a number of integrated circuits

The board uses high-voltage surface-mounted electrolytic capacitors along with other types of capacitors, as well as diodes and various resistors. More information about this board, including handling warnings and information about proper maintenance and installation, can be found through Reliance documents like user guides and manuals. AX Control is located in central North Carolina. We service customers from around the world and typically fulfill orders for in-stock products within hours. Let us know if you require any special shipping requirements.


Frequently Asked Questions about SE-68193

Can AX Control repair my SE-68193?

Yes. This SE-68193 product offering is available for both repair and replacement here at AX Control, with a standard one to two week lead repair time.

How is voltage protection handled in the assembly of this SE-68193 product offering?

This SE-68193 device's voltage limitation is produced through its internal assembly's inclusion of Reliance Electric-standardized hardware components such as capacitors, diodes, and resistors.

Reviews For SE-68193

Internal Review
(5.0)

This SE-68193 ACSR-2 Board product offering here from Reliance Electric was first designed and manufactured specifically for the company's Drive Boards product series, and is accompanied by the typical SE series tag. This SE-68193 ACSR-2 Board device here would be protected by three full years of a guaranteed warranty after you buy it from this website here. - AX Control Lead Technician
