This SD-68193 device is a Circuit Board manufactured by Reliance Electric.

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Sell Surplus: Have a SD-68193 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: SD-68193
  • SKU: SD68193RE
  • Manufacturer: Reliance Electric
  • Series: Drive Boards

About the SD-68193

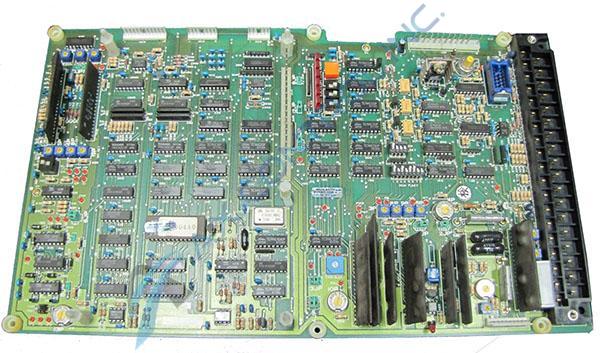

Reliance Electric is the maker of the SD-68193 control card. The SD-68193 has fifteen small blue trimmer variable resistors, nearly one hundred fixed resistors, and five large silver circular variable resistors. The circuit board connects into place using a dual level black male connection terminal on the right of the board and four white male pin connection points across the top edge with a single one on the bottom edge, with another right in the center of the circuit board and the final point is a male blue connection point near the large black terminal. There is nine large black fin like components that are capacitors. The control card also features small light blue circular radial ceramic capacitors, there are also three yellow suppressor capacitors, and a few PCB mount electrolytic capacitors. The SD-68193 has three small blocks with white switches in the center clustered together towards the center of the board and a single black box with a white switch on the left edge. There is also a wide array of transistors across the circuit board. The lower edge of the control card is also home to a single red LED light that is tucked between the black capacitor fins. The SD-68193 also utilizes signal and Zener style didoes to direct energy flow throughout the circuit board. The board has six points around the perimeter to secure it into place and each point is reinforced with a plastic ring.

Make AX Control your one stop shop for all of your automation needs.

Frequently Asked Questions about SD-68193

Can AX Control repair my SD-68193?

Yes. This SD-68193 product offering is available for both repair and replacement here at AX Control, with a standard one to two week lead repair time.

Have any factory-drilled holes been made in the base circuit board of this SD-68193 product?

Yes. The base circuit board of this SD-68193 device has been factory-drilled in several locations to support convenient and safe installation practices.

Reviews For SD-68193

Internal Review
(5.0)

This SD-68193 printed circuit board product offering from one of Reliance Electric's industry-obsolete legacy product series is not the best-defined Reliance product, due to its eventual manufacturing discontinuation extending to its instructional manuals. This SD-68193 Control Card has a singular LED indicator for diagnostic purposes, and is available for repair or replacement here today. - AX Control Lead Technician

  • O--68193

Repair Services For SD-68193

Type Lead Time Price Action
Repair Service 1-2 weeks $250

Our highly skilled technicians can repair your SD-68193. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty
