This 103779-69R Custom Control Board was manufactured by Reliance Electric.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a 103779-69R to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 103779-69R
  • SKU: 10377969RRE
  • Manufacturer: Reliance Electric
  • Series: Drive Boards

About the 103779-69R

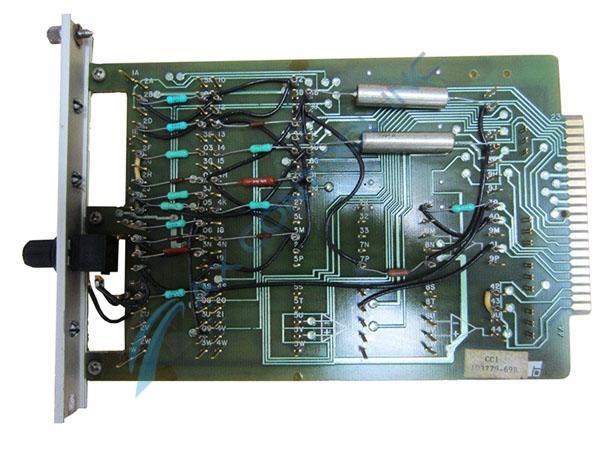

The 103779-69R is a control card created by Reliance Electric. The front panel of the 103779-69R has a small black dial with numbers written on it in white. The knob is labeled Zero SPD. Adjust. The control card is ten inches long. The control card features one hundred and twenty-nine metal pins. The pins are labeled with letters toward the front of the circuit board near the front panel, as the pins go toward the back of the card, they become labeled with numbers and letters. The circuit board also has three arrows printed on its surface in between the lines of pins with positive (+) or negative (-) signs in the centers. The control card has eleven red components. The 103779-69R has five light blue resistors with banding, and two large silver resistors with there restrictive capacity written on them. Each of the components named above is connected to the circuit board using wire and the metal pins on the card. The control card also has a large number of black wires that are connected the same way as the other components. This control card will go into a rack to operate. The card simply slides into place using the small fin in the back with the twenty-two golden tabs to communicate with the rack and then is secured using the screws on the front panel (one on the top and one on the bottom).

If you would like additional information on the 103779-69R Control Card please reach out to the staff of AX Control.

Frequently Asked Questions about 103779-69R

Have any factory-drilled holes been made in the base circuit board of this 103779-69R product?

Yes. The base circuit board of this 103779-69R device has been factory-drilled in several locations to support convenient and safe installation practices.

How is voltage protection handled in the assembly of this 103779-69R product offering?

This 103779-69R device's voltage limitation is produced through its internal assembly's inclusion of Reliance Electric-standardized hardware components such as capacitors, diodes, and resistors.
