This 0-57003 Voltage Tach Follower Board was manufactured by Reliance Electric. Resistors: Two mauve-red resistors with their resistance printed on them. One pale blue resistor with specific color stripes (dark red, bright red, dark purple, dark brown, dark green) that indicate its resistance value. Diodes: Two black signal-style diodes are present, each with a gray or silver line at one end to indicate current flow direction. A small circle on the board marks the connection point on the side with the line. Capacitor: A single capacitor labeled "C1" is included. Jumper Space: There's an empty space labeled "J1" where a component could be connected.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a 0-57003 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 0-57003
  • SKU: RE-9013
  • Manufacturer: Reliance Electric
  • Series: Drive Boards

0-57003 Technical Specifications

Manufacturer Reliance Electric
Part Number 0-57003
Series Voltage Tach Follower Board
Weight 1 lb

About the 0-57003

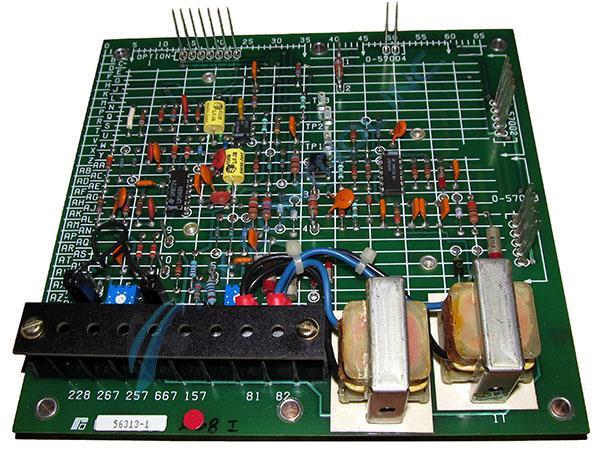

  • The 0-57003 is a compact Voltage Tach Follower Kit Mini-Pak Plus circuit board manufactured by Reliance Electric.

Key Components
  • Variable Resistor: A small yellow resistor labeled "SPD. CAL" is located on the top left of the board.
  • Polarity Indicators: Below the variable resistor, two white lines point to positive (+) and negative (-) signs.
  • Plastic Box: A large, mustard yellow plastic box is secured to the board with two flat-head screws below the polarity indicators.
  • Resistors: The board contains three resistors:
    • Two mauve-red resistors with their resistance printed on them.
    • One pale blue resistor with specific color stripes (dark red, bright red, dark purple, dark brown, dark green) that indicate its resistance value.
  • Diodes: Two black signal-style diodes are present, each with a gray or silver line at one end to indicate current flow direction. A small circle on the board marks the connection point on the side with the line.
  • Capacitor: A single capacitor labeled "C1" is included.
  • Jumper Space: There's an empty space labeled "J1" where a component could be connected.

Reviews For 0-57003

Internal Review
(5.0)

This 0-57003 printed circuit board, originally manufactured for placement in a Reliance Electric legacy product series, is truly better-describable as a Voltage Tachometer Follower Board; its official functional product description. This 0-57003 PCB is classified as a member of RE's Mini-Pak Plus Subseries, and is available here today with both repair and replacement options ready. - AX Control Lead Technician
