This 0-56303-3 Control Logic PCB was manufactured by Reliance Electric.

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Sell Surplus: Have a 0-56303-3 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 0-56303-3
  • SKU: 0563033RE
  • Manufacturer: Reliance Electric
  • Series: Drive Boards

About the 0-56303-3

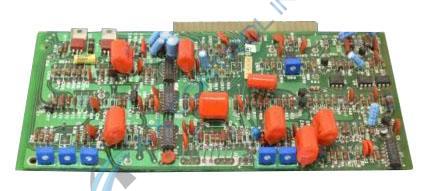

The 0-56303-3 is built by Reliance Electric as a Logic PCB circuit board. The circuit board has seven sets of two metal pins placed around the surface of the board. The 0-56303-3 has six dark blue potentiometers on the surface of the circuit board. The circuit board has two shot key diodes, fifteen Zener diodes, along with a variety of signal diodes and constant current diodes. The 0-56303-3 has at least sixteen small black transistors. The transistors connect at three points with the circuit board and are labeled with a “Q” and a number. The 0-56303-3 has well over one hundred and fifteen different types of resistors. The resistors can either be a completely solid color or have multiple colored lines going around the resistor. The circuit board also has small little raised pieces that are labeled “TP” with a number. These raised pieces have a circular white base and a small metal loop that sticks out of the top of the base. The circuit board also uses a large variety of capacitors. The capacitors range in size from tiny circular shapes to small squares and rectangles, to larger circles, squares, and rectangles, to bulbous orange blocks and black and silver towers. Regardless of their shape, they all have the ability to hold and store energy, though the amount of energy varies by the size of the capacitors. The amount of energy can easily be found out by reading the markings on the side of each capacitor.
