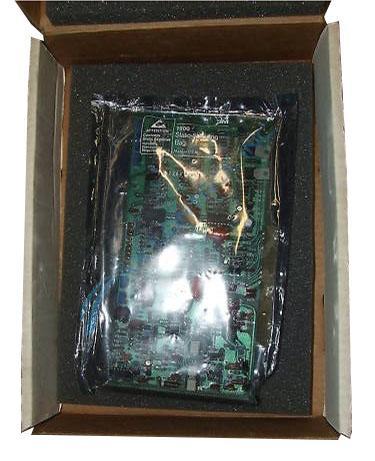

This 0-56303 Logic Control PC Board was manufactured by Reliance Electric.

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Sell Surplus: Have a 0-56303 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 0-56303
  • SKU: 056303RE
  • Manufacturer: Reliance Electric
  • Series: Drive Boards

About the 0-56303

Reliance Electric is the maker of the 0-56303, which is a logic control printed circuit board. This circuit board is long and narrow, with a lot of small components. The circuit board has eight integrated circuits. These integrated circuits purpose is to control the activities of the circuit board. The circuit board has fourteen transistors that are black. The circuit board has seven large square capacitors that have a bubble shape (they look like oversized chiclets gum), there are four light blue square capacitors (that look like normal chiclets gum), there is also eight small orange balloon-like ceramic capacitors, there are two large dark blue balloon-shaped ceramic capacitors, and there are thirty capacitors that look like circles that are either darker reddish brown or a mustard yellow in color. There are six white boxes on the circuit board as well who have numbers written on the tops. On this small circuit board, there is also over one hundred resistors which are labeled “R” and a number on the circuit boards surface. The circuit board has over thirty-four diodes as well, these diodes vary from pin diodes, point contact diodes, Zener diodes, shot key diodes and signal diodes. The diodes are labeled “CR” and a number on the circuit boards surface. The circuit board also has the Reliance Electric emblem printed next to the part number (0-56303) of the circuit board. The circuit board also has fourteen gold metal pins in white bases.

Allow the talented staff at AX Control help you today.

Frequently Asked Questions about 0-56303

Would this 0-56303 device be protected by any warranty upon my purchase here?

Yes. Immediately upon your original purchase from AX Control, this 0-56303 product and many others would be considered protected by our guaranteed three-year warranty.

How is voltage protection handled in the assembly of this 0-56303 product offering?

This 0-56303 device's voltage limitation is produced through its internal assembly's inclusion of Reliance Electric-standardized hardware components such as capacitors, diodes, and resistors.
  • O-56303

Repair Services For 0-56303

Type Lead Time Price Action
Repair Service 1-2 weeks $383

Our highly skilled technicians can repair your 0-56303. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty
