0-55308

Product Description

The 0-55308 module is a buss clamp card that was made by Reliance Electric. The 0-55308 buss clamp card is no longer being manufactured by Reliance Electric, but we here at AX Control continue to supply this device to our customers despite scarcity. You will typically be able to order this product from us, but be sure to check if the 0-55308 buss clamp card is currently in stock by using our website or by contacting us via email or phone.

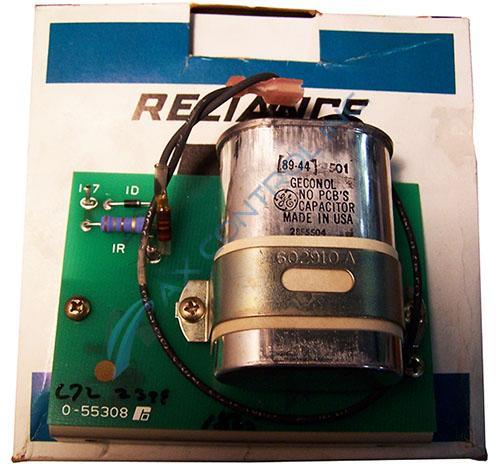

The 0-55308 buss clamp card is a printed circuit board that has a square shape and only a few components on its surface. The most noticeable part of the 0-55308 buss clamp card is the large capacitor on that is positioned on the right side. This capacitor takes up the majority of the space on the small board. The capacitor is held in place thanks to a metal band that is screwed down to the board. At the top of the capacitor, there are two long wires. One of the wires connects to a tab to the left of the capacitor and the other wire has a plastic connective end.

To the left of the 0-55308 buss clamp card’s large capacitor, you will find a few significantly smaller components. There is the aforementioned tab that is connected to one of the capacitor's wires, but there is also another tab to the left of that one. In between the two tabs, there is one small diode and one small resistor.

The 0-55308 buss clamp card has a total weight of only about 0.62 lbs. or 0.28 kg.
