This 0-54395-3 Autobus Booster Assembly was manufactured by Reliance Electric.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a 0-54395-3 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 0-54395-3
  • SKU: 0543953RE
  • Manufacturer: Reliance Electric
  • Series: Drive Boards

About the 0-54395-3

The 0-54395-3 is an Autobus Booster Assembly from Reliance Electric.  This board may have also been sold under the company names of Baldor Reliance or Asea Brown Boveri, depending on the year of manufacture.  Check your original documentation for compatibility, but typically corresponding part numbers under all these company names represent the same part.

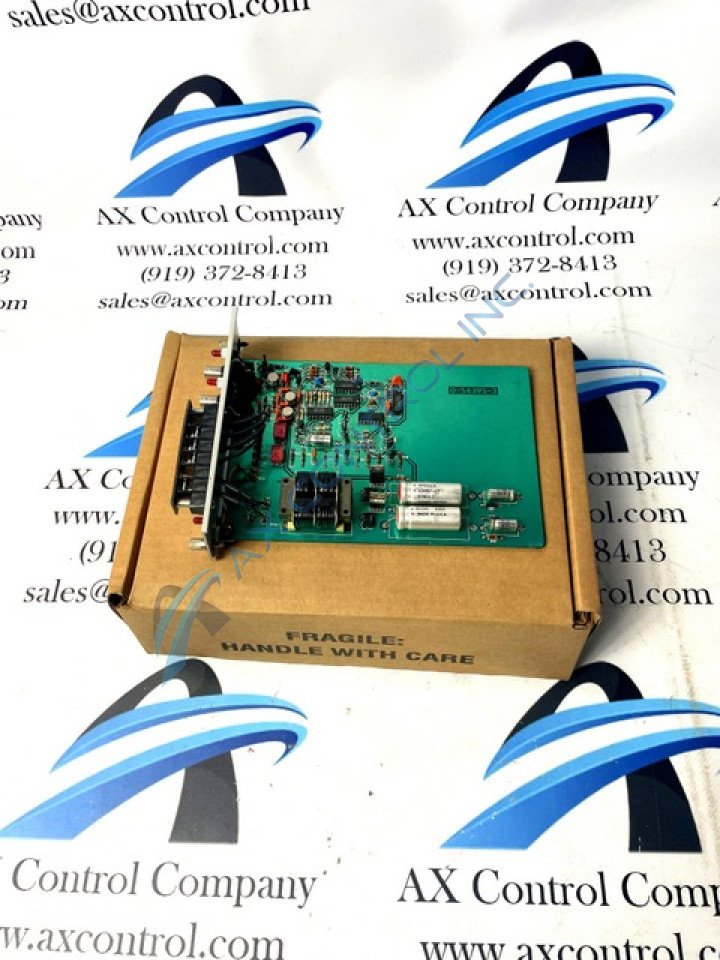

The 0-54395-3 has an attached front faceplate with multiple attached components.  This includes two variable dials set one on top of each other on the left-hand side of the faceplate.  Below this is a terminal strip with eight connectors.  The terminal strip allows for wiring connections to be connected to the board without the need to remove the unit from its location within a rack system.   The front faceplate is connected to the printed circuit board using screw connections.  It is marked with the board ID number and with the Reliance logo.

Unlike many 54395 boards, the 0-54395-3 booster assembly is a four-sided board.  It is populated by resistors, capacitors, potentiometers, transistors, and integrated circuits.  Components may not be marked with reference designators but typically do carry some sort of id marking from the OEM.

Additional information regarding the use of this board can be found by reading through original documentation from Reliance.  This includes data sheets, product user guides, and manuals for the Automax system.  If you no longer have possession of these documents, it is possible AX Control may be able to help you with replacements along with your order. Talk to your sales representative at the time of order placement.


Reviews For 0-54395-3

Internal Review
(5.0)

This 0-54395-3 Reliance Electric printed circuit board device was originally manufactured with the Autobus Booster Assembly functionality in mind. This 0-54395-3 PCB is well voltage-protected by a standard number of different styles of capacitors, and it is considered available here today with viable repair and replacement options. This 0-54395-3 PCB ships worldwide with warrantied protection. - AX Control Lead Technician

  • O-54395-3

Repair Services For 0-54395-3

Type Lead Time Price Action
Repair Service 1-2 weeks $313

Our highly skilled technicians can repair your 0-54395-3. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:
