About the 0-54394-2

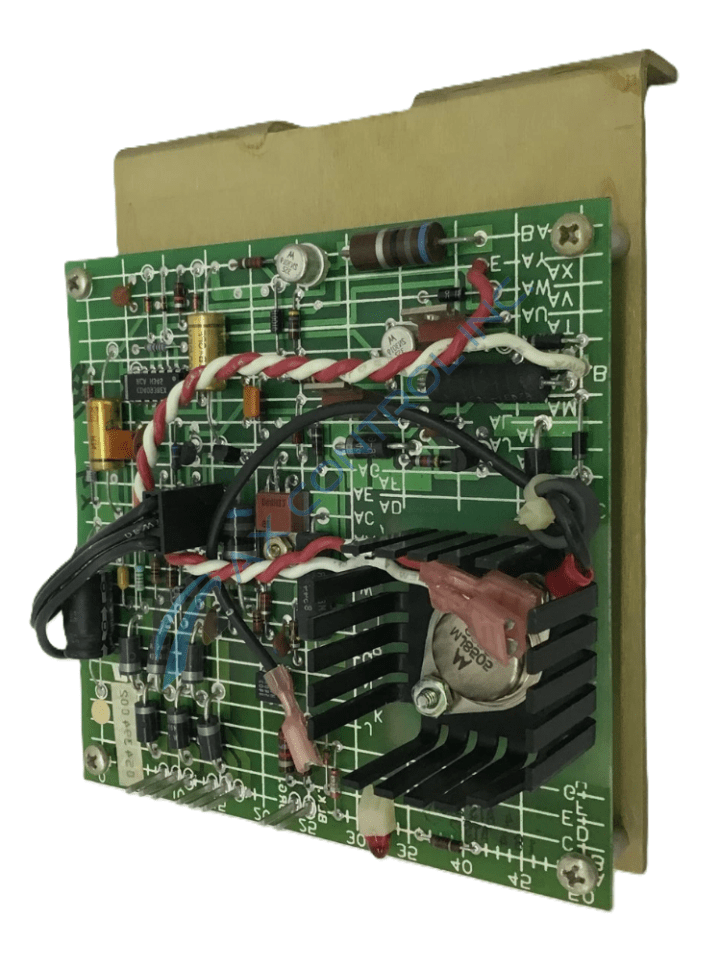

The 0-54394-2 is a circuit board component made and released by Reliance Electric, LTD. Most often this board is used within the company’s own drives, like the Automax drive system. Due to changes in Reliance company structure, it is possible your current board shipped as a Baldor-Reliance or Asea Brown Boveri part. The 0-54394-2 functions a VVI Base Driver board. It is a small, rectangular board mounted via standoffs and screw mounts to a metal carrier. The carrier portion has a right-angled flange on one end. The 0-54394-2 is printed across its top surface with a grid pattern. Each corner is drilled to allow for mounting hardware. Board components include:
- a bipolar transistor mounted within a heat sink
- smaller transistors
- a right-angled LED indicator
- diodes
- integrated circuits
- resistors
- a line of terminal pins along one edge
- surface wiring
Some wires attach to board components while others extend from the board surface and have connectors at their ends for fitting over stab-on connectors or other types of connectors. Information regarding the operation or installation of the 0-54394-2 is available through Reliance manuals or user guides. We strongly suggest reading and following all handling procedures before unboxing your new part.
