The 0-52841 is a Reliance Static Ratio Detector Board

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a 0-52841 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 0-52841
  • SKU: 052841RE
  • Manufacturer: Reliance Electric
  • Series: Drive Boards

0-52841 Technical Specifications

OEM Reliance Electric
Functional Part Number 0-52841
Functional Description Static Radio Board
Product Status Now-Obsolete Legacy

About the 0-52841

0-52841 SRDA Static Ratio Detector Module

The 0-52841 is a Reliance Electric module manufactured for use within various drive systems.

The 0-52841 functions as a Static Ratio Detector Module.  This product has a wide front faceplate connected to the components two primary and one auxiliary circuit boards using screw mounts and metal frame carriers.  The faceplate has an opening cut into its top half that has been labeled “diameter.” On the bottom half, the board has a toggle switch labeled “On” and “test.”  Below this switch are two round openings. One of these is labeled “cal.” These openings line up with potentiometers located on the board surface.

The top board included in the 0-52841  is marked 0-54385. This board is populated with four toggle switch components, over twenty integrated circuits, a large bipolar transistor along with several smaller transistors, nine resistor network arrays, and capacitors, resistors, and diodes, including disk capacitors.  The board also has several stab-on connectors and metal pins for quick connection of components. This board is connected to the bottom circuit board (marked 0-54385-1) by two metal frames. The bottom circuit board is populated by additional integrated circuits, capacitors, transistors, metal pins, resistors, and diodes.  It also has several instances of surface wiring. The board partially supports the vertically mounted auxiliary board that backs to the faceplate. This board has more of the components previously mentioned and is wired into the bottom board via surface wired connections.

More information regarding the operation or installation of this board may be accessed through Reliance publications like manuals, data sheets, or user guides. Please read and follow all safety recommendations.

Frequently Asked Questions about 0-52841

How is voltage protection handled in the assembly of this 0-52841 product offering?

This 0-52841 device's voltage limitation is produced through its internal assembly's inclusion of Reliance Electric-standardized hardware components such as capacitors, diodes, and resistors.

Would this TLASB-6 device be protected by any warranty upon my purchase here?

Yes. Immediately upon your original purchase from AX Control, this TLASB-6 product and many others would be considered protected by our guaranteed three-year warranty.
  • O-52841

Repair Services For 0-52841

Type Lead Time Price Action
Repair Service 1-2 weeks $352

Our highly skilled technicians can repair your 0-52841. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More

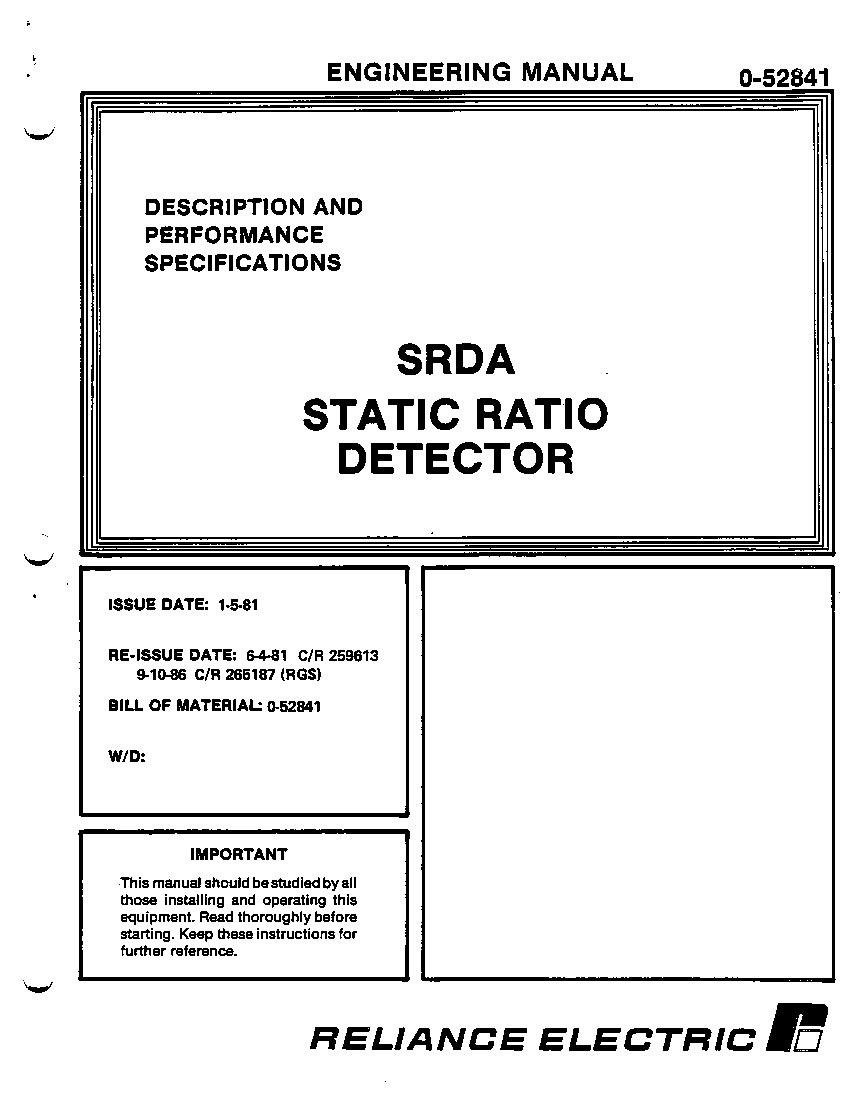

0-52841 Manuals, White Papers, Data Sheets, and Troubleshooting
