The 0-52840-655 is a Reliance CCC Card



Sell Surplus: Have a 0-52840-655 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 0-52840-655
  • SKU: 052840655RE
  • Manufacturer: Reliance Electric
  • Series: Drive Boards

0-52840-655 Technical Specifications

Original Manufacturer Reliance Electric
Product Number 0-52840-655
Functional Description Power Connect Board
Product Status Now-Obsolete Legacy

Product Description

0-52840-655 CCC Card Reliance

The 0-52840-655 is a Reliance board component with attached faceplate, manufactured for use within various company drive systems.   Depending on the year this board was produced it may carry the Baldor-Reliance logo or a logo from ABB.

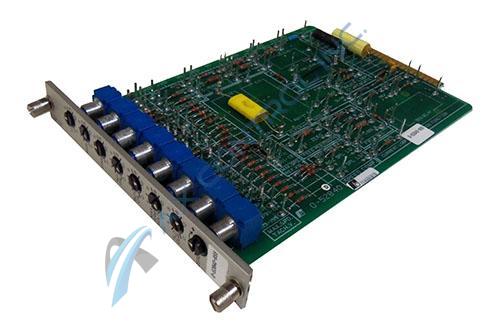

The 0-52840-655 functions as a CCC Card.  The front faceplate has eight rotary dials mounted in its surface.  These are labeled, from top to bottom, as 1P, rate, stab, ref cal, tach cal, max arm volt, fld cur, and zero.  The first seven of these dials can be set from zero to ten. The “zero” dial can be minimally adjusted. Each dial connects to a potentiometer located behind the faceplate on the surface of the circuit board.

The 0-52840-655 is populated by metal film resistors.  It has multiple pin components placed across the board’s surface.  These are labeled extensively, often boxed off and numbered in the case of the Max Spd Tach. V. pins that are also individually numbered, or individually labeled, as are the pins near the “Major Loop Compensate” label.  Some of these pins are labeled fixed, fast, slow, fwd, and rev. Other labels seen on the board surface include Overload, Current Limit, Feed permissive, Speed Comp, current loop, seq. Delay, and jog function. Pins are sometimes used to connect components to the board, as is the case with one polyester vinyl capacitor.  In other cases, surface wiring connects one pin to another. Other components on the board surface include metal film resistors, capacitors of various materials, and a conductive backplane.

If more information regarding the 0-52840-655 is needed, this may be found through Reliance publications like product manuals, data sheets, or series user guides.   Technical support for this product was provided by Reliance.

Reviews For 0-52840-655

Internal Review

This 0-52840-655 PCB is only classifiable as a Printed Circuit Board due to a low availability of its original Reliance Electric instructional documentation for research purposes. With this being said, this rather large 0-52840-655 product offering is well-voltage protected and reinforced for convenient installation through its acceptance of several factory-drilled installation holes ringed with insulation. - AX Control Lead Technician

  • O-52840-655

Repair Services For 0-52840-655

Type Lead Time Price Action
Repair Service 1-2 weeks $424

Our highly skilled technicians can repair your 0-52840-655. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:
