The 0-51847-4 is a Voltage Detect Board from Reliance

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a 0-51847-4 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 0-51847-4
  • SKU: 0518474RE
  • Manufacturer: Reliance Electric
  • Series: Drive Boards

About the 0-51847-4

0-51847-4  Voltage Detect PC Board

The 0-51847-4 is a printed circuit board (PCB) fabricated by Reliance.  Drive boards like the 0-51847-4 may be marked with the Reliance logo or may be marked as coming from Baldor-Reliance or ABB (Asea Brown Boveri.)

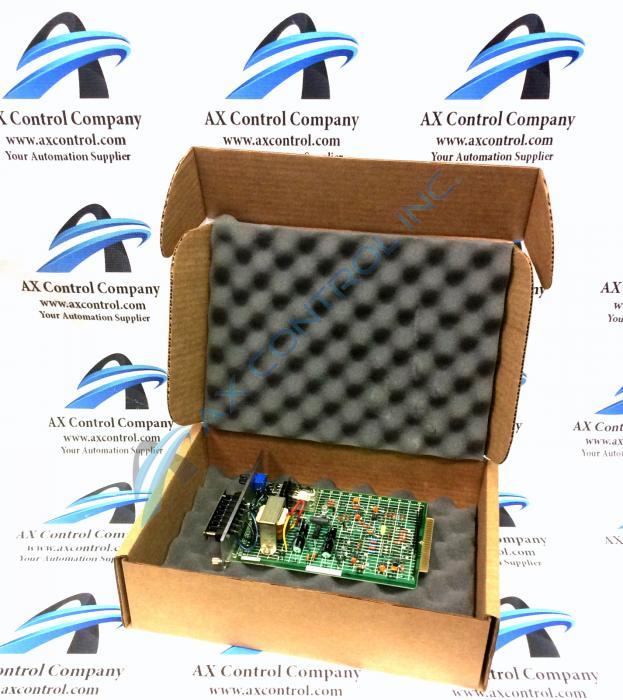

The  0-51847-4 has a front faceplate with a rotary dial marked “Bias.”  This rotary dial is connected to a potentiometer mounted to the back side of the faceplate.  The front faceplate also has six screws covered by a cover. The first three of these screws are labeled 1, 2, and 3.  The fourth screw is not labeled. The last two screws are labeled 81 and 82. The front faceplate also has a single red LED indicator that has a notation that “1 S is energized when light is on.”   The faceplate has two set screws to connect the board component into the rack system.

The  0-51847-4 is populated by a transformer, a relay, several transistors, integrated circuits, and resistors, disk capacitors, diodes, and capacitors made of polyester vinyl, aluminum electrolytic, and other materials.   The board uses surface wiring in several locations. The board has a conductive tail stub that is used as a backplane connector. Publications originally provided by Reliance (manuals, datasheets, user guides) for technical support will still provide more in-depth information about the operation and installation of this board.

AX Control maintains a large inventory of Reliance Electric Drive Boards.  Many of these boards are new products housed in the original manufacturer’s box.   Other products have been through our extensive refurbishment and reconditioning process completed by our in-house experts.

Frequently Asked Questions about 0-51847-4

Have any factory-drilled holes been made in the base circuit board of this 0-51847-4 product?

Yes. The base circuit board of this 0-51847-4 device has been factory-drilled in several locations to support convenient and safe installation practices.

How is voltage protection handled in the assembly of this 0-51847-4 product offering?

This 0-51847-4 device's voltage limitation is produced through its internal assembly's inclusion of Reliance Electric-standardized hardware components such as capacitors, diodes, and resistors.
  • O-51847-4

Repair Services For 0-51847-4

Type Lead Time Price Action
Repair Service 1-2 weeks $361

Our highly skilled technicians can repair your 0-51847-4. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More

0-51847-4 Manuals, White Papers, Data Sheets, and Troubleshooting
