0-51839-7

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.92 (13)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.92 (13)
  • Click a star to rate this product
The 0-51839-7 is a Reliance Overload Voltage Relay Card

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Sell Surplus: Have a 0-51839-7 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 0-51839-7
  • SKU: 0518397RE
  • Manufacturer: Reliance Electric
  • Series: Drive Boards

About the 0-51839-7

0-51839-7 IRCH  Overload Voltage Relay board

The 0-51839-7  is a PCB or printed circuit board manufactured by Reliance Electric.  Now obsolete, 0-51839-7 boards were released over several years of manufacture and may be marked as Reliance boards, as Baldor-Reliance, or as coming from ABB (Asea Brown Boveri.)  The part number remained the same.

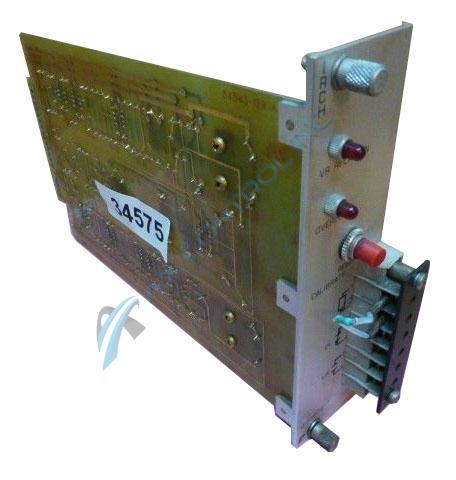

The 0-51839-7 functions as an Overload Voltage Relay Card.  The front faceplate attached to the circuit board is populated with a reset switch (red,) two red LED indicators marked VR Relay On and Overload, and a strip of contact screws numbered one through six.  Screws three and four are also labeled OL and screws five and six are also labeled VR. The panel carries the board number and the Reliance logo.

The 0-51839-7 uses many instances of surface wiring.  The reset switch mentioned above wires to the surface of the board using twisted red and black wires.  Multiple wires extend from the back of the screw connections; many of these connect to the boards two relays, while others connect to points on the board.   The board is populated with several integrated circuits, with disk capacitors and capacitors made from polyester vinyl, with transistors, and with diodes and resistors.   The rear edge of the board extends in a “tail” that has three conductive tabs located on it. The board’s surface is printed with a grid pattern. The top of this pattern is numbered by fives and its left edge is lettered.  More information regarding the board, its components, or operation or installation, can be found through Reliance publications like manuals or user guides.

AX Control is a global supplier of industrial automation parts.  Our inventory is made up of new surplus products, liquidated stock, and reconditioned products that have been thoroughly inspected by our in-house specialists.

Reviews For 0-51839-7

Internal Review
(5.0)

This 0-51839-7 Reliance Electric product offering belongs to a now-obsolete legacy product series, and as such, is not well-documented in internet-available instructional manual materials. With this being true, a visual inspection of the 0-51839-7 Overload Voltage Relay Board reveals important component parts including its attached front faceplate and numbered strip of contact screws. - AX Control Lead Technician

  • O-51839-7

Repair Services For 0-51839-7

Type Lead Time Price Action
Repair Service 1-2 weeks $308

Our highly skilled technicians can repair your 0-51839-7. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More

0-51839-7 Manuals, White Papers, Data Sheets, and Troubleshooting
