This 0-51831-4 Current Voltage PC Board was manufactured by Reliance Electric.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a 0-51831-4 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 0-51831-4
  • SKU: 0518314RE
  • Manufacturer: Reliance Electric
  • Series: Drive Boards

About the 0-51831-4

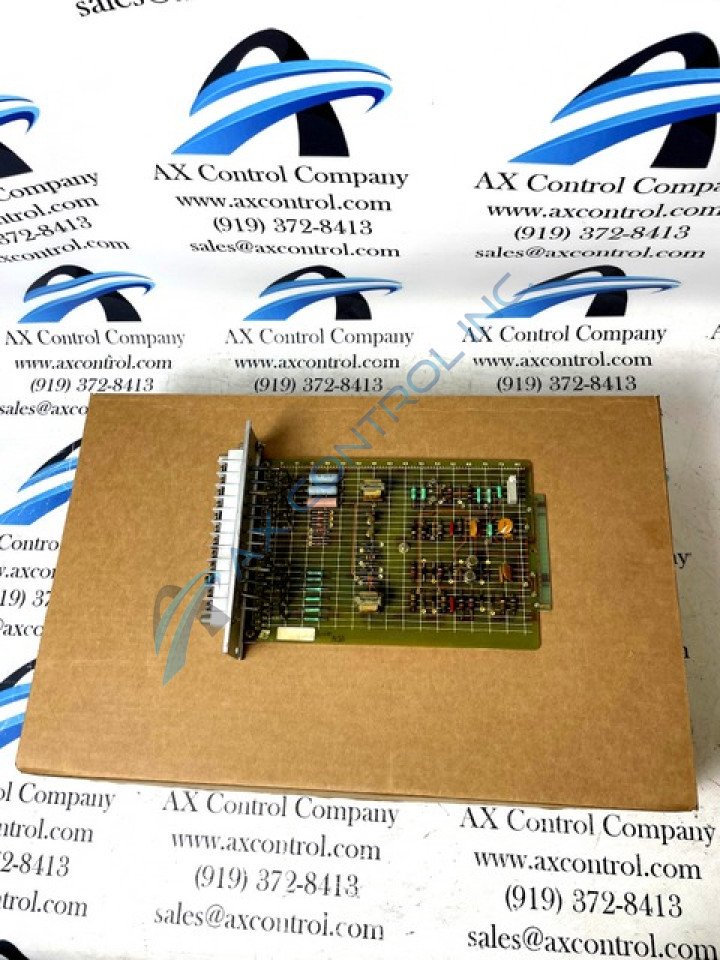

The 0-51831-4 is a product of Reliance Electric. This CVTE printed circuit board uses twelve screws on the faceplate to connect various devices. Each screw is labeled. The first screw is labeled 319, the second screw is labeled 57, the third screw is labeled 194, the fourth screw is labeled 193, the fifth screw is labeled 192, These screws fall under a category with the label ARM CURRENT FB, the sixth screw is unlabeled, the seventh screw is unlabeled, starting at the eighth screw through the eleventh screw they are labeled under the category ARM VOLTS FB, the eighth screw is labeled COM, the ninth screw is labeled 240V, the tenth screw is labeled 500V, the eleventh screw is labeled 600V and the twelfth screw is unlabeled. There are nine black wires that extend from the faceplate to the circuit board at the tenth grid line. Starting at the fifteenth grid line and extending to the twenty-fifth grid line there are three large black resistors in the top left corner, each has its energy capacity written in white on the outside. Below the resistors are six small black diodes with silver lines at one end. Below the didoes are six mauve capacitors. From the thirtieth grid mark to the fortieth grid mark are two transformers, two mauve capacitors, two transistors, and six various diodes.

AX Control will ship the 0-51831 to you wrapped in an anti-static bag. AX Control prides ourselves on great customer service and offers a wide array of products at a great price.

Frequently Asked Questions about 0-51831-4

How does this 0-52821-1 product offering mount in its greater Reliance Electric automated drive assembly?

This 0-52821-1 PCB mounts in its greater Reliance Electric drive through two crucial screw connectors available to its sturdy metal faceplate.

How is this 0-52821-1 product offfering's voltage protection handled?

This 0-52821-1 PCB suppresses potentially-damaging voltage currents through its acceptance of several Reliance Electric-standardized hardware components such as diodes, capacitors, and resistors.

Reviews For 0-51831-4

Internal Review
(5.0)

Originally developed by Reliance Electric for placement in a legacy product series as mentioned before; this 0-51831-4 printed circuit board product offering is more accurately-describable as a Current Voltage PC Board, as indicated by this functional description's placement in sparsely-available instructional documentation. Available for both repair and replacement right here today! - AX Control Lead Technician

  • O-51831-4

Repair Services For 0-51831-4

Type Lead Time Price Action
Repair Service 1-2 weeks $329

Our highly skilled technicians can repair your 0-51831-4. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty
