This 0-51831 CVTD Circuit Board was manufactured by Reliance Electric.

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Sell Surplus: Have a 0-51831 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 0-51831
  • SKU: 051831RE
  • Manufacturer: Reliance Electric
  • Series: Drive Boards

About the 0-51831

The 0-51831 is a CVTA board from Reliance Electric.  This is one of several Current Voltage boards available from Reliance.  While this product is no longer available through the original equipment manufacturer, it can be found in the products available here at AX Control.

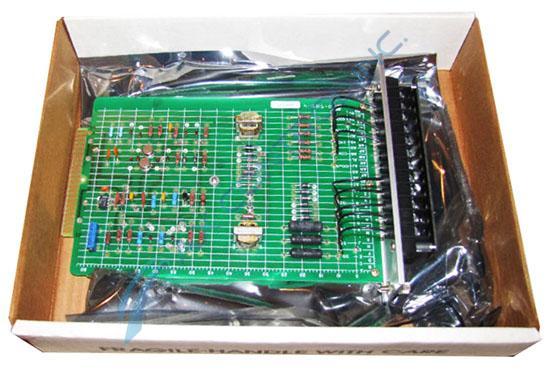

The 0-51831 is designed to work within Reliance power systems and to function as a magnetic amplifier for reactive power compensation.    This board is designed with a connected front faceplate that attaches to the circuit board with four screw connections.   The faceplate includes the board’s part number.  The terminal strip attached to the front faceplate connects to the circuit board via a series of wired connections that terminate at a series of vertical pins; each pin is individually labeled.   Other board components include an extruding rear connector that allows the board to communicate once it is fitted into a card slot, three transformers in frames, two potentiometers, capacitors, resistors, transistors, and diodes.  The board also has several variable resistors on its surface besides the potentiometers.

The surface of the circuit board is marked with a grid pattern that is lettered and numbered along two edges to allow for location identification of components.  The board is also marked with the board’s ID number and with the Reliance logo.

For additional information about how to handle and install this board, please refer to documents originally provided by Reliance Electric.  This includes manuals, user guides and data sheets.

AX Control ships from central North Carolina to around the world.  If you require expedited shipping, we can do that.

Reviews For 0-51831

Internal Review
(5.0)

This 0-51831 printed circuit board product offering from the now-defunct legacy series manufacturer Reliance Electric was designed to exist specifically as a Current Voltage Board, with a specific application as a reactive power compensation magnetic amplifier. This 0-51831 product offering's Current Voltage Board functionality is indicated through its possession of the CVTD functional product acronym. - AX Control Lead Technician

  • O-51831

Repair Services For 0-51831

Type Lead Time Price Action
Repair Service 1-2 weeks $302

Our highly skilled technicians can repair your 0-51831. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty
