This 0-48653-3 Tachometer Control Circuit Board was manufactured by Reliance Electric.

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Sell Surplus: Have a 0-48653-3 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 0-48653-3
  • SKU: 0486533RE
  • Manufacturer: Reliance Electric
  • Series: Drive Boards

0-48653-3 Technical Specifications

Manufacturer Reliance Electric
Product Number 0-48653-3
Product Description Tachometer Control Board
Device Status Now-Obsolete Legacy

About the 0-48653-3

The 0-48653-3 module is a tachometer scaling circuit board that was designed and mass produced by the company Reliance Electric. The 0-48653-3 circuit board is an old, obsolete circuit board that has since been discontinued by Reliance Electric. However, the 0-48653-3 circuit board may be in stock with AX Control either in refurbished condition or brand new from some of the surplus stock. Call or email an AX Control sales representative today to learn more about the availability of this product.

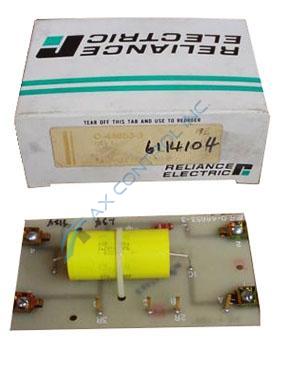

The 0-48653-3 tachometer scaling circuit board is a very small circuit board. In each corner of the 0-48653-3 circuit board, there is a very small screw that is used to help with securing the 0-48653-3 circuit board in a proper way. There are three resistors on the circuit board. There is a resistor that is labeled as the “1R” resistor, and that is mounted directly onto the circuit board. The other two resistors, which are labeled as the “2R” and “3R” resistors are instead quick connect resistors that are wired to posts. In the middle of the 0-48653-3 tachometer circuit board, there is a large yellow capacitor. This has multiple lines of labels on it, including “2.0 MFD +/-20%” and “600 VDC 126” on the bottom of the capacitor.

The 0-48653-3 tachometer scaling circuit board weighs approximately 0.22 lbs. or 0.10 kg. This total weight does not include any of AX Control’s safe and reliable packaging materials, which are designed to ensure that your package reaches your facility without any damage whatsoever.

Reviews For 0-48653-3

Internal Review
(5.0)

This 0-48653-3 printed circuit board from Reliance Electric is better-definable, as explained above, through its official functional product description as a Tachometer Control Circuit Board. This now-obsolete PCB makes use of several voltage-limiting hardware components in its assembly, such as the resistors mentioned previously, and is available today for repair and replacement. - AX Control Lead Technician
