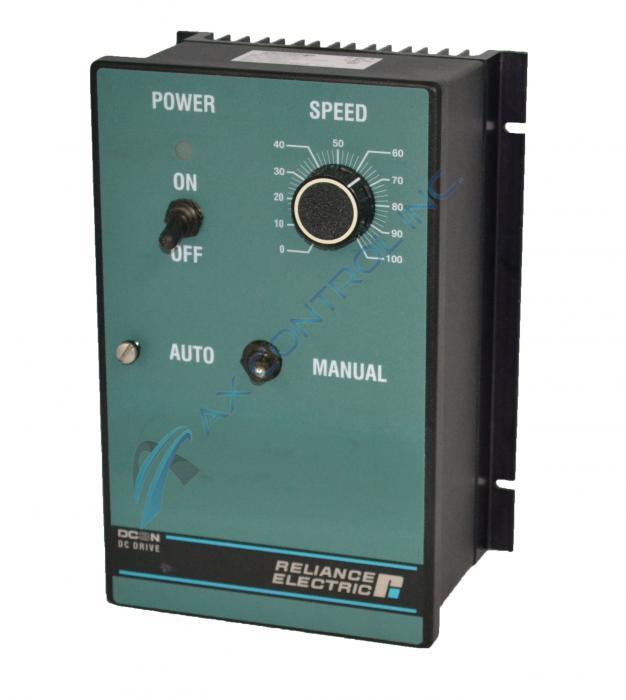

Reliance Electric Rockwell DC3 DC3E Motor Controller . New Drive Currently Available

AVAILABILITY:

CALL FOR AVAILABILITY

Sell Surplus: Have a DC3N-12D-4X-010-AI to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DC3N-12D-4X-010-AI
  • SKU: DC3N12D4X010AIRE
  • Manufacturer: Reliance Electric
  • Series: DC3 Drives

DC3N-12D-4X-010-AI Technical Specifications

Manufacturer Reliance Electric
Series DC3
Part Number DC3N-12D-4X-010-AI
HP 0.25/2 HP
Input Voltage 115/230 VAC
Phase 1 Phase
Hz 50/60Hz

About the DC3N-12D-4X-010-AI

DC3N-12D-4X-010-AI is a Reliance Electric DC3 simple non-regenerative drive. “4X” means that the drive is contained in a NEMA 12/4/4x enclosure. “AI” means that the drive has an isolated reference input of 0-10 VDC and 4-20 mA. This drive is designed to be mounted vertically on the panel wall inside the NEMA 12/4/4x enclosure. As an enclosed drive, DC3N-12D-4X-010-AI does not require a second heat sink to operate. Sufficient heat sinking ability is contained within the NEMA enclosure.

Recommended line fuse sizes range from 5 to 15 amps, depending on the drive VDC and horsepower. The speed adjust potentiometer comes installed on all enclosed controls. The AC line power leads of the power input must connect to terminals L1 and L2, or to a double-throw, single-pole master power switch as shown in Figure 6 of the user manual. Install a master power switch in the voltage input line. Both NEMA enclosures may be wall mounted vertically via slotted holes on the attached heat sink. The voltage switch must match the AC line voltage and the maximum armature voltage. Derate the nameplate motor speed and torque by at least 30% if using a 90 VDC or 130 VDC motor with a 230 VAC line voltage.

If the user must frequently start and stop the drive, be careful to watch for high torque that may damage the motor. To brake, apply a dynamic brake to the motor, decelerate to a minimum speed, or short the inhibit terminals. These methods are not appropriate for emergency stopping. The AC power will not be disconnected during starting and stopping with the inhibit terminal pins.

Frequently Asked Questions about DC3N-12D-4X-010-AI

What is the enclosure on a Reliance DC3N-12D-4X-010-AI?
DC3N-12D-4X-010-AI has a NEMA 4/NEMA 4X/NEMA 12 enclosure rating. You can identify this by the "4X" in the DC3N-12D-4X-010-AI drive's model number.
Where can I find a manual for the DC3N-12D-4X-010-AI?

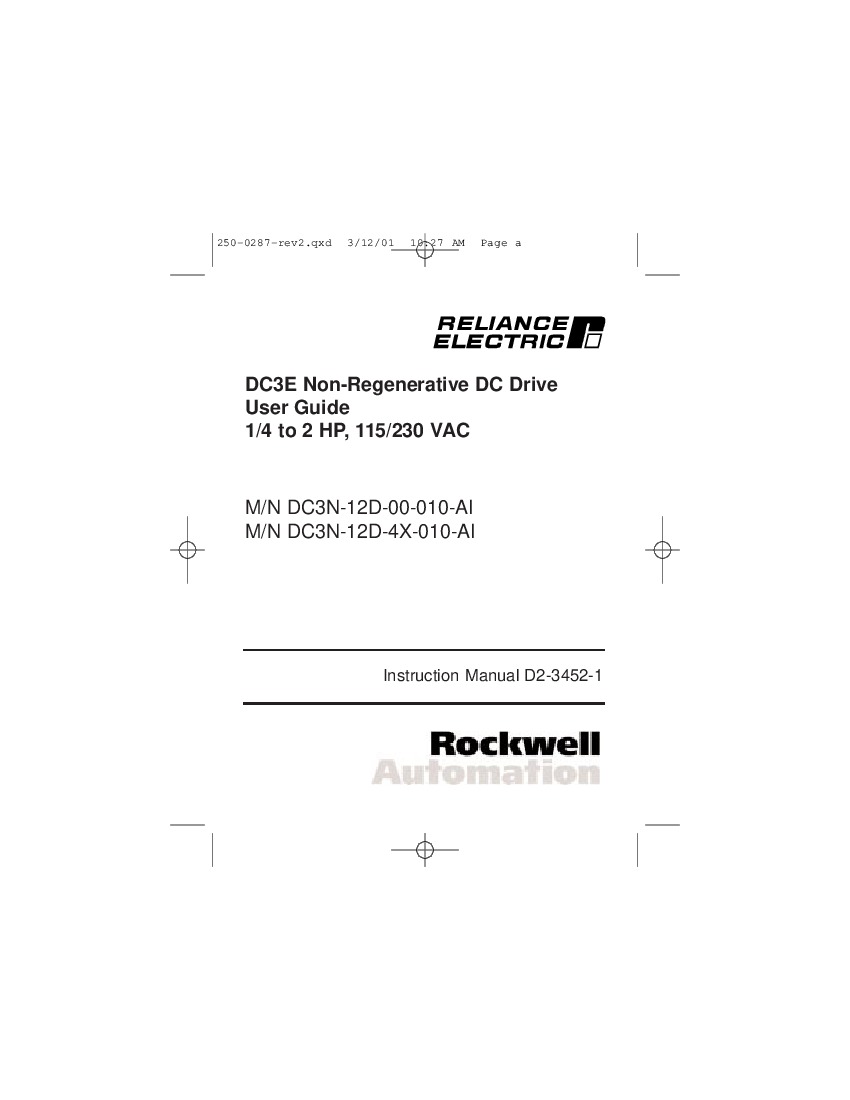

We are happy to send you the link to the DC3 Drive Manual - Manual D2-3451. The manual will help you with installation, callibration, and operation of your DC3N-12D-4X-010-AI drive. The manual will also help with troubleshooting your DC3N-12D-4X-010-AI
Can AX Control repair my DC3N-12D-4X-010-AI?
Yes. We're happy to repair your Reliance DC3N-12D-4X-010-AI drive. Speak to a sales representative for a repair quote on the DC3N-12D-4X-010-AI and an estimated repair time on your DC3N-12D-4X-010-AI

Repair Services For DC3N-12D-4X-010-AI

Type Lead Time Price Action
Repair Service 1-2 weeks $333

Our highly skilled technicians can repair your DC3N-12D-4X-010-AI. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More
