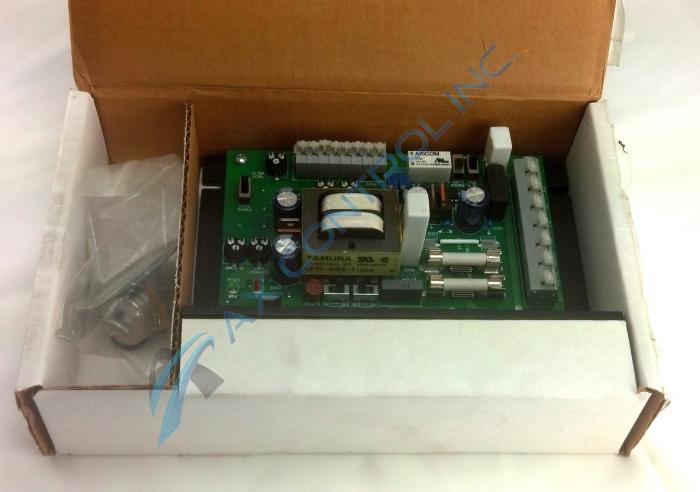

Reliance Electric Rockwell DC3 10A Motor Speed Controller.

AVAILABILITY:

CALL FOR AVAILABILITY

Sell Surplus: Have a DC3N-12D-00-010-AI to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DC3N-12D-00-010-AI
  • SKU: DC3N12D00010AIRE
  • Manufacturer: Reliance Electric
  • Series: DC3 Drives

DC3N-12D-00-010-AI Technical Specifications

Manufacturer Reliance Electric
Series DC3
Part Number DC3N-12D-00-010-AI
Input Voltage 115/230 VAC
Phase 1 Phase

About the DC3N-12D-00-010-AI

DC3N-12D-00-010-AI is a Reliance Electric DC3 simple non-regenerative drive. “00” indicates that there is a chassis enclosure for the drive. The isolated reference input of the AI drive is 0-10 VDC and 4-20 mA. To protect the drive chassis, use an external fuse. Fuse blocks are included on enclosed drives only. Use fast-acting fuses that are approximately 150% of the maximum armature current for drives rated 250 VAC or higher.

DC3N drives require an additional heat sink if they are enclosed in a chassis. When installing an isolation transformer on the drive, install a power disconnecting device between the primary and the power line of the transformer. The input isolation transformer prevents damaging line voltage transients from reaching the drive. They also prevent line noise from the drive from coming back to the incoming power source. Lastly, the input isolation transformer protects against damaging currents that could develop if the drive becomes grounded by a point inside the chassis.

When operating the drive, remember to disconnect from the AC line voltage before changing the voltage switch settings. The motor will overspeed if the switches are improperly set to a higher voltage position. If the motor overspeeds, it may result in motor damage, bodily injury, or loss of life. Damage to the transformer may occur if the switches are improperly set to a lower voltage position. When running the drive, if the motor or drive are not performing as described, immediately disconnect the AC line voltage. Equipment damage, bodily injury, and/or loss of life may occur if caution warnings are not followed. There is no reason why the user should operate the equipment without professional knowledge of the operation and service of these drives.

Frequently Asked Questions about DC3N-12D-00-010-AI

Where should I install a DC3N-12D-00-010-AI drive?
When installing your DC3N-12D-00-010-AI, protect the DC3N-12D-00-010-AI from dirt, moisture, and accidental contact. Make sure the DC3N-12D-00-010-AI is away from heat sources and provide enough room for access to the terminal block on the DC3N-12D-00-010-AI. Also, make sure there are no loose connections with the DC3N-12D-00-010-AI so the DC3N-12D-00-010-AI does not vibrate.
What type of wires should I use when wiring a Reliance DC3N-12D-00-010-AI?
For speed adjustment potentiometer wiring on a DC3N-12D-00-010-AI, use 18-24 AWG wire. For AC line and motor wiring, use 14-16 AWG wire on the DC3N-12D-00-010-AI
What type of inventory does AX Control have on DC3N-12D-00-010-AI drives?
Although, Reliance no longer makes DC3N-12D-00-010-AI and they are obsolete, we have both new surplus and reconditioned DC3N-12D-00-010-AI drives in our facility.

Repair Services For DC3N-12D-00-010-AI

Type Lead Time Price Action
Repair Service 1-2 weeks $398

Our highly skilled technicians can repair your DC3N-12D-00-010-AI. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More
