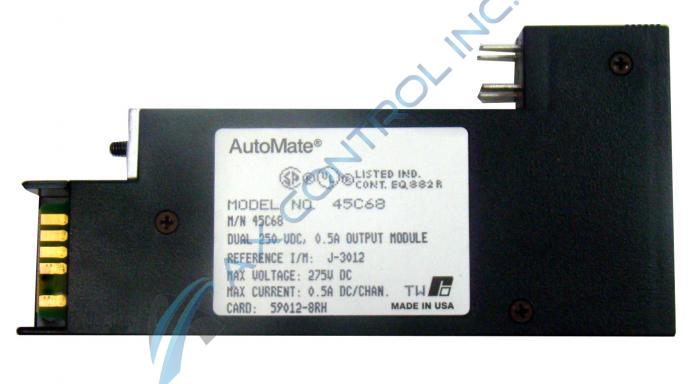

Reliance Automate 250V DC 1/2 Amp Output Rev 45C68. New and Used Available. Programmable Controller Dual Output Module.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a 45C68 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 45C68
  • SKU: 45C68RE
  • Manufacturer: Reliance Electric
  • Series: AutoMax PLC

45C68 Technical Specifications

Manufacturer Reliance Electric
Series AutoMax PLC
Part Number 45C68
Product Type Dual D-C Output Module
Instruction Manual J-3012

Product Description

The 45C68 device is an AutoMax Dual DC Output Module that Reliance Electric brought to the market. Reliance Electric no longer produces the 45C68 output module, but we may still have it within our stock, as notated by our website. If you still have any questions that need answering, however, call or email us during our business hours.

The 45C68 output module has the highest Voltage ratings when compared with the two similarly rated dual DC output modules that it is associated with, which are the 45C63 output module and the 45C65 output module. To find more specific information on these other output modules, please use the hyperlinks above to be brought to their specific pages on our website.

The 45C68 output module possesses a nominal DC voltage rating of 250 Volts and a working DC voltage range of between 140 Volts and 275 Volts. The peak voltage that is allowed for the 45C68 output module because of overshoot is 600 Volts. As for the 45C68 output module’s output circuit, the maximum inductive load energy is 26 Joules, the maximum continuous output current is 0.5 Amps, and the power dissipation at both the maximum current and temperature is 1.8 Watts.

When installing, be sure to connect the 45C68 output module to the correct spot located on the surface of an AutoMax I/O rail. Also, double check the environment’s operating temperature and make sure that it is no colder than 32 degrees Fahrenheit and no hotter than 140 degrees Fahrenheit. In addition, check storage temperature and ensure that it is no colder than -4 degrees Fahrenheit and no hotter than 185 degrees Fahrenheit. Lastly, the humidity should be somewhere between 5% and 90% for proper operation to occur.

Frequently Asked Questions about 45C68

What power does 45C68 run on?
45C68 runs on 250 VDC.
When will the fuse indicator not light up on 45C68?
If working voltage on the 45C68 is less than 140 volts then the fuse indicator will not light up on 45C68.
What is the allowable surge current on 45C68?
At 0.1 seconds, the allowable surge current on 45C68 is 1.5 amps. At 0.5 seconds, 45C68 has an allowable surge current of 1 amp.
Where can I find the manual for 45C68?
We're happy to give you the manual for 45C68. The manual is Manual J-3012 and the manual is the AutoMate DCS 5000/AutoMax Digital I/O Rails and Modules Manual. We can send you a link to this manual for 45C68 or you can ask for the 45C68 manual.

Repair Services For 45C68

Type Lead Time Price Action
Repair Service 1-2 weeks $257

Our highly skilled technicians can repair your 45C68. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More
