LK-G3001P

About the LK-G3001P

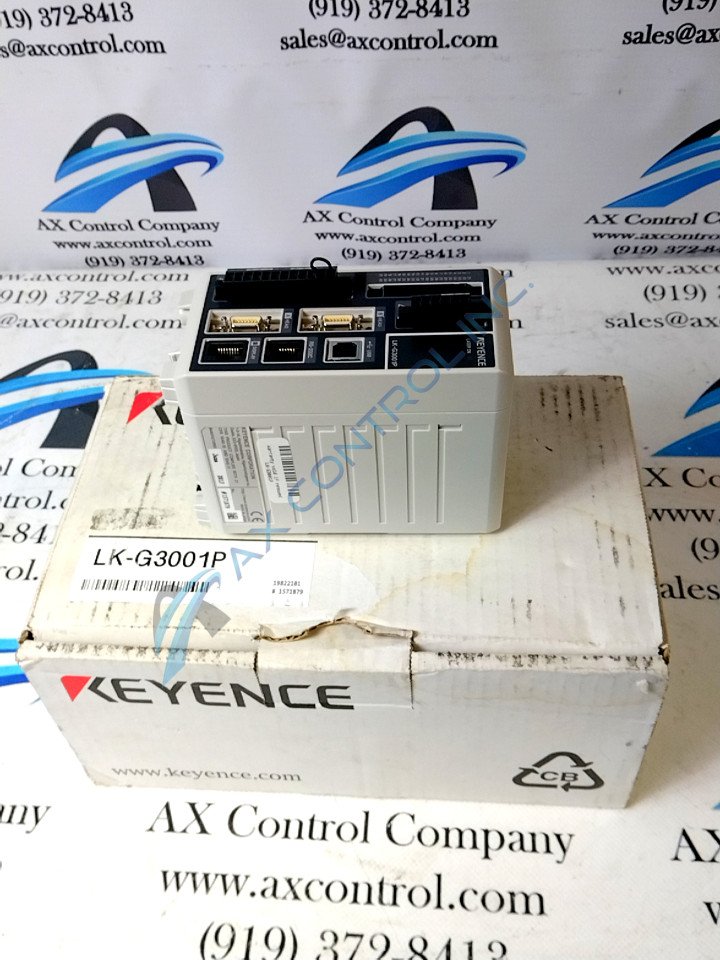

LK-G3001P is a separate monitor model controller that is manufactured by Keyence for the LK-G3000 series. The display is compatible with all LK-G sensor heads. Up to two sensors can be connected at one time. Numerous voltage or environmental ratings exist for the LK-G3001P Industrial Drive Controller:

• the minimum display unit is 0.01 μm
• the display range is ±9999.99 mm to ±9999.99 μm
• the refresh rate is 10 times/second
• the voltage outputs are ± 10 V with an output impedance of 100 Ω
• the current outputs are 4 to 20 mA with a maximum load resistance of 350 Ω
• the relative humidity is 35 to 85% with no condensation
• the power supply voltage is 24 VDC ± 10%

LK-G3001P Module Functionality

On the expansion connector, the binary output is a measured data output of 21 bits. The binary output, the strobe output, and the binary selector output are PNP open-collector outputs. The RS-232C interface is a measured data output and control input/output with a maximum baud rate of 115200 BPS (selectable). The USB interface is in conformity with the USB revision 2.0 full speed (USB1.1 compatible). The major functions of the controller are:

• operation
• averaging
• filtration
• calibration
• measurement
• data storage
• target setting
• able setting
• able tuning
• selectable head-mounting
• ECO mode
• 8-program memory
• selection of measurement surface of transparent target

The current consumption is 500 mA or less with 1 head or 600 mA or less with 2 heads. On the terminal block, there are two analogue voltage outputs and two analogue current outputs. The laser remote interlock input is a non-voltage input. The weight is approximately 480 g.
