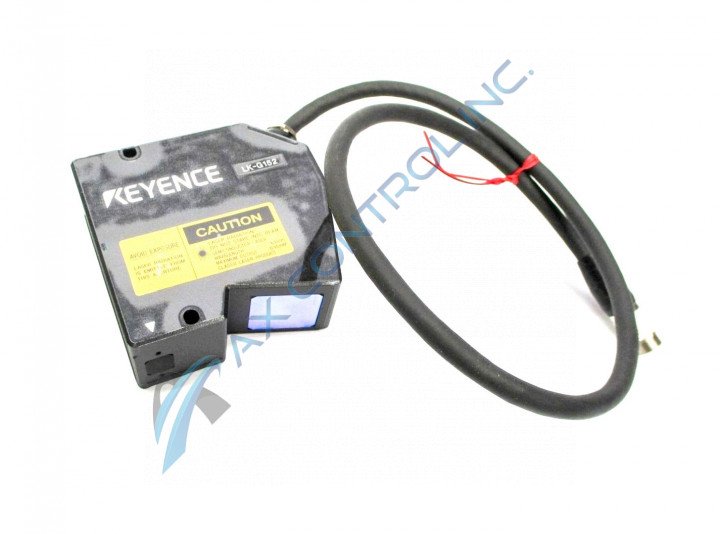

High Speed High Accuracy CCD Laser Displacement Sensor LK-G152

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Warranty: Learn More
Sell Surplus: Have a LK-G152 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: LK-G152
  • SKU: LKG152KE
  • Manufacturer: Keyence
  • Series: LK-G3000 Series

LK-G152

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
High Speed High Accuracy CCD Laser Displacement Sensor LK-G152

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Warranty: Learn More
Sell Surplus: Have a LK-G152 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: LK-G152
  • SKU: LKG152KE
  • Manufacturer: Keyence
  • Series: LK-G3000 Series

LK-G152 Technical Specifications

Manufacturer Keyence (Vision)
Part Number LK-G152
Series LK Series

Product Description

The LK-G152 module is a sensor head that was developed by KEYENCE to be a part of their LK-G3000 series of cameras and related equipment. The LK-G152 sensor head continues to be stocked at AX Control.

The LK-G152 module is a long distance, small spot sensor head. It has a measuring range of 5.91 inches +/- 1.57 inches (150 millimeters +/- 40 millimeters). This particular sensor head has a repeatability of 0.5 µm and a spot diameter of 120 µm. The LK-G152 sensor head can be switched between diffused reflection and specular reflection mounting mode. With the diffused reflection mounting mode, the reference distance is set to be 5.91 inches and the measuring range is set to be +/-1.57 inches. The specular reflection mounting mode has a reference distance of 5.81 inches and a measuring range of +/-1.54 inches. The LK-G152 sensor head uses a Class II red semiconductor laser that has a wavelength of 650 nm and a maximum output of 0.95 mW. The LK-G152 sensor head has a linearity of +/-0.05% of F.S. Lastly, it is made up of an aluminum die-cast material.

The LK-G152 sensor head can be connected to a KEYENCE controller, which in turn will be connected to a PC, PLC, or a data recorder. The controller can have a display panel and a separate controller connected to it.

The LK-G152 sensor head has a weight of about 0.63 lbs. or 0.29 kg., including its cable, without considering any of AX Control’s packaging materials included to the total.

Repair Services For LK-G152

Type Lead Time Price Action
Repair Service 1-2 weeks Ask Get Quote

Our highly skilled technicians can repair your LK-G152. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty
