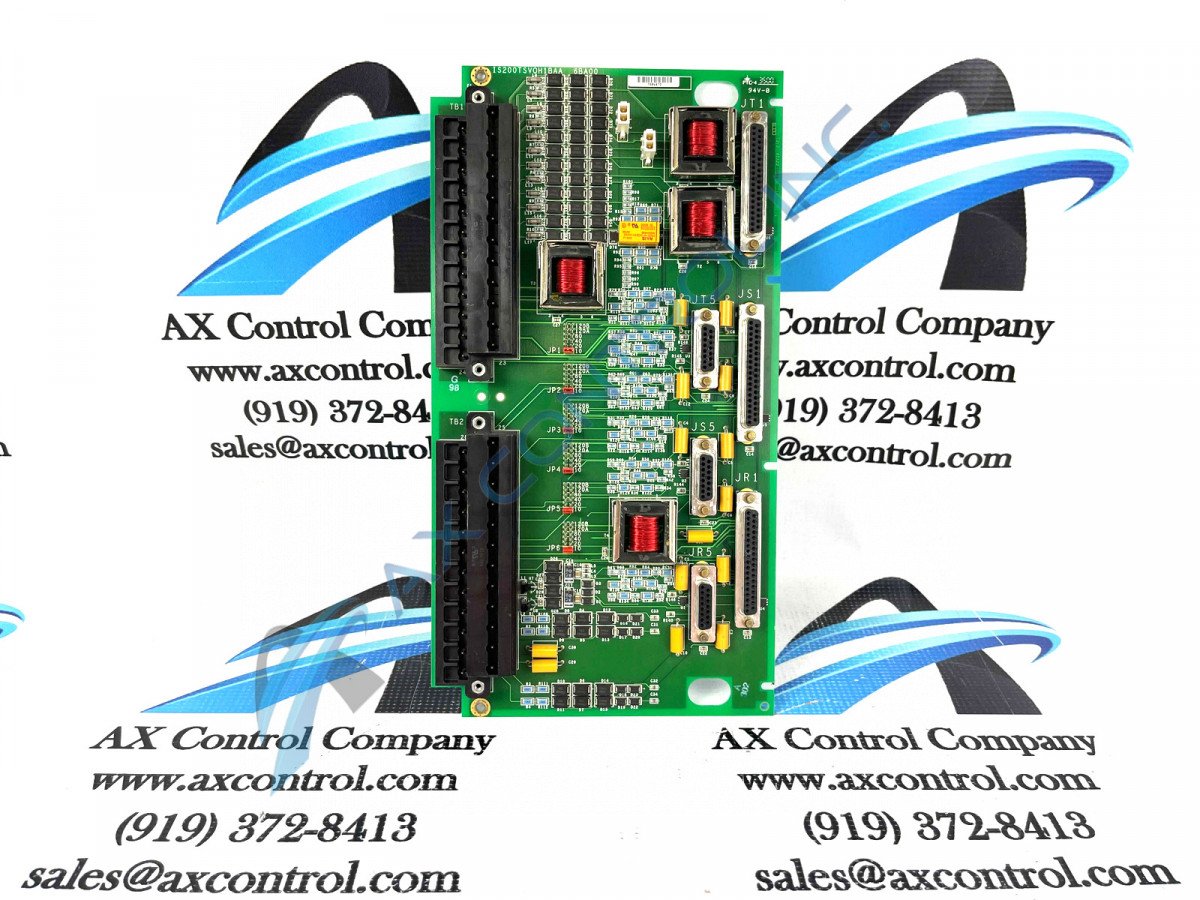

The IS200TSVOH1B is one of several TSVO termination boards available here at AX Control. These servo-valve termination boards from General Electric are used within the company’s Mark VI system. The Mark VI is one of the more advanced Speedtronic systems for the management of industrial gas and steam turbine systems; it has been used for over 20 years.
The IS200TSVOH1B uses barrier-type terminal blocks. These are mounted on one long board side. The board is capable of accepting inputs from two servo current sources through these two I/O channels. Each terminal block allows up to three LVDT or LVDR feedback sensor attachments (six total for the board.) These sensors can be high select, median select, or low select. Pulse rate inputs are between 2-14 kHz. If you need a board with these settings but using Box type terminals, please see our listings for DSVO boards.
The IS200TSVOH1B weighs in at just 2.00 pounds. The board will weigh more after it has been prepared for shipment due to the addition of internal and external boxing and padding, as well as anti-static wraps. We recommend the use of grounding straps when unboxing any static-sensitive component.
The IS200TSVOH1B board can be shipped to your location or picked up at ours. If you are local to our warehouse in central North Carolina and prefer the second option, let our team know when you call to place your order. We’ll have your components waiting for you when you arrive.
Use GE Speedtronic manuals and user guides for more information about this board.
